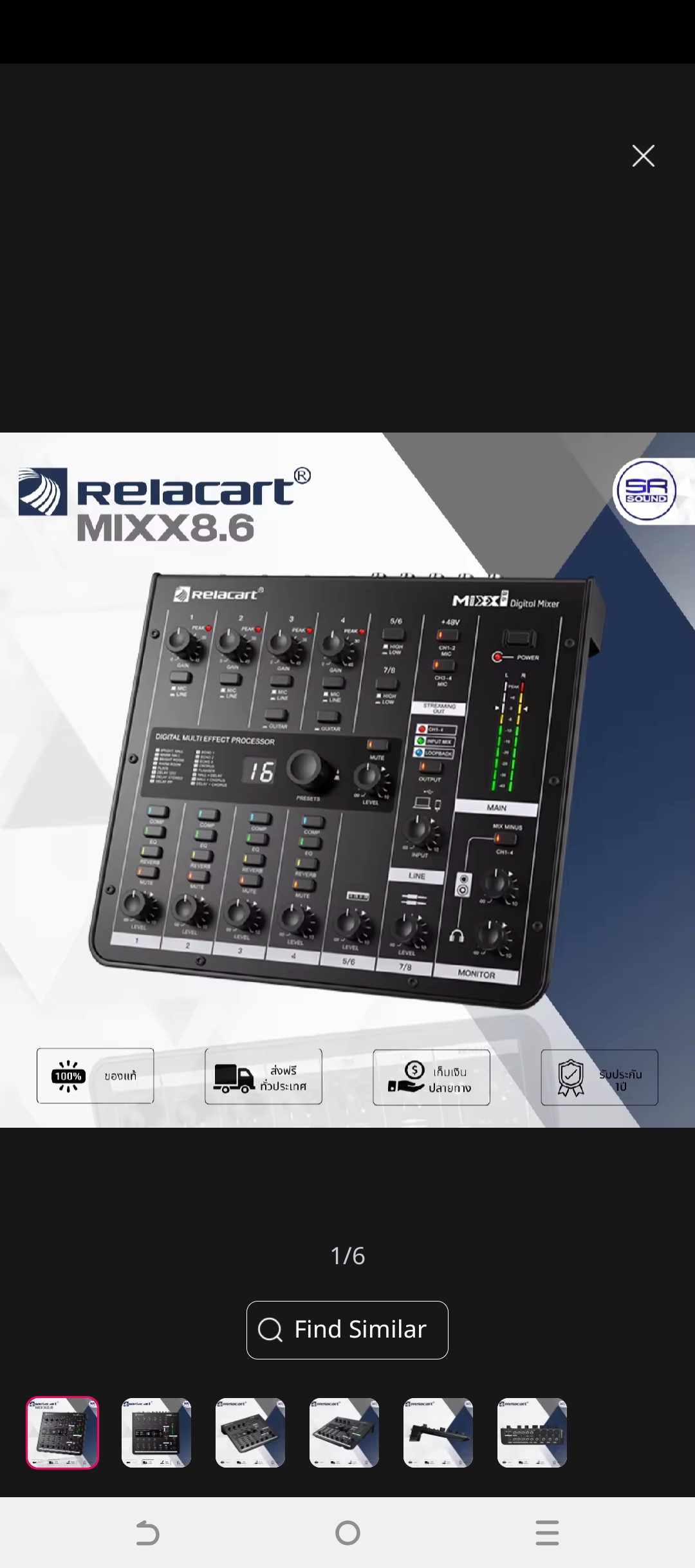

User image 6840f796e7941
NERO
April 7, 2025

Minta link utk download software nya?

Subscribe to Our Youtube Channel

Summary of Contents for RELACART MIXX 8.6

  • Page 1 Digital Mixer 100% recycled paper Installation and Operation www.relacart.com 100% papier recyclé...
  • Page 2: Table Of Contents

    DIGITAL MIXER DIGITAL MIXER Installation and Use of Software Contents Installation and Use of Software Operating System Requirements ········································································· 1 Operating System Requirements ············································································· 2 Application software download ················································································ Compatible system: Android / iOS / Windows Introduction ·········································································································· Software language: Chinese / English Product Introduction ····························································································...
  • Page 3: Introduction

    Dual TYPE-C data cable Product Introduction MIXX 8.6 digital mixer designed with 8 inputs and 6 outputs. Built-in digital audio processing functions, such as effector, EQ, compressor, etc. And it is equipped with a USB interface, which can transmit audio by mobile phones and computers. It has 16 types of digital reverb effects, which can be easily adjusted for various occasions with the encoder.
  • Page 4: Product Introduction

    DIGITAL MIXER DIGITAL MIXER Product Introduction PEAK indicator light: When the audio signal input is overloaded, the red light will light up; If it lights up red, please adjust the “GAIN” knob to the left to reduce MIXX8.6 (Digital Mixer) Front Panel the volume.
  • Page 5 DIGITAL MIXER DIGITAL MIXER HIGH/LOW attenuation button: Used to switch (on/off) the attenuation input on LOOPBACK: Mix the BGM or sound effects from the microphone/line jack on channels 5/6 and 7/8. Turning on ( ) this button will attenuate the sound input channel 1 to channel 4, channels 5/6, and 7/8, with the BGM or to this device.
  • Page 6: Rear Panel

    DIGITAL MIXER DIGITAL MIXER MIXX8.6 (Digital Mixer) Rear Panel STEREO output jack: Supports a phone type plug for connecting to other mixing consoles or recorders, and outputting mixed sound in stereo. The sound output from this socket will not be affected by the [ OUTPUT ] switch button STREAMING OUT or the speaker [ ] knob LINE 7/8 Input jack: Supports phone type plugs for connecting line signal devices,...
  • Page 7: Applying Effects

    DIGITAL MIXER DIGITAL MIXER Applying Effects Effect Program The MIXX8.6 comes with a high-quality internal signal processing effector, which is as advanced in technology as our famous Podcast+ effector. The applying effects Program Parameter Description (as described below) allows you to simulate sound effects in different playing environments.
  • Page 8: Quick Start Guide

    DIGITAL MIXER DIGITAL MIXER Quick Start Guide Connect your microphone Connect your musical instrument...
  • Page 9: Conncect To Your Electronic Keyboard Device

    DIGITAL MIXER DIGITAL MIXER Conncect to your electronic keyboard device Connect to your line input device...
  • Page 10: Connect To Your Active Speaker

    DIGITAL MIXER DIGITAL MIXER Connect to your active speaker Connect to your active monitor speaker...
  • Page 11: Connect To Your Headphone

    DIGITAL MIXER DIGITAL MIXER Connect to your Headphone Connect to your pedal switch...
  • Page 12: Connect To Your Mobile Phone Through An Audio Cable

    DIGITAL MIXER DIGITAL MIXER Connect to your mobile phone through an audio cable Connect your computer or smartphone through a data cable 5:30 中...
  • Page 13: Quick Guide

    DIGITAL MIXER DIGITAL MIXER Quick Guide 7. Adjust the LEVEL knob to the 3 o’clock position. CONNECTING SPEAKERS, MICROPHONES, INSTRUMENTS, ETC. 1. Turn off the power of all speakers, instruments, and other external devices connected to the audio mixer. 2. Refer to the connection example to connect speakers, microphones, and instruments. 8.
  • Page 14: Instructions For Using Control Software

    DIGITAL MIXER DIGITAL MIXER Instructions for using control software Control Page After the MI.AUDIO software is downloaded and installed, please connect the MIXX8.6 mixer to the USB interface of your smartphone or computer, open the MI.AUDIO software, select the MIXX8.6, and then enter the control page. Home page Click on the to access application settings, version information, and user guides.
  • Page 15: Compressor Settings

    DIGITAL MIXER DIGITAL MIXER Compressor Settings Equalizer settings Equalizer can adjust the effect of tone by enhancing and attenuating specific A compressor can reduce noise and increase quiet sound. By using these features, frequencies. reduce the difference between noise and quiet sound , the overall level of sound is more balanced, and the audio are easier to hear.
  • Page 16: Specification

    DIGITAL MIXER DIGITAL MIXER Specification PRECAUTIONS Please read carefully before proceeding Sample Rate: 24-bit, 48KHz Please keep this manual in a safe place for future refer - ence. Frequency Respond: 20Hz to 20KHz +0/-1dB ! T.H.D.: <0.1% WARNING Signal to Noise Ratio: 90dB Single channel max fader (A weighted) Always follow the basic precautions listed below to avoid the possibility of serious injury Dynamic Range:...
  • Page 17 DIGITAL MIXER DIGITAL MIXER ! CAUTION Connections Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property. These pre - cautions include, ● Before connecting the device to other devices, turn off the power for all devices. Before but are not limited to, the following: turning the power on or off for all devices, set all volume levels to minimum.
