RELACART MIXX16 Digital Mixer Manual
Product Introduction:
· MIXX16 is a digital mixer through a tablet computer application control, using Wi-Fi to connect, you
can mix in real time on the tablet devices from anywhere within the scope of wireless network.
· Featured 16 channels of studio-quality Onyx microphone preamps, 2 main output, 6 auxiliary
output.
·Adopt high performance 40 bit floating-point digital signal processor, 24 bit AD/DA converter.
·Ultra low-noise, high-headroom design.
Multi-touch control, flash visual feedback, and can be intuitive to see the complete frequency
·
response curve.
Input channel built-in 4 -band PEQ, high-pass filter, compressor, gate.
·
The main output and auxiliary channel with 31 bands of built-in graphic equalizer, limiter.
·
·Shared global reverb and delay effects.
Tuning process can be stored, the stored sound effect could be recalled in the corresponding
·
occasions, no need to reset the parameters.
· Each channel can edit their own names and icons for easy identification, no need to use label
sticker.
Digital signal processing, reducing signal noise accumulated during transmission, to achieve
·
high-quality signal transmission over long distances.
Built-in WI-FI module, no external router, use the tablet device can search Wi-Fi signal directly.
·
It support up to 10 devices to synchronized Wi-Fi control, allowing multiple engineers to
·
simultaneously control consoles.
MIXX16 digital mixer front panel (Pic 1)
1. PHONES: Stereo earphone monitor output socket and monitor volume control knob.
2. GAIN: 16 input signal gain control knob, maximum gain 60dB.
3. PEAK: Peak indicator: When the audio signal input is normal will light green; when the audio
signal input is overload will light red.

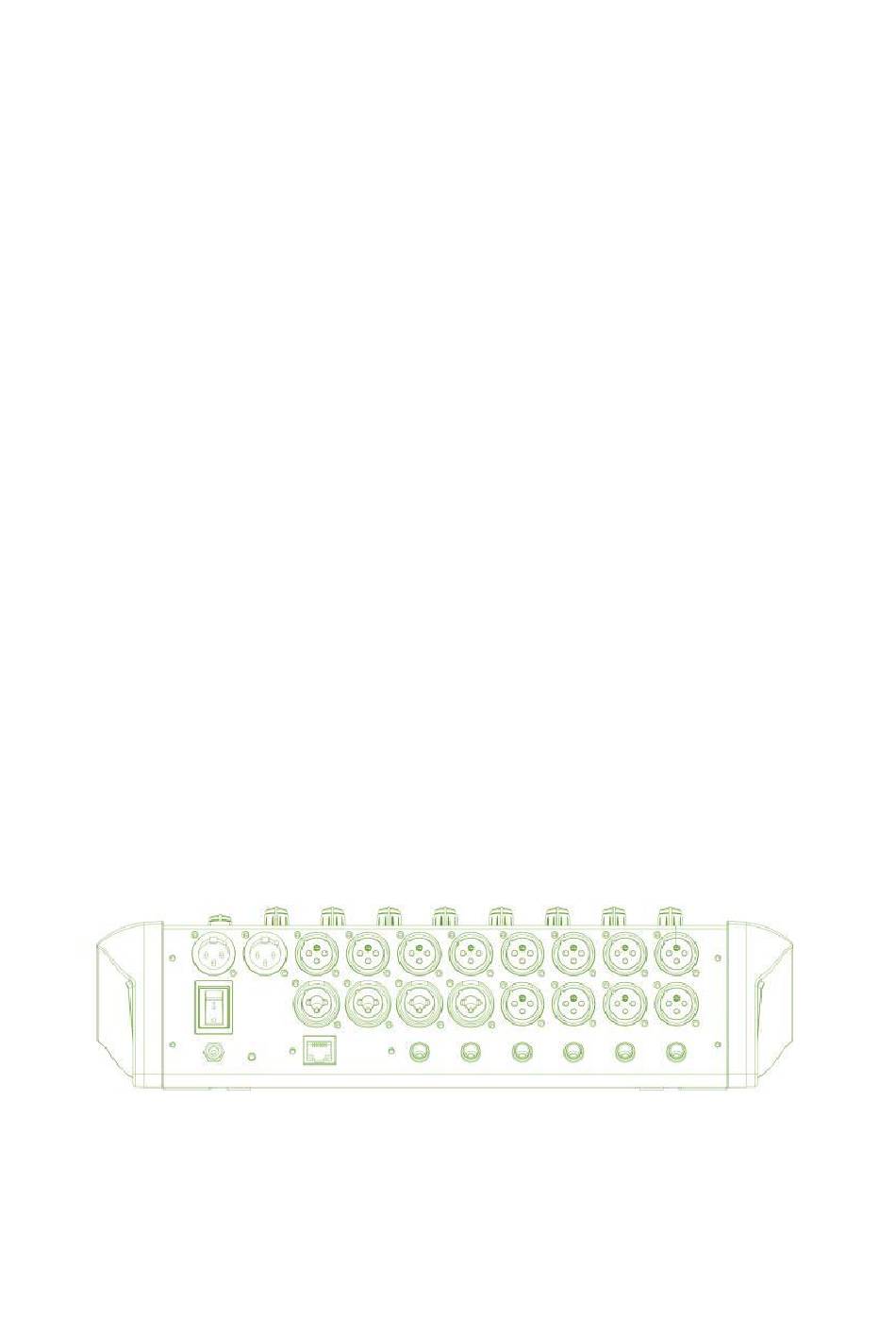

MIXX16 Digital mixer rear panel (Pic 2)
1.DC power input socket: rated voltage 12V/rate power 48W.
2.Power supply switch: I/O ship type switch, switch to I to connect the power supply, switch to O to shut off
the power.
3.LR Balanced output: mixer main output, connected to the main sound system.
4.Input Channel: 12 XLR type balanced input port +4 XLR compatible with 6.3 sockets input, all channels can
1
