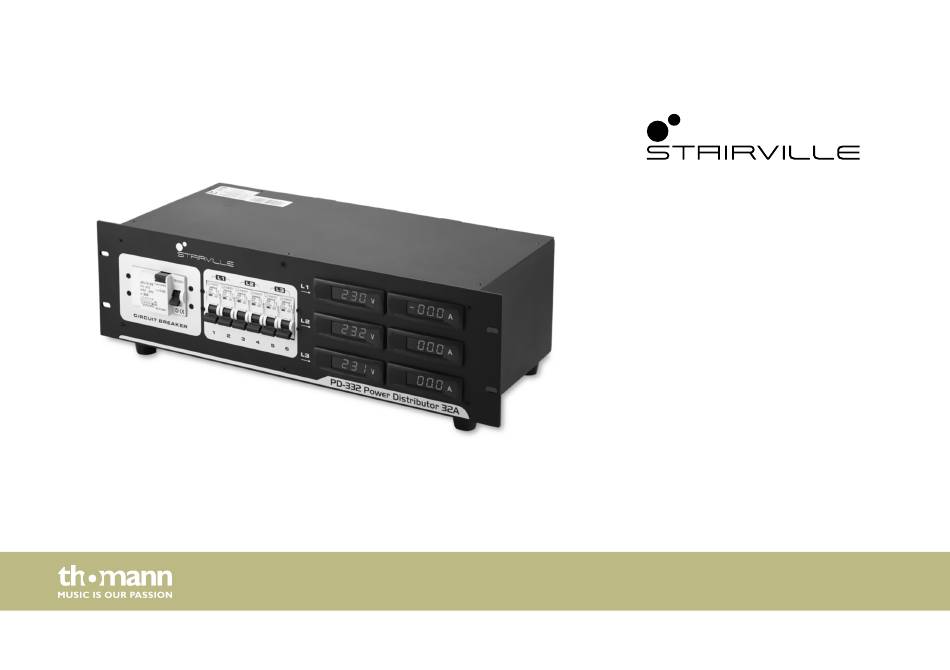

- Page 1 PD-332 power distributor user manual...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 01.02.2022, ID: 282202 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Performance characteristics......................... 9 Installation and operation........................10 Connectors and controls........................11 Technical specifications........................15 Protecting the environment......................16 PD-332... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner. - Page 5 General notes Warning signs Type of danger Warning – high-voltage. Warning – danger zone. PD-332...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is used to distribute electrical power to several connected consumers. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 7 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. DANGER! Electric shock caused by short-circuit Do not modify the mains cable or the plug.
- Page 8 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 9: Performance Characteristics
Performance characteristics Performance characteristics PD-332 Power distributor 32 A Digital display of voltage ("V") and current ("A") of each phase. Outputs – 6 × outlets with hinged lid – 1 × 5-pin CEE-outlets with hinged lid Circuit breaker with trip switch PD-332... -
Page 10: Installation And Operation
Installation and operation Installation and operation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 11: Connectors And Controls
Connectors and controls Connectors and controls PD-332 front view ö # PD-332... - Page 12 Connectors and controls 1 Push button to manually switch the Residual-current device (RCD). 2 Residual-current device (RCD). This device provides personal protection. If it detects differential or leakage currents it automatically disconnects the device from the mains. 3 L1 / L2 / L3 Circuit breakers 1 to 6 for the three phases L1 / L2 / L3 of the power distributor by which two devices with earthing pin plug each can be supplied.
- Page 13 Connectors and controls PD-332 rear view & RISK OF ELECTRIC SHOCK DO NOT OPEN PD-332...
- Page 14 Connectors and controls 5 Mains connection, supply voltage 400 V 50 Hz. 6 5-pin CEE-built-in outlets with hinged lid (32 A). 7 6 ×built-in outlets with hinged lid (each 16 A, corresponding to 32 A per phase). power distributor...
-
Page 15: Technical Specifications
Technical specifications Technical specifications Circuit breaker/device 32 A, 4-pin, 0.03 A Circuit breaker/phase 6 × 16 A Outputs 6 × outlets, 1 × CEE built-in socket Protection class IP 44 Power consumption 10 W Supply voltage 400 V 50 Hz Dimensions (W ×... -
Page 16: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 17 Notes PD-332...
- Page 18 Notes power distributor...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
