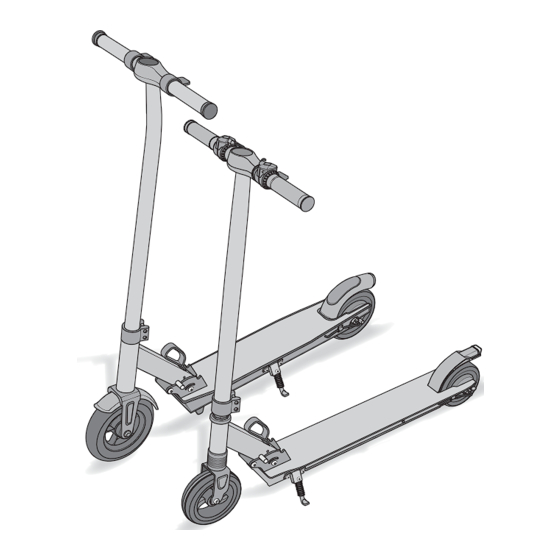

- Page 1 Owners Manual S6012AZ / S6012AZA S6011AZ / S6011AZA WARNING This manual contains important safety and use information. Keep this manual for future reference. • An adult must read this entire manual • Adult supervision is required at all times *Styles may vary...
-
Page 2: About This Manual
Congratulations on your new scooter! About This Manual It is important for you to understand your new scooter. Proper assembly and operation of your scooter is important for By reading this manual before you go out on your first ride, you’ll your safety and enjoyment. -
Page 3: Safety Warning Messages
Max Speed personal injury hazard. Failure to follow the warnings may result in damage to property, injury, or death. Tone 2 100 kg / 220 lb 25 km/h / 15.5 mph This manual contains many Warnings and Cautions concerning the consequences of failure to follow safety warnings. - Page 4 WARNING • Read and understand all product & safety warnings • Persons with the following conditions shall be cautioned not to operate: Those with heart conditions; pregnant women; persons • Do not to modify unit from original design and configuration. with head, back, or neck ailments, or prior surgeries to those •...
-
Page 5: Personal Safety
Personal Safety Helmet Use Important! Many states have passed helmet laws regarding WARNING children. Make sure you know your states helmet laws. It is your job to enforce these rules with your children. Even if your state Riding a scooter without protective gear, clothing, shoes, or a does not have a children’s helmet law, it is recommended that helmet may result in serious injury or death. -
Page 6: Battery Warnings
• Seek immediate medical assistance if you are exposed • Using the Schwinn rechargeable batteries and charger for to any substance that is emitted from the battery. any other product may result in overheating, fire or •... - Page 7 Handlebar washer Power Mode button button Brake lever Accelerator Steer tube lever Rear wheel Rear light Battery charger Brake 5 mm hex wrench (included) Deck Folding lever Collar clamp Kickstand Charge port (Tone 2) Charge port (Tone 3) *Styles may vary...
-
Page 8: Scooter Assembly
Scooter Assembly Unfold the Scooter ❷ Push folding lever down to release bolt from folded slot. ❸ Rotate the steer tube up until bolt on the folding mechanism is ❶ The bolt on the folding mechanism will be in the folded slot. in the unfolded slot. - Page 9 Attach the Handlebar Grips ❷ ❶ ❹ ❶ ❷ ❹ Ensure the folding handle is locked by pushing the handle ❶ Place a washer over the ends of each handlebar grip. forward towards the frame. ❷ Twist each handlebar grip into the openings on each side of the Tip! To fold your scooter again after use, place your foot on control panel.
- Page 10 Before you ride: • Check that the brake can make contact with the wheel • Check all of the locking nuts are firmly tightened • Check the tires are filled at the proper air pressure of 36 PSI (Tone 2 model only)
-
Page 11: Riding Safely
Riding Safely • Never hitch on to another vehicle and pull anyone or anything. • Do not ride indoors or on surfaces that could be damaged such as WARNING carpet or flooring. Road Conditions Riding the scooter in unsafe conditions (i.e.: at night), in an unsafe manner, or disregarding traffic laws may result in an unexpected •... - Page 12 NOTICE • The average time to charge the battery is 3.5 hours. Failure to • Only use the charger provided by Schwinn: follow the instructions regarding charging the battery may result Charger Model: Tone3: CP2915, Tone2: CP4215 in permanent damage to the battery and void the warranty.
- Page 13 Charge the Battery ❸ Note: The charger light Regular charge No more than is red when charging 3.5 hours 24 hours and turns green when charging is complete. Tone 3 Charge Port ❶ ❷ Tone 2 Charge Port...
- Page 14 Scooter Control Panel Get to know the functions of the control panel before riding the scooter. ❶ ❷ ❸ ❹ ❺ ❻ Key/Lever Function ❶ Power key Press 2 seconds to turn the scooter ON or OFF. ❷ Mode key When the scooter is on, switch the speed modes to low, middle or high speed.
- Page 15 Starting the scooter ❶ To turn the scooter on press the power key for 2 seconds. ❷ Toggle through the Mode key to choose your speed range. Your speed will appear in the center of the screen. ❸ Press the accelerate lever and kick to start.
-
Page 16: Basic Maintenance
Maintenance Basic Maintenance WARNING The following procedures will help you maintain your scooter for Proper maintenance is critical to the performance and safe years of enjoyable riding. operation of the scooter. Always inspect the scooter and conduct necessary maintenance before each use of the scooter. Failure to •... -
Page 17: Battery Disposal
Battery Disposal Scooter Security You just bought a new scooter! Don’t lose it. Lock your scooter to Important! Recycle the dead battery responsibly. The battery contains chemicals and must be disposed of properly and legally. help prevent possible theft: It is illegal in most areas to incinerate lead acid batteries or dispose •... - Page 18 Removing the battery ❹ Disconnect the battery connectors and remove the battery. ❶ Working from the bottom of the scooter. ❺ Dispose of the battery to a recycling facility. ❷ Remove the screws from the battery compartment. ❸ Remove the battery cover. ❺...
- Page 19 Service Do not return this product to the place of purchase. If your scooter needs service, repairs or replacement parts, please have the model and serial number available and call: UNITED STATES Pacific Cycle Consumer Relations Hours: 8:00 am – 5:00 pm (CST) Monday - Friday Phone: 1-800-626-2811 Email: customerservice@pacific-cycle.com CANADA...
-
Page 20: Warranty
Warranty LIMITED WARRANTY AND POLICY ON REPLACEMENT PROCEDURES & RESPONSIBILITIES Your purchase includes the following warranty which is in lieu of all other express warranties. This warranty is extended only to the initial consumer purchaser. No warranty registration is required. This warranty gives you specific legal rights and you may have other rights which vary from state to state. FRAME Frames are guaranteed against manufacturing defects for a period of 1 year.
