Summary of Contents for Adexa DWASH100M

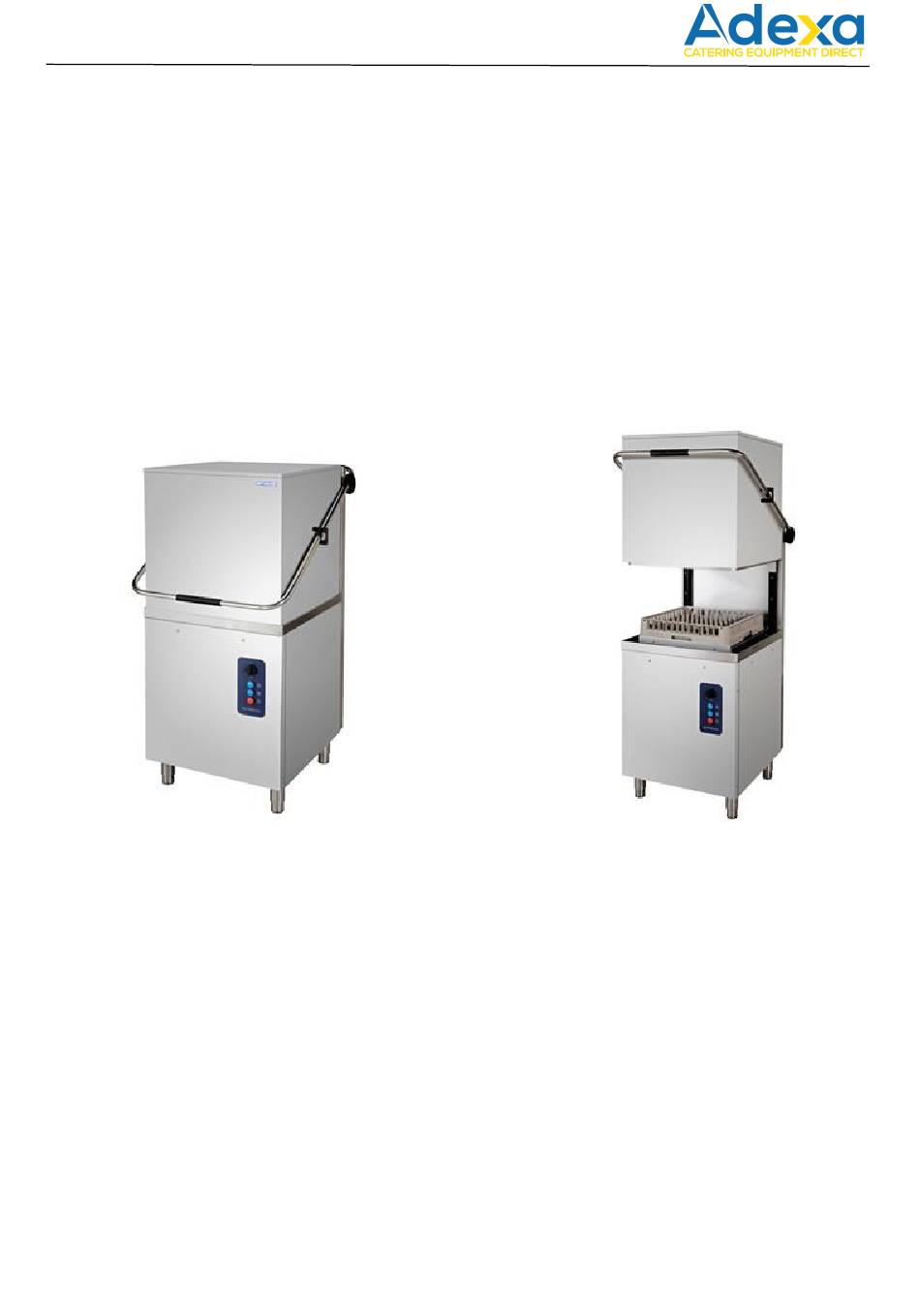

- Page 1 DISHWASHER INSTRUCTION MANUAL DWASH100M – DWASH100T – DWASH100MXL- DWASH100TXL...
-
Page 2: Table Of Contents
CONTENTS AIMS AND SCOPE RESPONSIBILITIES SIGNS TECHNICAL DATA (BASIC FEATURES) TRANSPORTATION AND INSTALLATION GENERAL PRINCIPLES INFORMATIONS AND EQUIPMENTS RELATED TO PRODUCT DESCRIPTION OF DEVICE WITH EXPLANATIONS REPLACING THE DEVICE AND PREPARING FOR START UP INSTALLATION BEFORE ASSEMBLING PREPARATION FOR START UP FINAL CHECK BEFORE START UP START UP ELECTRICAL DIAGRAM... -
Page 3: Aims And Scope
AIMS AND SCOPE Descriptions for safe use and maintenance of the product RESPONSIBILITIES Responsibilities of Product’s Owner: The product’s owner is responsible for applying of safety rules stated in this Instruction Manual or getting them applied by delegating his authorities and risks, which may arise due to not applying. The product’s owner is also responsible for the periodical maintenance of the machine. -
Page 4: Technical Data (Basic Features)
4. TECHNICAL DATA 4 / 19... -
Page 5: Transportation And Installation
DWASH100 MODEL CAPACITY PLATES 60’ 1080 GLASSES 2880 STANDART SEPET BASKET FOR 18 PLATES 50X50 GLASS-CUP BASKET 50X50 CUTLERY BASKET 50X50 ELECTRIC VOLTAGE 380-400 AC V, 3~ , 50Hz WASHING TANK HEATER 3000 RINSING WATER HEATER 9000 MAXIMUM POWER 13100 MAIN SUPPLY CABLE mm²... -
Page 6: General Principles
6. GENERAL PRINCIPLES The users agree and accept to be in conformity with all requirements included in using manual, otherwise the machine shall be deemed OUT OF GUARANTEE COVERAGE. The user also accepts that he/she was fully informed about the limited guarantee liability. Any living body or any object should not be placed on machines. -
Page 7: Description Of Device With Explanations
7. COMING THINGS TOGETHER WITH THE PRODUCT A. Description Catalogue B. User/Maintenance/Assembling Manual D. Water supplying hose E. Drainage hose to sewer system F. Basket Dear Customers, please check the above written auxiliary equipment to be given with the machine on delivery. If you notice any damage or loss occurred during the transportation then you should request the transporter to issue any written report including the relevant damage or loss. - Page 8 A- UPPER PANEL F- TABLE (OPTIONEL) B- HANDLE C- LOWER BODY D- CONTROL PANEL E- BASKETS 8 / 19...
-
Page 9: Replacing The Device And Preparing For Start Up
9. REPLACING THE DEVICE AND PREPARING FOR START UP INSTALLATION BEFORE ASSEMBLING 10.5 9 / 19... -
Page 10: Preparation For Start Up
DWASH100 : A – Fresh water inlet B – Power cord C – Dirty water outlet D – Connection of the machine to grounding line that has independently and adequately technical feature. E – Tap with connector to supply the pressured (202 – 404 kpa) and hot water (45-50 ºC).(If the water hardness is higher than 10 –15ºF, softening water device must be used.) F–... -
Page 11: Start Up
10. START UP Have a specialist electrician your device working 380-400 V connect to the K-automat fuses group. Device must not be operated without being made adequate grounding and from the electricity source, which do not have leak current relay. Water supply connection must be made and its valve must be open Water drainage connection must be made. - Page 12 CONTROL PANEL Full automatic washing cycle at 55 C with a choice of three different programs from 1 to 2 minutes. A : Switch Off B : Program 1 C : Program 2 D : AW Program (Washing) E :Program 3 F : AP Program (Rinsine) G : Wash Ready H : Wash On...
-
Page 13: Electrical Diagram
11. ELECTRIC DIAGRAM 13 / 19... -
Page 14: Maintenance And Cleaning
12. MAINTANCE AND CLEANING Implement the following periodical maintenance so that the product should work in safe and long life DAILY MAINTANCE When the water in washing tank gets dirty, it must be replaced by fresh water. For this purpose, bring the “0-1” switch of the machine into “0”... -
Page 15: Safe Life
13. SAFE LIFE The safe life of the product is 5 years. 14. INTERVENTION AFTER FAILURE FAILURES / CAUSES • Device is not working • Check whether there is electric supply to the device. • Be sure that there is electric supply to the stand by and start switchs •... - Page 16 • Check whether water temperature in washing tank is correct or not. • There is no drying: (Models with drying system) • Be sure that the amount of polisher injected to the machine is correct • Check the thermostat of rinsing water is set to 80 ºC. •...
-
Page 17: Spare Parts List
15. SPARE PARTS LIST DESCRIPTION DESCRIPTION DESCRIPTION Heating Element Pulley Signal Lamp Handle Holder Thermic Filter Handle Contactor Shelf Timer Contactor Foot Switch Timer knob Fascia Pressure Switch Fitting Spring Switch with Pulley Fitting Tension Rod Limiter Connector Bearing Timer Spindle Socket Rail... - Page 18 PARÇA ADI PARÇA ADI PARÇA ADI PARÇA ADI Rinse Line Nozzle Drainer Heating Element Shaft Drain Pipe Solenoid Valve Suction Filter Nozzle Limiter Boiler Pressure Pot Wash Pump Inlet Hose Body Flange Hose Faucet Suction Filter Hose Wash Arm Bottom Clip Rinse Arm Clip...
