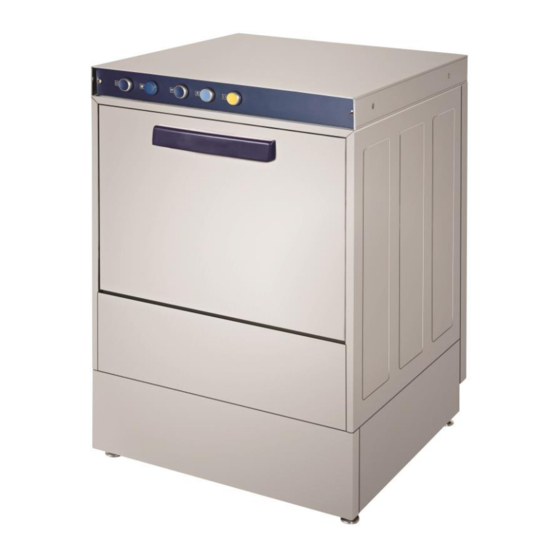

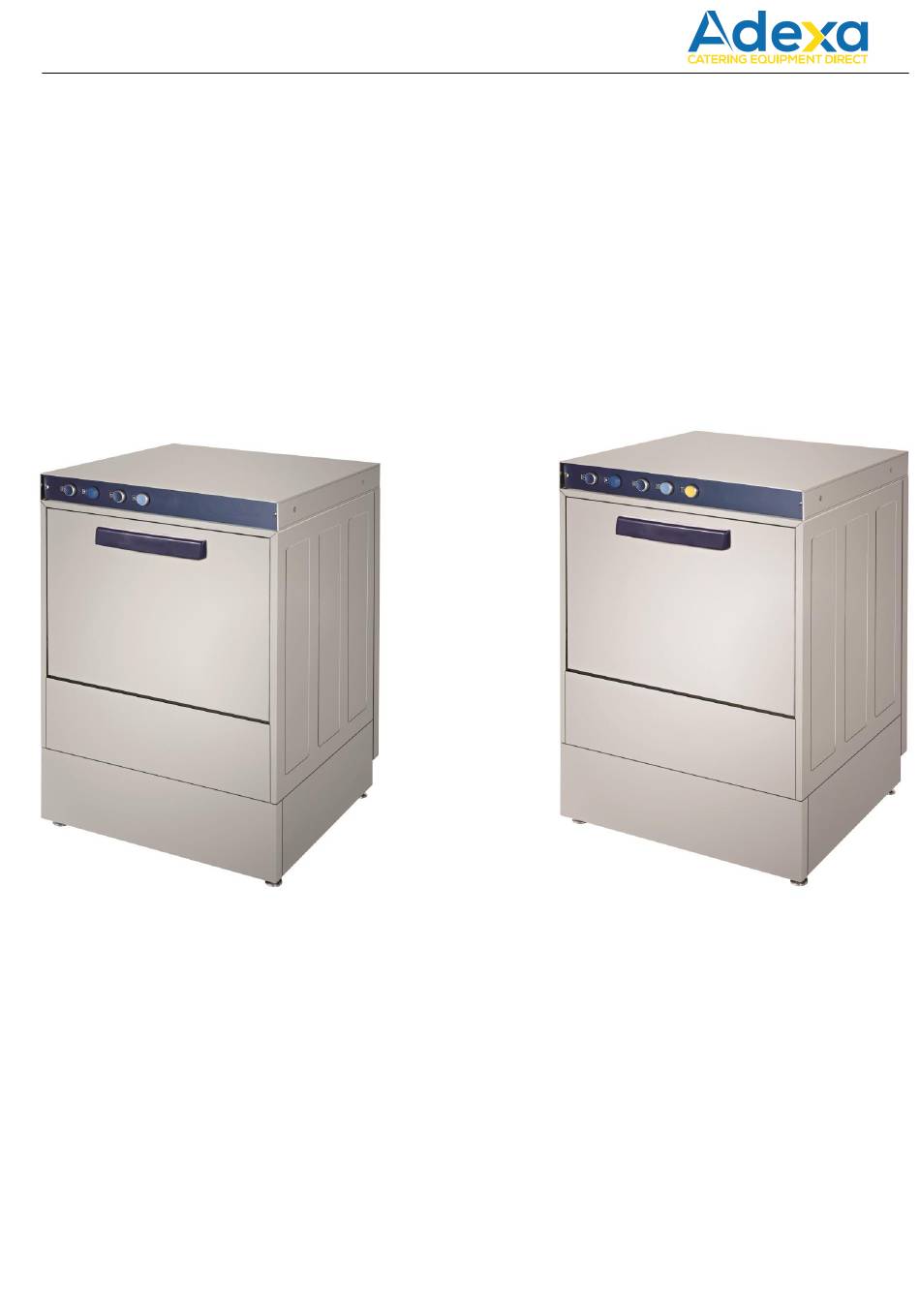

- Page 1 DISHWASHER INSTRUCTION MANUAL DWASH50 – DWASH50DP – DWASH50XL...
-
Page 2: Table Of Contents
CONTENTS AIMS AND SCOPE RESPONSIBILITIES SIGNS TECHNICAL DATA (BASIC FEATURES) TRANSPORTATION AND INSTALLATION GENERAL PRINCIPLES INFORMATIONS AND EQUIPMENTS RELATED TO PRODUCT DESCRIPTION OF DEVICE WITH EXPLANATIONS REPLACING THE DEVICE AND PREPARING FOR START UP INSTALLATION BEFORE ASSEMBLING PREPARATION FOR START UP FINAL CHECK BEFORE START UP START UP ELECTRICAL DIAGRAM... -
Page 3: Aims And Scope
1. AIMS AND SCOPE Descriptions for safe use and maintenance of the product 2. RESPONSIBILITIES Responsibilities of Product’s Owner: The product’s owner is responsible for applying of safety rules stated in this Instruction Manual or getting them applied by delegating his authorities and risks, which may arise due to not applying. The product’s owner is also responsible for the periodical maintenance of the machine. -
Page 4: Technical Data (Basic Features)
TECHNICAL DATA 4 / 17... -
Page 5: Transportation And Installation
MODEL DW500 (NP) CAPACITY PLATES 60’ BASKET BASKET FOR 16 PLATES 50X50 GLASS-CUP BASKET 50X50 ELECTRIC VOLTAGE 220-230 AC V, 3~ N , 50Hz WASHING TANK HEATER 2500 RINSING WATER HEATER 4500 MAXIMUM POWER 5000 MAIN SUPPLY CABLE mm² 3X2.5 RNF TYPE FEED WATER WATER INLET PRESSURE WATER HARDNESS... -
Page 6: General Principles
6. GENERAL PRINCIPLES The users agree and accept to be in conformity with all requirements included in using manual, otherwise the machine shall be deemed OUT OF GUARANTEE COVERAGE. The user also accepts that he/she was fully informed about the limited guarantee liability. Any living body or any object should not be placed on machines. -
Page 7: Description Of Device With Explanations
COMING THINGS TOGETHER WITH THE PRODUCT A. Description Catalogue B. User/Maintenance/Assembling Manual C. Water supplying hose D. Drainage hose to sewer system E. Basket Dear Customers, please check the above written auxiliary equipment to be given with the machine on delivery. If you notice any damage or loss occurred during the transportation then you should request the transporter to issue any written report including the relevant damage or loss. -
Page 8: Preparation For Start Up
PREPARATION FOR START UP Open the packing of the device and remove all protective tapes. Opening the cover of the device, take out the instruction manual. Place the devices with adjustable legs by adjusting their legs and the device with fixed legs by aligning the ground. Connect the elbowed part of the supply hose the solenoid valve of the device,the other end,to the tap. - Page 9 Have the detergent firm dosing apparatus to supply polisher into your machine connect. Check the water supply hose and water drainage connection. Fix overflow pipe into its place. Open the valve of pressured hot water supply. Place the basket, in which you place the things to be washed, in machine. Shut the door of the machine.
-
Page 10: Electrical Diagram
11. ELECTRIC DIAGRAM 10 / 17... -
Page 11: Maintenance And Cleaning
12. MAINTANCE AND CLEANING Implement the following periodical maintenance so that the product should work in safe and long life DAILY MAINTANCE When the water in washing tank gets dirty, it must be replaced by fresh water. For this purpose, bring the “0-1” switch of the machine into “0”... -
Page 12: Safe Life
13. SAFE LIFE The safe life of the product is 5 years. 14. INTERVENTION AFTER FAILURE FAILURES / CAUSES • Device is not working • Check whether there is electric supply to the device. • Be sure that there is electric supply to the stand by and start switchs •... - Page 13 • Be sure that the nozzles of washing buttery are clean • Be sure that adequate amount of detergent is delivered to the machine. • Selected washing program is very short due to the fact that the pots are dirty •...
-
Page 14: Spare Parts List
15. SPARE PARTS LIST DESCRIPTION DESCRIPTION Door Contactor Handle Pressure Switch Foot Pipe for pressure switch Shaft & Shaft Bearing Connector Lock Fascia Switch Plastics Rubber Switch Door Stop Signal Lamp Heating Element On/Off Switch On/Off Switch Timer M48 14 / 17... - Page 15 DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION Wash Pump Flange Nozzle Shaft Flange Pressure Pot Suction Filter Nozzle Hose Amplifier Nozzle Hose Thermostat Shaft Hose Limiter Bearing Hose Clip Gasket Flange Drain Hose Clip Body Filter Heating Element Clip Body Bottom Rinseaid Dispenser Clip Boiler Clip...
