INSTALLATION & OPERATING INSTRUCTIONS
OF 6VK SAFETY PILOT GAS REMOTE CONTROL VALVE KITS FOR VENTED LOG SET FIREPLACE
IF YOU CAN NOT READ & UNDERSTAND THE INSTRUCTIONS, DO NOT ATTEMPT TO INSTALL OR OPERATE.

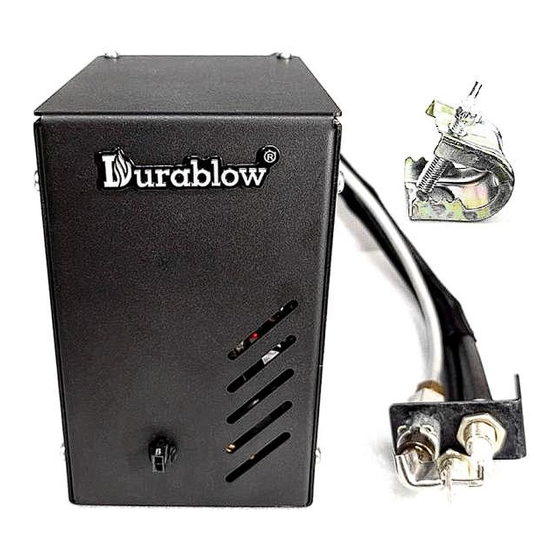

6VK Valve Kit
BOX INCLUDES: 6VK Valve Kit, WiFi Smart Home Control Box, Flex Line, Damper Clamp, 3/8"
to 1/2" Flare Adapter, Valve Kit Instructions.
READING TIME: 5 ~ 10 mins.
NOTICE: WiFi 2.4GHz only (5GHz is NOT supported).
Please leave these instructions for the consumer. Retain for future reference.
These smart home control box, valve kit and parts are not interchangeable with other versions,
models, brands. Burner, burner pan, inlet gas line, logs are not included.
IMPORTANT: Read these instructions carefully before starting installation of your log set.
Children should be carefully supervised when they are in same room as the appliance located.
FOR YOUR SAFETY: Do NOT store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance. Be sure the Flue Damper and Glass Doors are
fully open when operating any vented gas log set.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Refer to this manual for assistance or for additional information
consult a qualified installer, service agency or gas supplier.
WHAT TO DO IF YOU SMELL GAS:
- Do NOT try to light the appliance.
- Do NOT touch any electrical switch.
- Do NOT use any phone in your building.
- Immediately call you gas supplier from a neighbor's phone. Follow the gas suppliers instructions.
- If you cannot reach your gas supplier call the fire department.
©2022 Durablow Control Systems Limited
DURABLOW CONTROL SYSTEMS LIMITED
by
WiFi Smart Home
Control Box
INSTALLATION TIME: 10 ~ 20 mins.
Durablow.com
info@payandpack.com
MODELS:
6VK-SH3001-NG
6VK-SH3001-LP
6VK-SH3001-RH-NG
6VK-SH3001-RH-LP
6VK-SH3002-NG
6VK-SH3002-LP
6VK-SH3002-RH-NG
6VK-SH3002-RH-LP
REV.08/11/22
Page
1 / 8
Advertisement
Table of Contents
Related Manuals for Durablow 6VK-SH3001-NG
Summary of Contents for Durablow 6VK-SH3001-NG
- Page 1 - Do NOT use any phone in your building. - Immediately call you gas supplier from a neighbor's phone. Follow the gas suppliers instructions. - If you cannot reach your gas supplier call the fire department. ©2022 Durablow Control Systems Limited Durablow.com info@payandpack.com REV.08/11/22...
- Page 2 (11)When the pilot is operating, check pilot fittings to make sure no gas leakage. (12)Reinstate the log grate and logs. (13)Install included Damper Clamp, which allows damper to remain slightly open to allow the pilot gases to vent. ©2022 Durablow Control Systems Limited Durablow.com info@payandpack.com REV.08/11/22...
- Page 3 Connect the gas supply line to the NG / LPG gas supply, and connect another end of the line to the gas inlet on Durablow valve kit. (3) Refer to the section “I. FOR FIREPLACE WITH EXISTING LOG SET” above, and follow steps (5) to (11).
- Page 4 Figure 4 III. PRE-ASSEMBLED PARTS IN VALVE KIT: The Durablow valve kit is pre-assembled with: Gas Valve, Electronic IPI Control Module, Pilot Assembly + Tubing + Wiring, Battery Pack, in a real Stainless Steel #304 housing. (Figure 5) CAUTION: Do NOT disassemble, modify or remove any screws and components.
- Page 5 Find the black signal wire with plug from the black WiFi Smart Home Control Box (ex. Durablow® SH3001, SH3002...). Insert the plug of signal wire into the socket on the front panel of 6VK valve kit. (Figure 8) Locate the WiFi Smart Home Control Box away from heat and make sure there is no metal obstacle in between the control box and WiFi router.
- Page 6 1. This control box is compatible with WiFi 2.4GHz only (5GHz is NOT supported). 2. Keep this control box, your smart phone and WiFi router as closer as possible to each other when pairing via WiFi. Any questions, please email us. info@payandpack.com ©2022 Durablow Control Systems Limited Durablow.com info@payandpack.com REV.08/11/22 Page...
- Page 7 Durablow’s decision. Replacement parts will be available at NO charges and free-shipping to users during warranty. If Durablow does not have the parts for a certain model, then a replacement system will be provided. The owner must provide a bill of sale, order ID or payment record which should be kept to verify purchase date and establish warranty period.
- Page 8 ANSWER: No. Since the gas valve and pilot orifice are different, also modification by user is not allowed for safety reason. We recommend purchasing corresponding Durablow valve kit models meeting your needs & gas supply type. For example: There are two models of 6VK-SH3001 series which are the NG model (6VK-SH3001-NG), and the LPG model (6VK-SH3001-LP).
