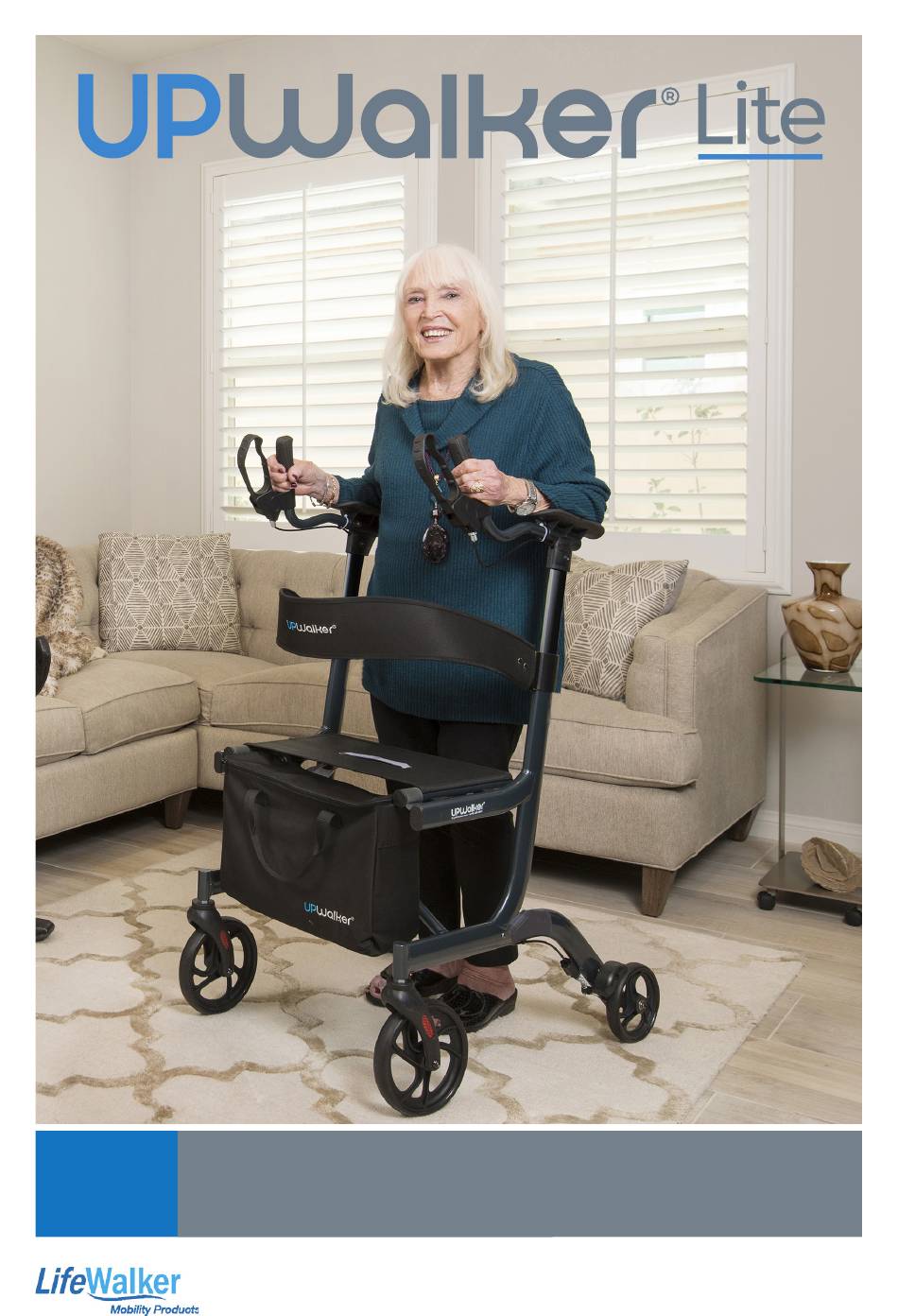

- Page 1 K n o c k- D o w n ( K D ) MODEL U S E R G U I D E # i100KD I100KD1A1 UPWalker Lite is produced by LifeWalker, a leader in upright mobility.
- Page 2 DO NOT exceed 300 lb (136 kg) weight limit. • User assistance is recommended for customers with fall risk. • DO NOT use the UPWalker Lite if there is apparent damage or if any parts are missing. • Care should be taken to ensure that height adjustment locks, handles, brakes or any other functional or moving parts are in good working order before operation.
- Page 3 Preparing Your UPWalker I100KD For Use A. Remove the UPWalker Lite I100KD frame and bags with parts from the box. B. With the UPWalker standing in an upright position unfold the lower frame by pushing the rear wheels out and to the...
- Page 4 Preparing Your UPWalker I100KD For Use Insert the finger bolts (Fig 4) and tighten by hand until the bolt is seated against the aluminum and the frame is secure (firm/solid) without movement (Fig 5 both sides). C. Lift up the front portion of the UPWalker frame and insert the front fork/wheels until a click is heard and wheels sit firmly against the frame (Fig 6).
- Page 5 Preparing Your UPWalker I100KD For Use D. Rotate the handles on top of the UPWalker 180 degrees with handles facing upright and slightly inward 10 degrees until the brass button pops into opening (Fig 8). The holes should be aligned so that the finger bolts can be inserted into the side of the armrest supports securing the handles (Fig 9).

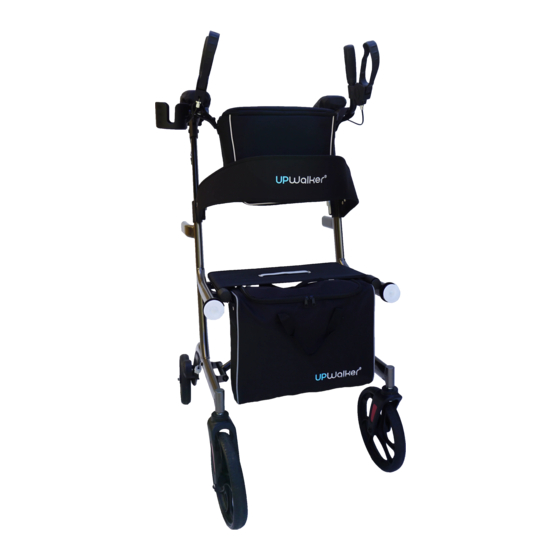

- Page 6 UPWalker Lite I100KD Product Features Handgrip 8. Front wheel 2. Parking/hand brake 9. Seat 3. Armrest pad 10. Seat rail 4. Height adjustment tube 11. Backrest 5. Height adjustment lock 12. Personal item bag 6. Rear wheel 13. Beverage holder...
- Page 7 Opening the UPWalker Lite I100KD Place the UPWalker Lite on all four wheels on a level floor (Figure 1). Standing behind the unit, hold each side bars and move outward in opposite directions to open frame (Figure 2). Complete the process by...
-
Page 8: Armrest Height Adjustment
The armrests should be set at a height that is high enough that you feel support under your forearms when standing upright inside the UPWalker Lite but not so high as to cause your shoulders to “hunch.” Set the armrests at the same height and put... - Page 9 Attaching / Removing the Backrest With the logo side of the backrest upright and facing the front of the UPWalker Lite, slide the T-slot on the end of the backrest onto the respective mating T-ridge on the front of the frame under the armrests (Figure 8).
- Page 10 Attaching / Removing the Beverage Holder The beverage holder can be attached to either one of the handgrip tubes. First, unscrew the knob on U-shaped tube clamp and remove the beverage holder from the U-clamp. Then slide “U” over handgrip tube close to armrest pad with hole on bottom and flat side of “U”...
-
Page 11: Adjusting Brakes
Using Brakes / Parking Brakes To apply the brakes while walking with the UPWalker Lite, pull both brake handles evenly toward you (Figure 12). To set the parking brakes, while using one hand to hold the handgrip use the other hand to push the brake handle forward until it clicks in locked position (Figure 13). - Page 12 Adjusting Brakes (contd.) Advanced Adjustments: If this adjustment does not achieve the desired braking strength, use the adjustment option on the brake handle end of the brake cable (Figure 16). If the brakes are too loose, use your fingers or pliers to turn the barrel adjuster nut counterclockwise a half rotation at a time until the brake functions as expected.
- Page 13 Sitting in your UPWalker Lite I100KD To sit on the seat, set the parking brakes with the UPWalker Lite positioned on a level surface. Sit with legs facing the rear using the backrest for support. You may sit with the armrests in either a raised or lowered position depending on your preference.
-
Page 14: Folding And Transporting
LifeWalker Mobility Products stands firmly behind our commitment to provide premium quality products. Our standard warranties represent our confidence in the materials and workmanship of your new UPWalker Lite. The frame is warrantied to be free from defects in material and workmanship,... -
Page 15: Customer Support
Customer Support For customer support on the purchase, use, maintenance and repair of your UPWalker Lite, please contact LifeWalker Customer Service at: (877) 488-0822 or info@lifewalkermobility.com When contacting us, please have available the following information: • The date of your purchase and form of payment.
