Quick Links

PURPLE LEAF
Assembly and Operation Manual
Cantilever Umbrella
CLASSIC
©Copyright 2016-2023 Purple Leaf Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CLASSIC and is the answer not in the manual?

Questions and answers

Paul Stover
May 21, 2025

Why won’t by rotating base turn when the lever is released

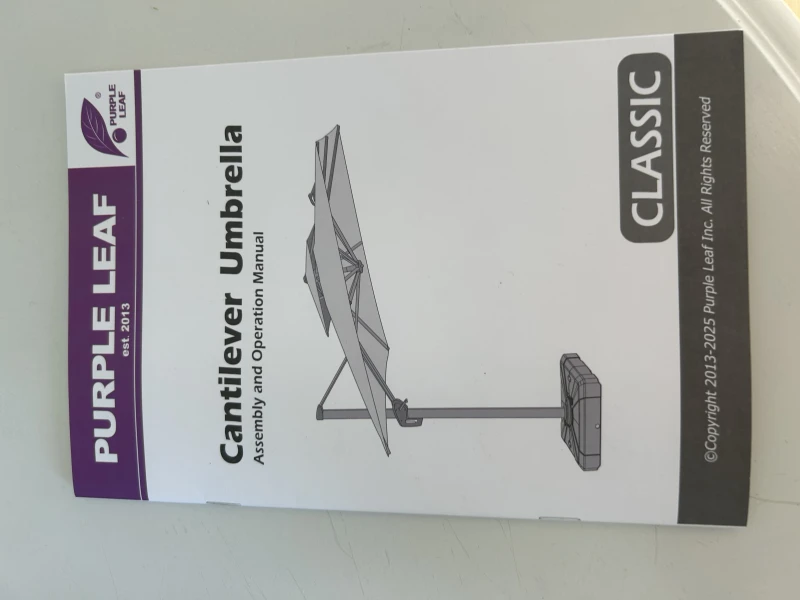

User image 682e45c2077ee
1 comments:
Mr. Anderson
May 24, 2025

The rotating base of the PURPLE LEAF CLASSIC may not turn when the lever is released due to loose or damaged parts, an unbalanced base, or buildup such as rust or debris around the mechanism. Regular maintenance like tightening bolts, cleaning, and lubricating moving parts is necessary to ensure smooth operation.

This answer is automatically generated

Cindy Harden
May 18, 2025

Are replacement parts available for the 12’ square cantilever double top umbrella? We had a thunderstorm with extremely high winds that turned our umbrella over and broke two of the ribs.

1 comments:
Mr. Anderson
May 23, 2025

Yes, replacement parts are available for the PURPLE LEAF CLASSIC 12’ square cantilever double top umbrella. A replacement base tube for the double top cantilever umbrella is listed as available.

This answer is automatically generated

Jane glenn
February 28, 2025

What base should I buy for 11 feet round

User image 67c233aea8167
1 comments:
Mr. Anderson
May 14, 2025

The recommended base for a PURPLE LEAF CLASSIC 11 feet round umbrella is an inground base or a baseplate, both sold separately. The base should be installed on a level and sturdy location to ensure stability and proper use.

This answer is automatically generated

Dan
May 31, 2025

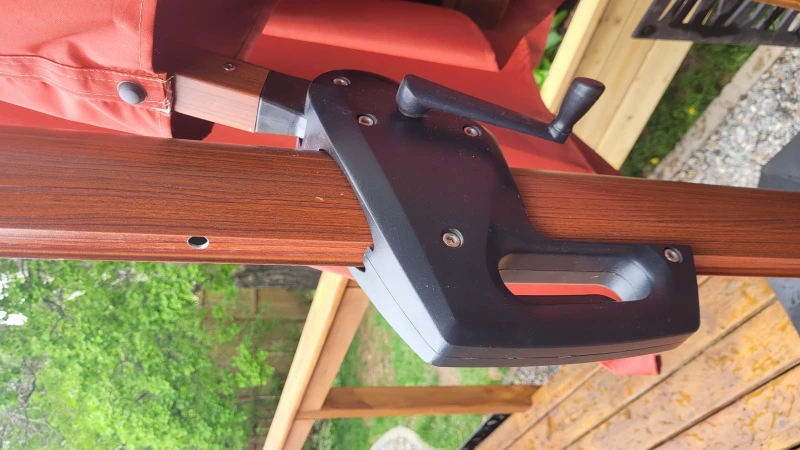

The trigger mechanism that locks the umbrella at different hieghts/angles is not catching to hold the umbrella in place. Is there a quick fix, or can you tell me if the trigger lock part is in the handle above the trigger, or below it in case i can get at it without taking the whole thing apart?

User image 683b409158efd

Subscribe to Our Youtube Channel

Summary of Contents for PURPLE LEAF CLASSIC

  • Page 1 PURPLE LEAF Assembly and Operation Manual Cantilever Umbrella CLASSIC ©Copyright 2016-2023 Purple Leaf Inc.
  • Page 3 PURPLE LEAF’s Cantilever Umbrella Read and follow this assembly and operation guide. To avoid personal injury and damage to your umbrella, please close your umbrella when it is incoming over 30 mph wind. We recommend a two-person team for assembly and disassembly.
  • Page 4 Instruction Book Cover Plate Connector Knob Base Tube...
  • Page 5 Umbrella Cover Umbrella Canopy Bolt×4 (8mm*25mm) Washer×4 Allen Wrench Hand Crank...
  • Page 6 Base Tube Assembly Base Tube Assembly Option 1 / Water Tank Base (Sold Separately) Note: Remove four black plastic sleeves before installing the base tube.
  • Page 7 Base Tube Assembly Base Tube Assembly Option 2 / Inground Base (Sold Separately) 28‘’ 24‘’ That is horizontal. Concrete >700lbs...
  • Page 8 Base Tube Assembly Base Tube Assembly Option 2 / Inground Base (Sold Separately) Standard umbrella For special accessories...
  • Page 9 Base Tube Assembly Base Tube Assembly Option 3 / Baseplate (Sold Separately) 4.44 in 4.44 in Ø1/2 in Ø1/2 in...
  • Page 10 Base Tube Assembly Base Tube Assembly Option 3 / Baseplate (Sold Separately) ×16 1 / 4 inch Use 1/4 inch -diameter galvanized/stainless lag screws to mount the plate to the deck(included in the package).
  • Page 11 Base Tube Assembly Base Tube Assembly Important Important Prior to assembly, it is important to choose the location of the umbrella. •Allow ample height to avoid damage to your umbrella during assembly and usage. •Choose a location that is level and sturdy. •Consider a location that will maximize the umbrella’s rotating swivel function.
  • Page 12 Umbrella Assembly Umbrella Assembly Two-persons recommended for team lift and to complete assembly. Insert the main pole onto the base tube(B) with the cover plate(C) installed. Insert the connector knob (H) to the matched-up holes. Be mindful of the packaging in the umbrella canopy. It MUST be removed before opening.
  • Page 13: Operation

    Operation Operation CAUTION: Stop turning the crank handle as soon as the umbrella cover is completely open and the sleeve on the umbrella pole has reached its maximum height. IMPORTANT: PRIOR TO USING THE TILT FUNCTION. To avoid personal injury or damage to the umbrella, make sure the area behind you is clear and free from any furniture or structure.
  • Page 14 Operation Operation Operation To Open Canopy 1. Slide the umbrella handle to the top of the pole by squeezing the trigger. 2 . Insert the hand crank(I) into the small hole of the handle on the post. Be sure to remove all the protective material inside.
  • Page 15 Operation Operation Operation...
  • Page 16 Operation Operation To Tilt Canopy Press on the handle trigger and move the handle up and down to adjust the angle of the umbrella canopy. IMPORTANT: PRIOR TO USING THE TILT FUNCTION. To avoid personal injury or damage to the umbrella, make sure the area behind you is clear and free from any furniture or structure.
  • Page 17 Operation Operation To Operate the 360° Rotation Insert the hand crank(I) into the hole near the bottom of the umbrella, turn the crank to rotate it.
  • Page 18 Operation Operation To Install Umbrella Light (Sold Separately)
  • Page 19 Operation Operation To Protect the Umbrella 1. The umbrella cover should only be used when umbrella fabric is completely dry. 2. Umbrella should be closed or stored indoors during windy conditions. 3. Do not use the umbrella during windy or severe weather conditions. zip up to close...
  • Page 20: Safety Precautions

    Notification SAFETY PRECAUTIONS Close the umbrella in windy conditions or when a storm approaches. Never allow the umbrella to flap in the wind. This could damage the canopy. Properly store umbrella when not in use. Close umbrella, and cover umbrella with a protective cover.
  • Page 21: Care And Maintenance

    Notification Care And Maintenance When not in use, close and cover umbrella with a protective cover. If necessary, clean the fabric with lukewarm water. Allow a wet canopy to dry slightly opened, but do not leave unattended. Wipe sliding marks on the aluminum poles with a damp cloth.
  • Page 22 Notification Finish The finish is warranted against peeling, cracking, or blistering for a period of one year, provided the unit has not been scratched or abraded. Scratches and chips resulting from abnormal wear and tear are not covered. Fading resulting from exposure to elements is not covered. Note All operation should be according to the instruction manual.
  • Page 23 Attention For octagonal umbrellas, the rib above the main support arm has a special curve (looks like dents). It prevents the main support arm to damage that rib w h e n t h e u m b r e l l a i s closed.
  • Page 24 Purple Leaf Inc. 1820 E Locust St, Ontario CA, 91761, US umbrella8@purpleleafgarden.com Copyright 2016-2023 Purple Leaf Inc. All Rights Reserved...
