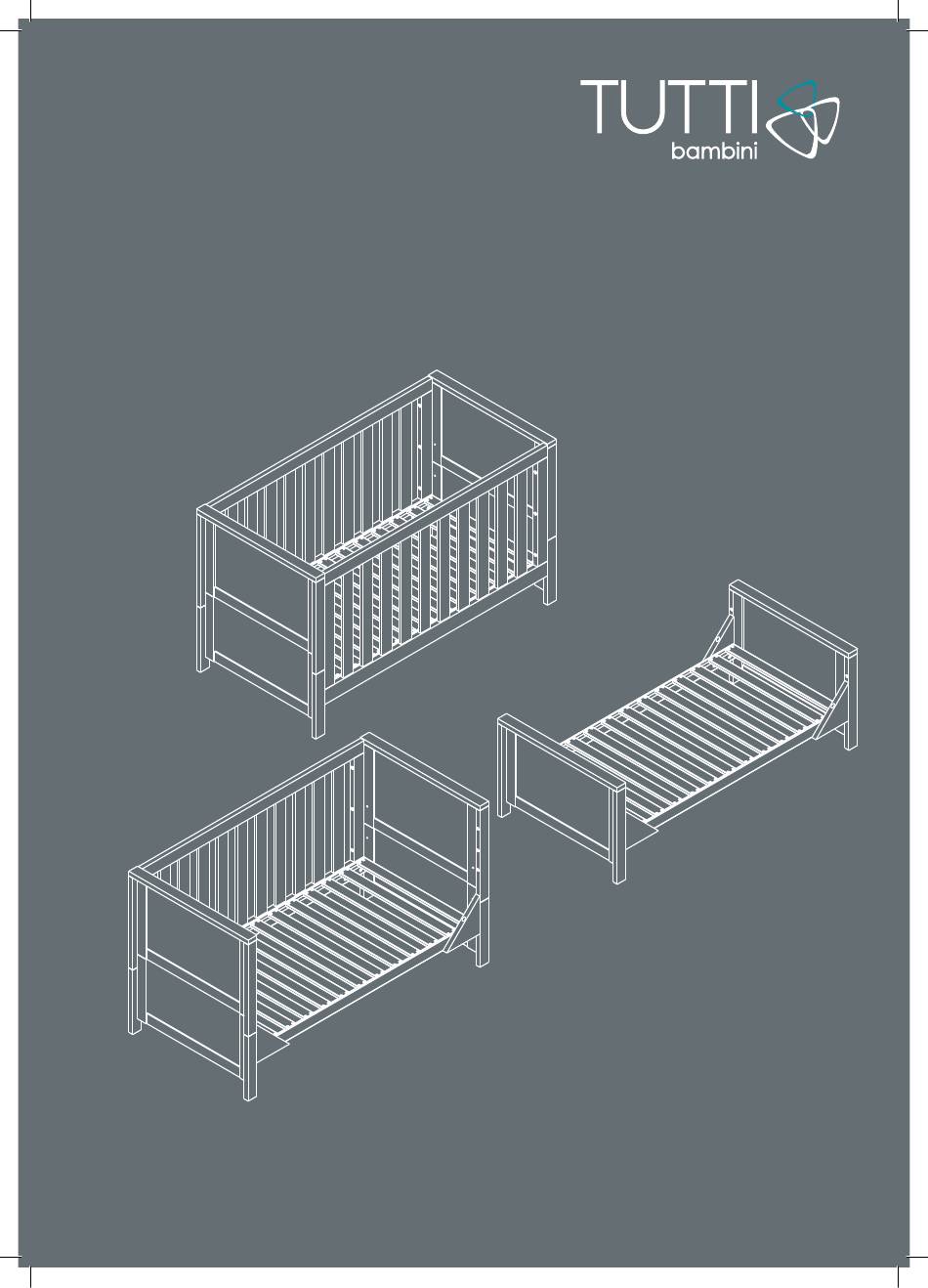

- Page 1 Tivoli Cot Bed Assembly Ins tructions IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY...
- Page 2 Designed to conform to AS/NZS 2172:2013 and CPN No.6 of 2005 Il Tutto International. PO Box 616 South Melbourne VIC 3205. t: 1300 780 548 e: hello@iltutto.com www.iltutto.com.au Tivoli Cot Bed 211063 IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY...
- Page 3 • Damaged part number • A photo or video of the damaged part Tutti Bambini guarantee your product against faulty manufacture for a period of 12 months from date of receipt of purchase. This does not affect your statutory rights...
-
Page 4: Parts List
Parts List Front left Front right Hardware List 1 PC 12 PC M6x80mm 4 PC 4 PC M6x60mm 8 PC M6x40mm www.iltutto.com.au... - Page 5 Assembling into cot Recommend for 2 people to assemble A x 6PCS D x 1PCS Assemble side using 6 x A bolts Assemble cot end B x 4 PCS A x 6PCS E x 4 PCS D x 1PCS Assemble side using 6 x A bolts Assemble mattress using 4 x B bolts with 4 x E mattress base support www.iltutto.com.au...
- Page 6 Assembling into cot IMPO RTANT NOTE: The bottom mattress base position is the safest. You should always use the cot in this lowest position as soon as your baby is old enough to sit up www.iltutto.com.au...
- Page 7 Assembling into sofa A x 6PCS D x 1PCS Assemble side using 6 x A bolts Assemble cot end A x 2 PCS B x 4 PCS C x 4 PCS E x 4 PCS D x 1PCS Assemble triangle braces support Assemble mattress using 4 x B bolts using 2 x A bolts and 4 x C bolts with 4 x E mattress base support...
- Page 8 Assembling in to bed B x 4 PCS E x 4 PCS Assemble mattress using 4 x B bolts Assemble cot end with 4 x E mattress base support A x 4PCS C x 8PCS D x 1PC Assemble triangle braces support using 4 x A bolts and 8 x C bolts www.iltutto.com.au...
- Page 9 23. This cot bed is designed to be dismantled for storage or transportation. 24. Any additional or replacement parts are obtained from the Tutti Bambini or its distributor. Guarantee All our products are produced from the finest quality materials and are manufactured under the strictest quality controls.
- Page 10 Notes...
- Page 11 Join Us Follow us on Facebook TuttiBambiniUK Follow us on Twitter TuttiBambiniUK Follow us on Instagram TuttiBambiniUK...
- Page 12 www.iltutto.com.au...
