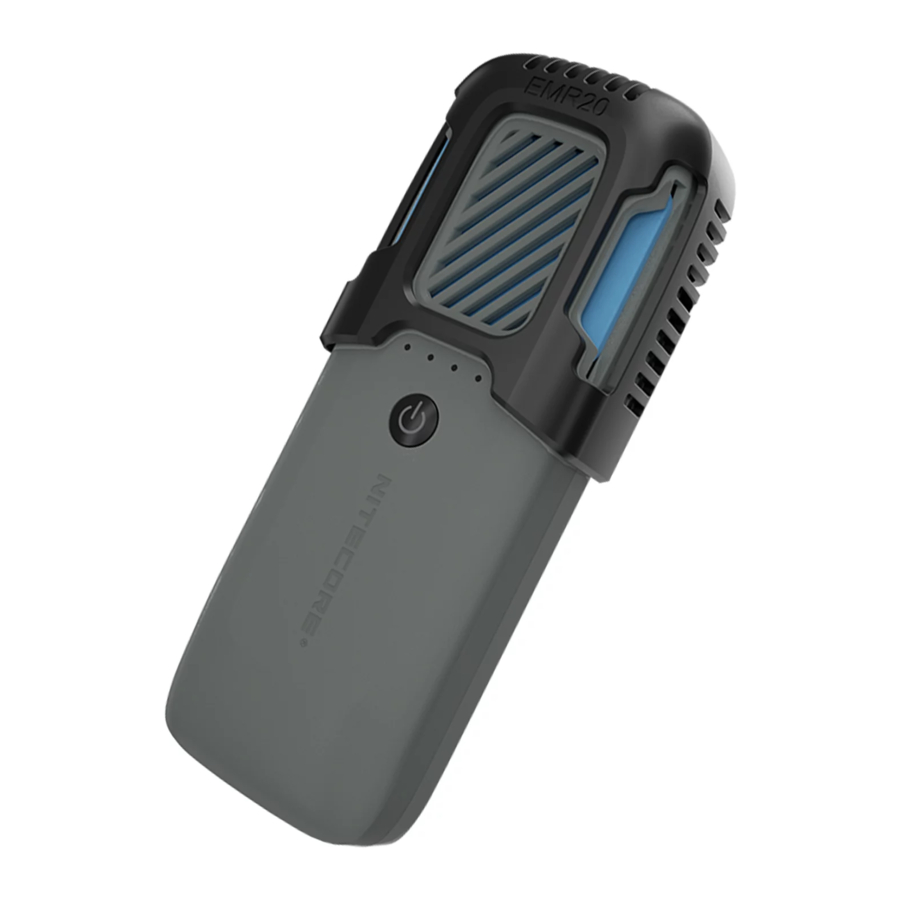

Nitecore EMR20 - Portable Electronic Multipurpose Repeller Manual

Specifications

Product Introduction

The EMR20 is specially designed for outdoor activities, such as outdoor work, camping, fishing, trekking and more.

• Mosquito Repelling Function
• 10,000mAh Power Supply
• Heat Insulation Guard Included

Read all instructions before use.
This product is intended for adult use only. This product is not a toy.

Charging

Connecting to the External Power
Use the USB cable to connect an external power supply (e.g. a USB adapter, a power bank or other USB charging device) to the USB charging port to begin the charging process. (Input: 5V⎓2A / 9V⎓2A)

Note: The mosquito repelling function can be activated during the charging process.

Operating Instructions

• On: When the EMR20 is off, short press and then long press the Power Button until all 4 indicators turn on one by one to activate the mosquito repelling function, after which the blue indicator beneath the Power Button will remain steadily turned on to indicate the access to Outdoor Mode (Default Startup Mode).
• Off: When the EMR20 is on, long press the Power Button until all 4 power indicators turn off one by one to turn off the mosquito repelling function.
• Mode Switching: When the mosquito repelling function is on, short press the Power Button to switch between Indoor Mode and Outdoor Mode. If the blue indicator beneath the Power Button is steadily on, the EMR20 is in Outdoor Mode.
  If the green indicator is steadily on, the EMR20 is in Indoor Mode.

Power Indication

• Short press the Power Button and the power indicators will turn on to indicate the power level. The EMR20 needs to get recharged when the last power indicator flashes to indicate low power.
• During the charging process, the power indicators will flash to indicate the power level. All 4 indicators will turn on steadily when the product is fully charged.

Using the EMR20

1. When the product is off, insert 1 repellent mat into the Repellent Mat Placement Area.
2. Activate the mosquito repelling function.
3. The protection zone will be created after 10 minutes.
4. After use, long press the Power Button to turn off the mosquito repelling function. Please store the product after cooling completely.

Note: NITECORE Mosquito Repellent Mat Size: 34mm x 48mm / 1.34" x 1.89" (up to 6 hours each)

Mosquito Repellent Mat Replacement

Make sure the EMR20 is off and cooled. Insert a new repellent mat while pushing out the used one.

EMR20 Placement

• Place the EMR20 upwind of the mosquito repellent area if it is windy.
• DO NOT cover the EMR20 during the using process.
• It is recommended to use multiple EMR20 together to create a larger protection zone.

Charging the External Device

USB Output: Available with the USB output, the EMR20 can be used as a power supply to charge external devices.

Connecting to the External Device: Use the USB cable to connect an external USB device to the USB charging port to begin the charging process.

Note: During the discharging process, the USB output will be automatically off to protect the battery if the battery voltage is low.

Storage and Transportation

• Store the product in ventilated and dry places at room temperature.
• Charge the product every 3 months if it is not used for a long period of time.

Warnings

1. Please install the Heat Insulation Guard when using the product to prevent scalds.
2. The product is designed to be used by adults. Keep the product out of reach of children.
3. Children under 16 years old must be under adult supervision when using this product to prevent scalds and accidents.
4. DO NOT leave the product unattended when it is in use.
   Stop using the product at any sign of malfunction.
5. DO NOT place the product in water.
6. DO NOT put your fingers, metals or foreign matters into the product to avoid accidents or damage.
7. DO NOT use the product in a confined space.
8. Stop using the product and dispose of it immediately if there is any leakage, odor, or deformation in the battery.
9. DO NOT expose the product to temperatures above 60°C (140℉) for a long time.
10. DO NOT disassemble or modify the product without authorization, as this will cause the warranty to be nullified. Please check the Warranty Service for details.
11. Dispose of the device/batteries in accordance with applicable local laws and regulations.

Warranty Service

All NITECORE^® products are warranted for quality. Any DOA / defective product can be exchanged for a replacement through a local distributor/dealer within 15 days of purchase. After that, all defective / malfunctioning NITECORE^® products can be repaired free of charge within 12 months from the date of purchase. Beyond 12 months, the charge for accessories, replacement parts and delivery shall be at your own expenses.

The warranty will be nullified if

1. the product(s) is/are broken down, reconstructed and/or modified by unauthorized parties.
2. the product(s) is/are damaged due to improper use.

For the latest information on NITECORE^® products and services, please contact a local NITECORE^® distributor or send an email to service@nitecore.com
※ The trademarks and product images specified herein this user manual are for reference purposes only. The copyright belongs to their lawful holders.
※ All images, texts and statements specified herein this user manual are for reference purposes only. Should any discrepancy occur between this manual and information specified on www.nitecore.com, Sysmax Innovations Co., Ltd. reserves the rights to interpret and amend the content of this document at any time without prior notice.

SYSMAX Innovations Co., Ltd.
TEL: +86-20-83862000
FAX: +86-20-83882723
E-mail: info@nitecore.com
Web: www.nitecore.com
Address:
Unit 6355, 5/F, No.1021
Gaopu Road, Tianhe District,
Guangzhou, 510653, Guangdong, China

Please find us on facebook: NITECORE Outdoor Electronics
Thanks for purchasing NITECORE!
