Summary of Contents for Schaffner RWK305

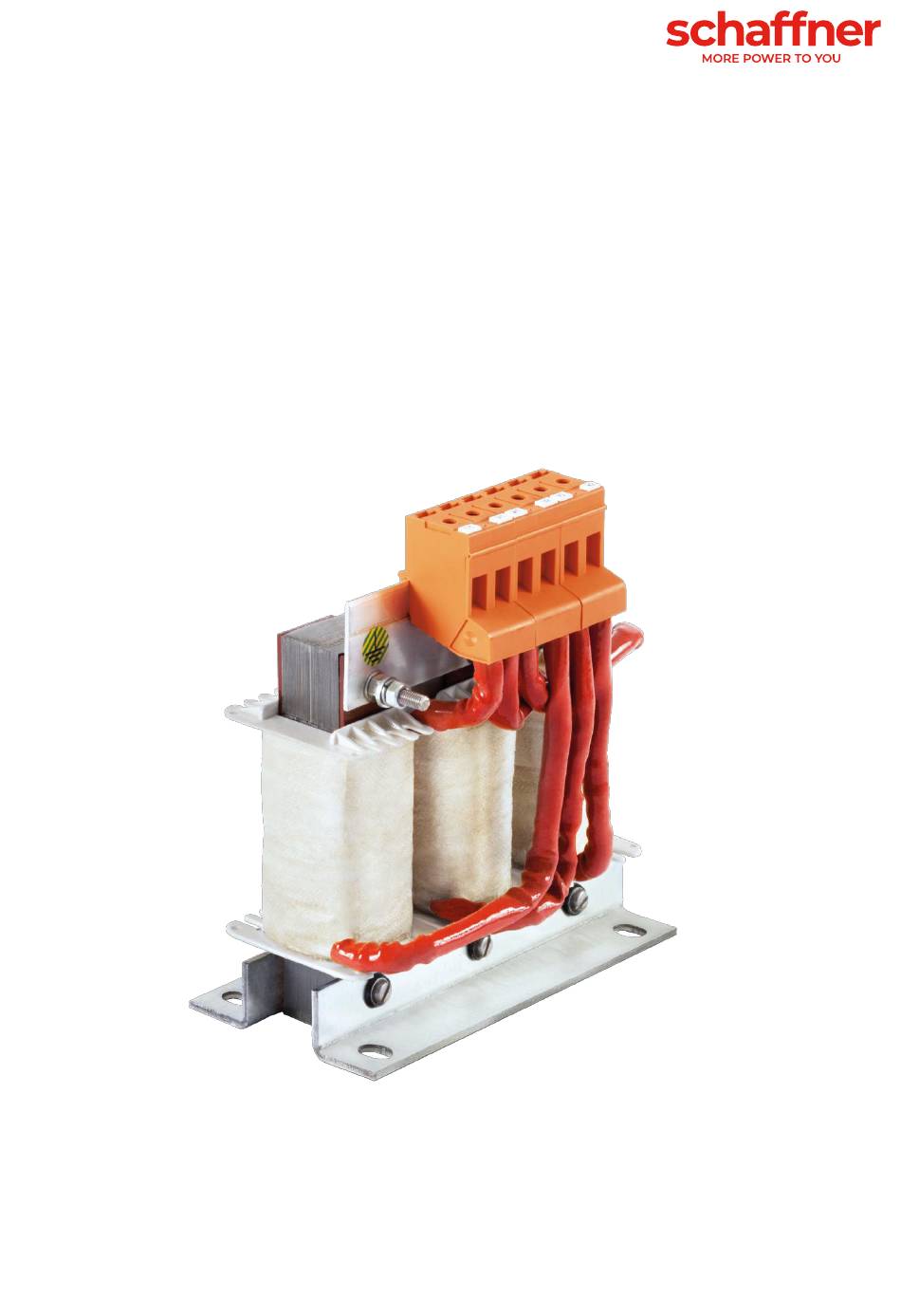

- Page 1 USER AND INSTALLATION MANUAL 3-Phase Load Reactor RWK305 Schaffner EMV AG Nordstrasse 11e 4542 Luterbach Switzerland Main +41 32 681 66 26 schaffner.com...
- Page 2 Lift the heavy reactors which do have lifting eyes with appropriate lifting aids – smaller types may be lifted manually by two persons (no lifting eye bolt applicable). RWK305 is a 3-phase load reactors device and should be wired in series and positioned on the output side of the VSD (VFD). All terminals marked.
- Page 3 Apply torques appropriate for the strength class of the screws and washers you are using. Specifications can be obtained from the supplier of the screws and washers. User and installation manual 3-Phase Load Reactor RWK305...
- Page 4 Figure 5 relation curve between fPWM and motor cable length If the drives settings are not correct, the dv/dt effect may not be sufficient to protect the motor winding insulation and the filter may be damaged! User and installation manual 3-Phase Load Reactor RWK305...
- Page 5 [This page is intentionally left blank] User and installation manual 3-Phase Load Reactor RWK305...
- Page 6 Schaffner group companies (“Schaffner”) and do not constitute an offer for purchase or sale or a recommendation or advice. The content of this document has been carefully prepared and reviewed and all reasonable efforts have been made to ensure the accuracy of the information.
