INSTRUCTION MANUAL

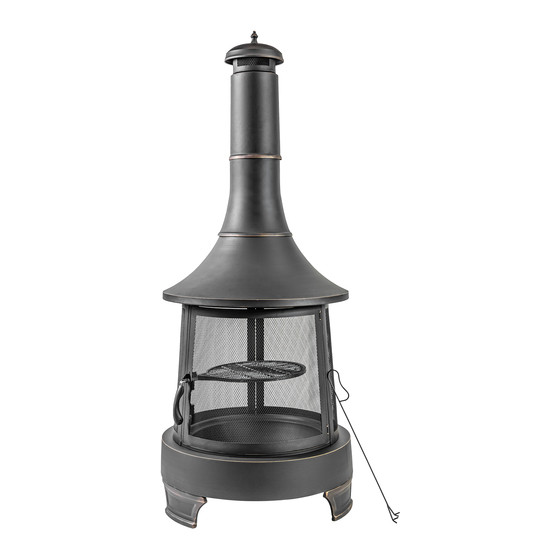

WOOD BURNING CHIMNEY FIRE PIT
MODEL NUMBER: COB10503
Thank you for purchasing your new
Wood Burning Chimney Fire Pit.
DO NOT RETURN THIS WOOD BURNING CHIMNEY FIRE PIT TO THE STORE
Should you encounter problems after following all the steps herein contained please contact our
Customer Support: Call 1-866-231-8893 or email: info@ctm-inter.com.
Kindly provide the model #, place and date of purchase and a short description of the problem.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
06/2023
Advertisement
Table of Contents
Related Manuals for DEKO LIVING COB10503
Summary of Contents for DEKO LIVING COB10503
- Page 1 INSTRUCTION MANUAL WOOD BURNING CHIMNEY FIRE PIT MODEL NUMBER: COB10503 Thank you for purchasing your new Wood Burning Chimney Fire Pit. DO NOT RETURN THIS WOOD BURNING CHIMNEY FIRE PIT TO THE STORE Should you encounter problems after following all the steps herein contained please contact our Customer Support: Call 1-866-231-8893 or email: info@ctm-inter.com.
- Page 2 WARNING WARNING FOR YOUR SAFETY FOR YOUR SAFETY 1) Improper installation, adjustment, alteration, For Outdoor Use Only service or maintenance can cause injury or property damage. (outside any enclosure) 2) Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
- Page 3 List Of Parts Carefully check all packaging materials before discarding. DO NOT assemble if there are missing pieces.
- Page 4 Assembly Instructions 1- Lay the base upside down and connect the feet using 3 screws on each foot. BOTTOM 2- Turn the base over and assemble the upper mesh screens onto the base. Each screen has a screw that goes in the hole in the base with 2 tabs to connect to the adjacent screen using screws. The screens can start in any hole, but it is easiest to start with the screen that has the hinge for the door first and install the frame with the door last.
- Page 5 Assembly Instructions (continued) 5- Fasten the decorative cap finial to the cap 6- Mount the spark screen to the upper section using a screw. of the smokestack using 2 small screws with washers. Assemble 7 - Assemble the smokestack. Be sure that 8 - Mount the smokestack to the upper heat and all 3 tabs of the upper section lock in place smoke shield.
- Page 6 Assembly Instructions (continued) 11- Put the cast cooking grill onto the upper or lower section using the bolt and nut. On the top position the bolt goes down from the top. For the lower section the bolt goes in from the bottom. *** Be sure to use all safety precautions and keep children away from all hot surfaces.
- Page 7 Operating Instructions Reminders: WARNING • Always wear protective gloves • Wait until glowing woodhas developed before FOR YOUR SAFETY adding any additional wood. • DO NOT add gasoline, kerosene, diesel fuel, lighter Before using this outdoor fire pit, make sure you fluid or alcohol to relight or enhance an existing fire.
- Page 8 ww.dekoliving.com Customer Support: Call 1-866-231-8893 or email: info@ctm-inter.com...
