- Page 1 ARP 692 User Reference Manual...
-
Page 2: Specifications
Specifications Model No ARP692 Construction Rugged Aluminum Construction with shock absorbing rubber corners Motherboard Support Standard ATX M/B Display 2x 21.5" LCD display, 1920x 1080 Slots Offer 7 full-length expansion slots 3x 5.25”, 6x 3.5” drive bays Drive bay AD conversion board 2x DP output for 2 screens KB/MS Industrial multi-language keyboard/ touchpad... - Page 3 Standard Accessory Kits ARP 692 Model Accessory Kit SKD ARP692 Portable Computer Chassis ARP 692 Carrying Case with wheels User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...

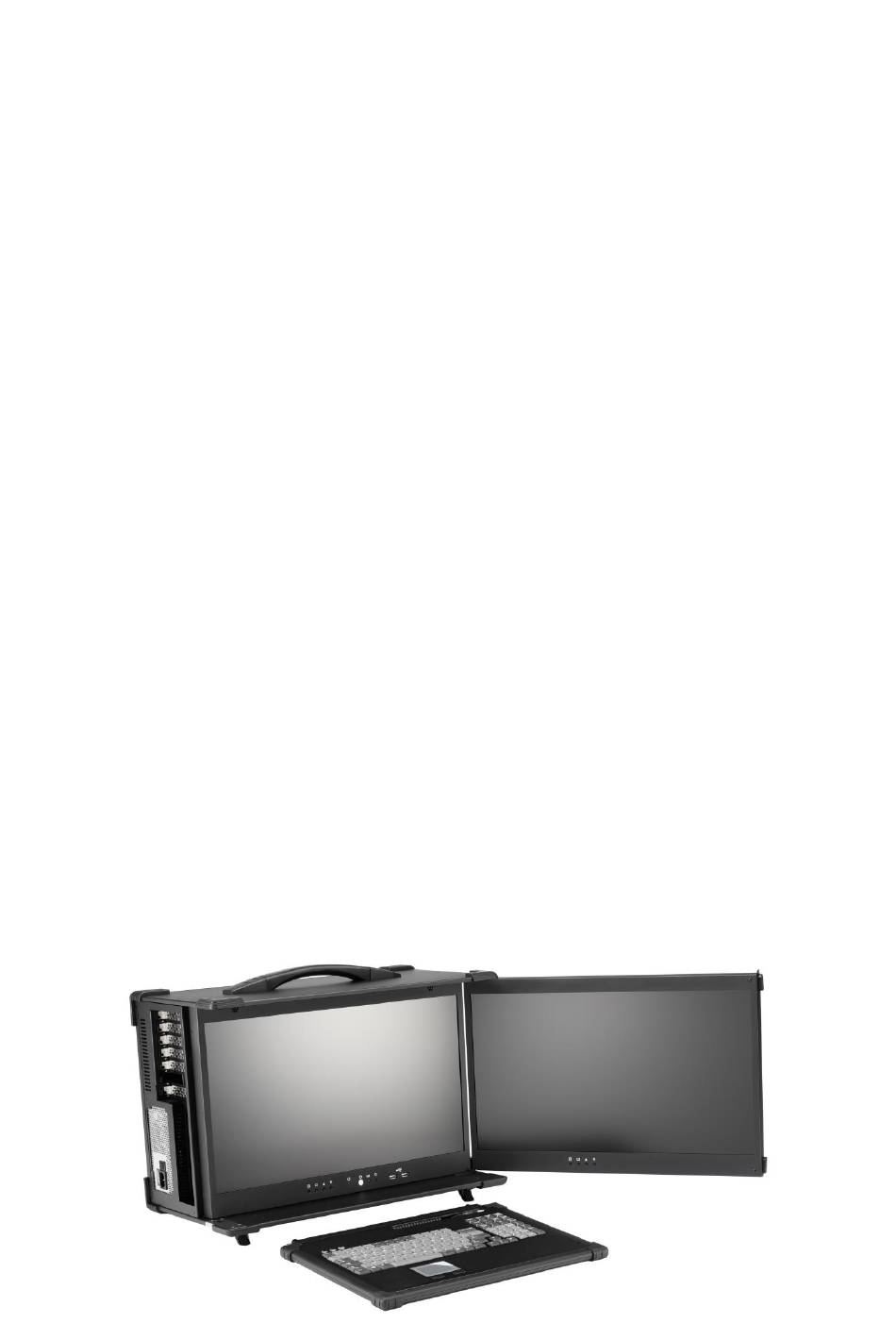

- Page 4 1.0 Introduction ARP 692 features: ● Rugged Aluminum Construction with shock absorbing rubber corners ● Built-in 2x 21.5” LCD display support Full HD, 1920x 1080 resolution ● Support standard ATX Motherboard ● Offer 7-slot full-length expansion capability ● Creates a stretched desktop with a maximal resolution of 3840x 1080 (2x 1920x 1080) ●...
- Page 5 2.0 Getting Started 2.0 Operation 1. Push the 2 taps located on left of the outer LCD to release lock and open the first LCD panel from the main unit by swinging the LCD fixture toward the right 3. Once the right LCD is opened. You will be able to view 2 LCD in full view. LCD 1 LCD 2 4.
- Page 6 5. Turn on the power by pressing the power button located in the front of the main unit. Press Once to Power On 6. Front panel button control allows you to adjust the LCD via OSD. Each individual LCD has its own set of OSD control.
- Page 7 3.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Open Back Cover Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 2. Remove the Card stabilizer bar Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew...
-
Page 8: Remove The Power Supply
3. Remove the Power Supply 3.1 Remove the left side screws Unscrew Unscrew Unscrew Unscrew 3.2 Slide and move out the PSU slowly Slide & Move out ８... - Page 9 Remove the drive bay 4.1 Loosen the right-side drive bay cover screws, and remove the drive bay cover. Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 4.2 Loosen these drive bay screws. Unscrew Unscrew Unscrew Unscrew ９...
- Page 10 4.3 Slide and move out the drive bay slowly Slide & Move out 5. Install the proper stand-off matching the ATX Motherboard into the chassis and correct I/O plate supplied by board manufacturer and secure it the motherboard onto chassis. １０...
- Page 11 6. Install your graphic card and add-in card into the appropriate slot Add-in card Graphic card 7. Install the drive bay and power supply into chassis Drive bay Power Supply １１...
- Page 12 8. Connect the 2 LCD cables to graphic card DP cable for LCD1 DP cable for LCD2 LCD 1 LCD 2 １２...
- Page 13 9. Remount the card stabilizer bar Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Put the rear cover back Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw １３...
-
Page 14: Software Installation
4.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system. Available medium from USB or download can also be possible. Window Boot up: Windows boot up requires you to have Windows installed in the hard disk drive. -
Page 15: Troubleshooting
5.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARP. 3. Are all the items seated properly? 4.
