Page 2: Specifications
Specifications Model No ARP673 Construction Rugged Aluminum Construction with shock absorbing rubber corners Motherboard Support Standard ATX M/B Display 3x 17.3" LCD display, 1920x 1080 resolution Slots Offer 7 full-length expansion slots Drive bay 2x 5.25”, 1x 3.5” drive bays, 1x slim DVD-RW... - Page 3 Standard Accessory Kits ARP673 Model Accessory Kit SKD ARP673 Portable Computer Chassis ARP673 Carrying Case with wheels User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...

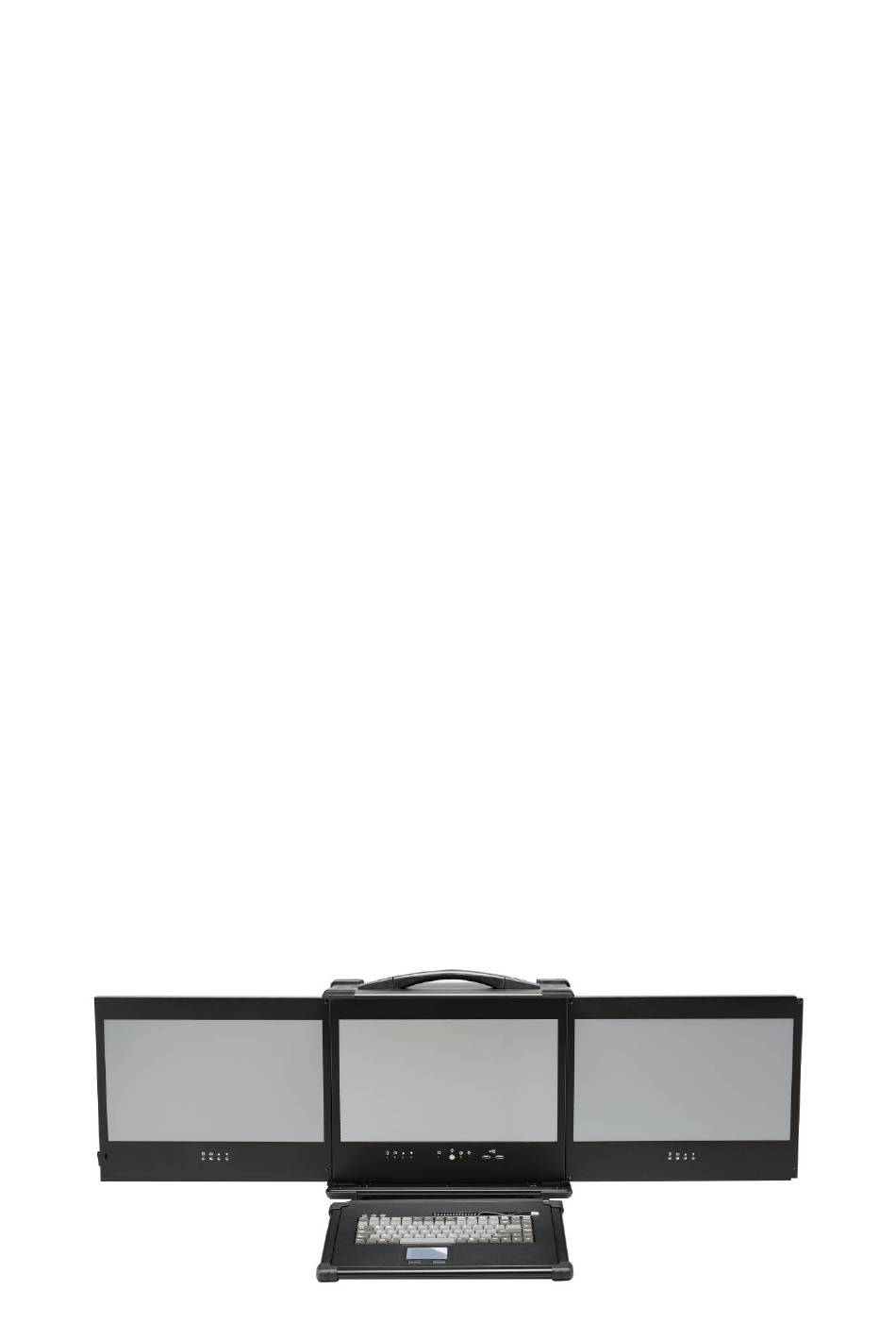

- Page 4 ● Offer 2x 5.25”, 1x 3.5” drive bays, 1x slim DVD-RW ● Carrying case to manage portable PC with ease The ARP673 is a triple LCD screen rugged portable computer which can be folded into a neatly package for transportation. The system has three 17.3" widescreen LED LCD, each with 1920x1080 resolution panel are available for a total 5760x1080 resolution.
- Page 5 2.0 Getting Started 2.0 Operation 1. Lift the lever on the bottom right of the outer LCD to release lock and the open the first LCD panel from the main unit by swinging the LCD fixture toward the left 2. Open the second LCD from the main unit by swinging the LCD fixture toward the right 3.
- Page 6 4. Connect the power cable outlet into the power supply unit in the main chassis Insert Power Cord 5. Turn on the power by pressing the power button located in the front of the main unit. Press Once to Power On 6.
- Page 7 7. Access the available expansion slots on the left side of the chassis. 7 expansion slots 8. Support 2x 5.25”, 1x slim DVD-RW, 1x 3.5” drive bays Drive bays ７...
- Page 8 3.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Open Back Cover Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 2. Remove the Card stabilizer bar Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew ８...
-
Page 9: Remove The Power Supply
3. Remove The Power Supply 3.1 Remove the left side cover Unscrew Unscrew Unscrew Unscrew 3.2 Remove the left side power suppler filter cover and loosen the power supply screws Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 3.3 Slide and move out the PSU slowly Slide &... - Page 10 Remove the drive bay 4.1 Loosen the right side drive bay cover screws, and remove the drive bay cover. Unscrew Unscrew Unscrew 4.2 Loosen the drive bay screws. Unscrew Unscrew Unscrew １０...
- Page 11 4.3 Slide and move out the drive bay slowly Slide & Move out 5. Install the proper stand-off matching the ATX Motherboard into the chassis and correct I/O plate supplied by board manufacturer and secure it the motherboard onto chassis. １１...
- Page 12 6. Install your graphic card and add-in card into the appropriate slot Add-in card Graphic card 7. Connect the 3 LCD DVI/HDMI cables to graphic card DVI cable for LCD1 DVI cable for LCD2 DVI cable for LCD3 １２...
- Page 13 LCD 1 LCD 2 LCD 3 8. Install the drive bay and power supply into chassis Drive bay Power Supply １３...
- Page 14 9. Remount the card stabilizer bar Screw Screw Screw Screw Screw Screw Put the rear cover back Screw Screw Screw Screw Screw Screw Screw Screw １４...
-
Page 15: Software Installation
4.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system. Available medium from USB or download can also be possible. Window Boot up: Windows boot up requires you to have Windows installed in the hard disk drive. -
Page 16: Troubleshooting
5.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARP. 3. Are all the items seated properly? 4.
