HOBO® MicroRX Station (RX2101, RX2102, RX2103 & RX2104) Manual

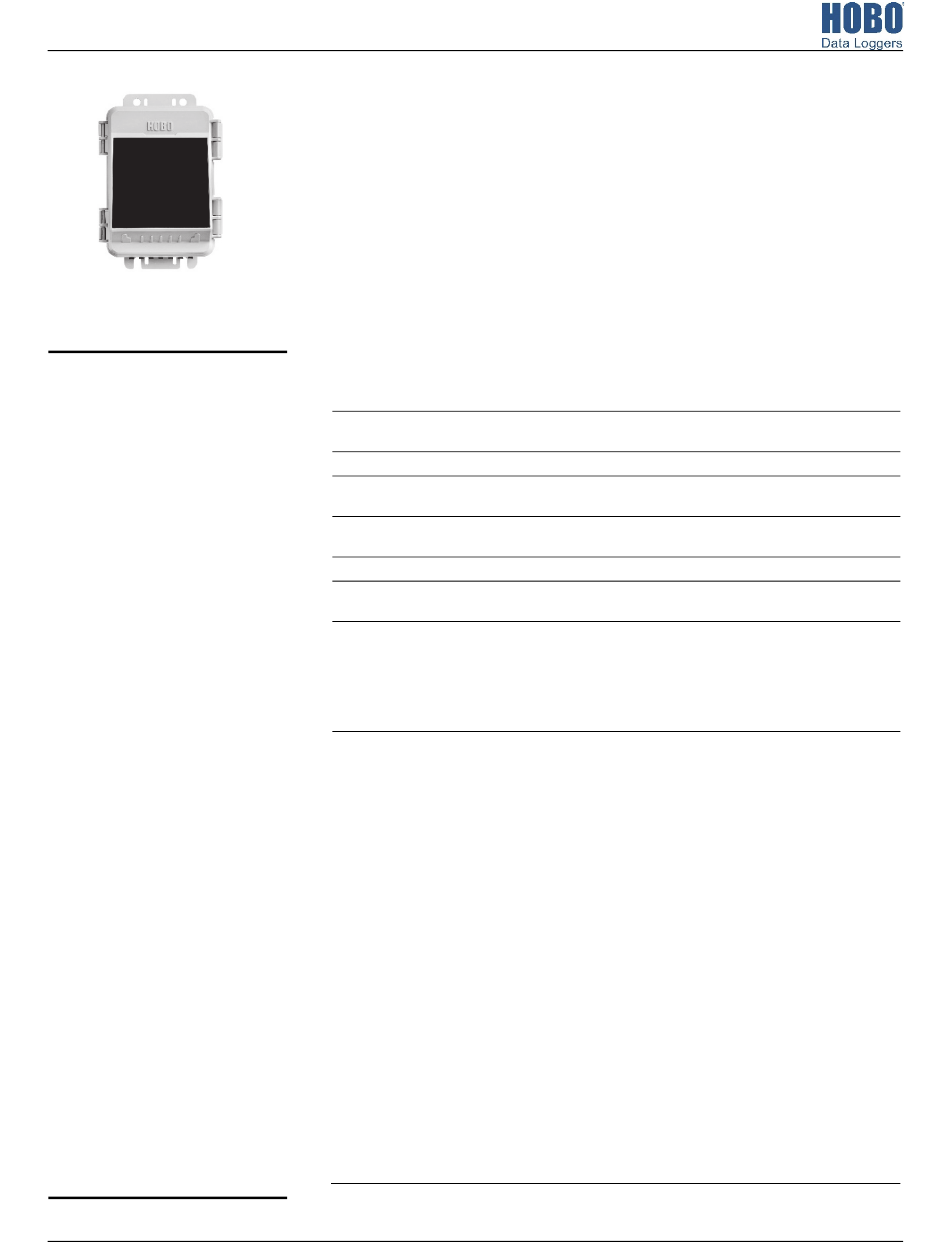

RX2102 model shown
HOBO MicroRX Station
Models: RX2101 MicroRX Station
RX2102 MicroRX Station with
Solar Panel
RX2103 MicroRX Water Level
Station
RX2104 MicroRX Water Level
Station with Solar Panel
Included Items:
• Grease packet
• Screws and washers
• Cable ties
• Six AA lithium batteries (RX2101 and
RX2103 models)
• Rechargeable battery pack (RX2102
and RX2104 models)
Required Items:
• HOBOlink
• Smart Sensors (required for RX2101
and RX2102; optional for RX2103
and RX2104)
For RX2103 and RX2104 models:
One MX2001 water level sensor and one
cable:
• MX2001-01-SS-S or MX2001-01-Ti-S
(Titanium), 9-meter/30-foot depth)
• MX2001-02-SS-S, 30-meter/100-foot
depth
• MX2001-03-SS-S, 76-meter/250-foot
depth
• MX2001-04-SS-S or MX2001-04-Ti-S
(Titanium), 4-meter/13-foot depth
• Cable (CABLE-RWL-xxx)
Optional Items:
• AC adapter (P-AC-1)
• Ground wire (CABLE-MICRO-G)
• 2-meter tripod (M-TPB)
• 3-meter tripod (M-TPA)
• 1.5 meter mast (M-MPB)
• 1-5/8 inch U-bolts (U-BOLT-KIT2)
• Guy wire kit (M-GWA)
• 1/2 inch stake kit (M-SKA)
• Well cap (WELL-CAP-02)
Smart sensors and accessories are
available at www.onsetcomp.com.
23808-G
The HOBO MicroRX Station provides continuous logging for a broad range of weather monitoring
and microclimate applications with up to five plug-and-play smart sensor inputs. In addition, the
HOBO MicroRX Water Level Station supports an easy-to-install water level sensor and integrated
flow conversion for monitoring streams, lakes, wetlands, tidal areas, groundwater, and more.
Logged data from the station is transferred at regular connection intervals to HOBOlink® web-
based software where you can check the latest conditions, view graphs, configure sensors and
alarms, set up a dashboard, download your data, or schedule data delivery via email or FTP. Inside
its weatherproof enclosure, this compact station has a built-in LCD screen to check the current
system configuration and status, start and stop logging, add and remove smart sensors, and
connect to HOBOlink on demand. The station offers two primary power source options depending
on your deployment needs: the RX2101 and RX2103 models include user-replaceable AA lithium
batteries while the RX2102 and RX2104 models are designed with a built-in solar panel and
rechargeable NiMH battery pack.
Specifications
Station
Operating Range
Smart Sensor Connectors
Smart Sensor Network Cable
Length
Smart Sensor Data Channels
Logging Rate
Time Accuracy
Battery Type/Power Source
Battery Life
RX2101 and RX2103: -40° to 60°C (-40° to 140°F)
RX2102 and RX2104: -20° to 60°C (-4° to 140°F)
5
100 m (328 ft) maximum
Maximum of 15 (some smart sensors use more than one data
channel; see sensor manual for details)
1 minute to 18 hours
±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range
RX2102 and RX2104: Integrated 1.7 watt solar panel and NiMH
rechargeable battery pack; optional AC power adapter (P-AC-1) or
external solar panel (SOLAR-xW) can be used in place of integrated
solar panel
RX2101 and RX2103: 6 AA 1.5 V lithium batteries or AC power
adapter (P-AC-1)
RX2102 and RX2104:
Typical 3–5 years when operated in the temperature range -20° to
40°C (-4° to 104°F); operation outside this range will reduce the
battery service life.
Maximum connection rates with built-in solar panel, in full sun:
• 10 minute connections year round for latitudes less than ±40°
• 10 minute connections through three seasons in other regions,
reduced to 30 minute connections in winter
Maximum connection rates with external 5W or 15W solar panels:
• 10 minute connections year round, in full sun
• Connection rate with external solar panels may be less if
deployed in partial sun
Battery life without solar recharging, with hourly connections and
1 minute logging:
• RX2102: 3 months
• RX2104: 2 months
RX2101 and RX2103:
Battery life with daily connections:
• RX2101: 1 year with 1 minute logging
• RX2103: 1 year with 2 minute logging
Battery life with hourly connections and 1 minute logging:
• RX2101: 3 months
• RX2103: 2 months
Note: Deployments in areas with weak cellular strength could
reduce battery life.
