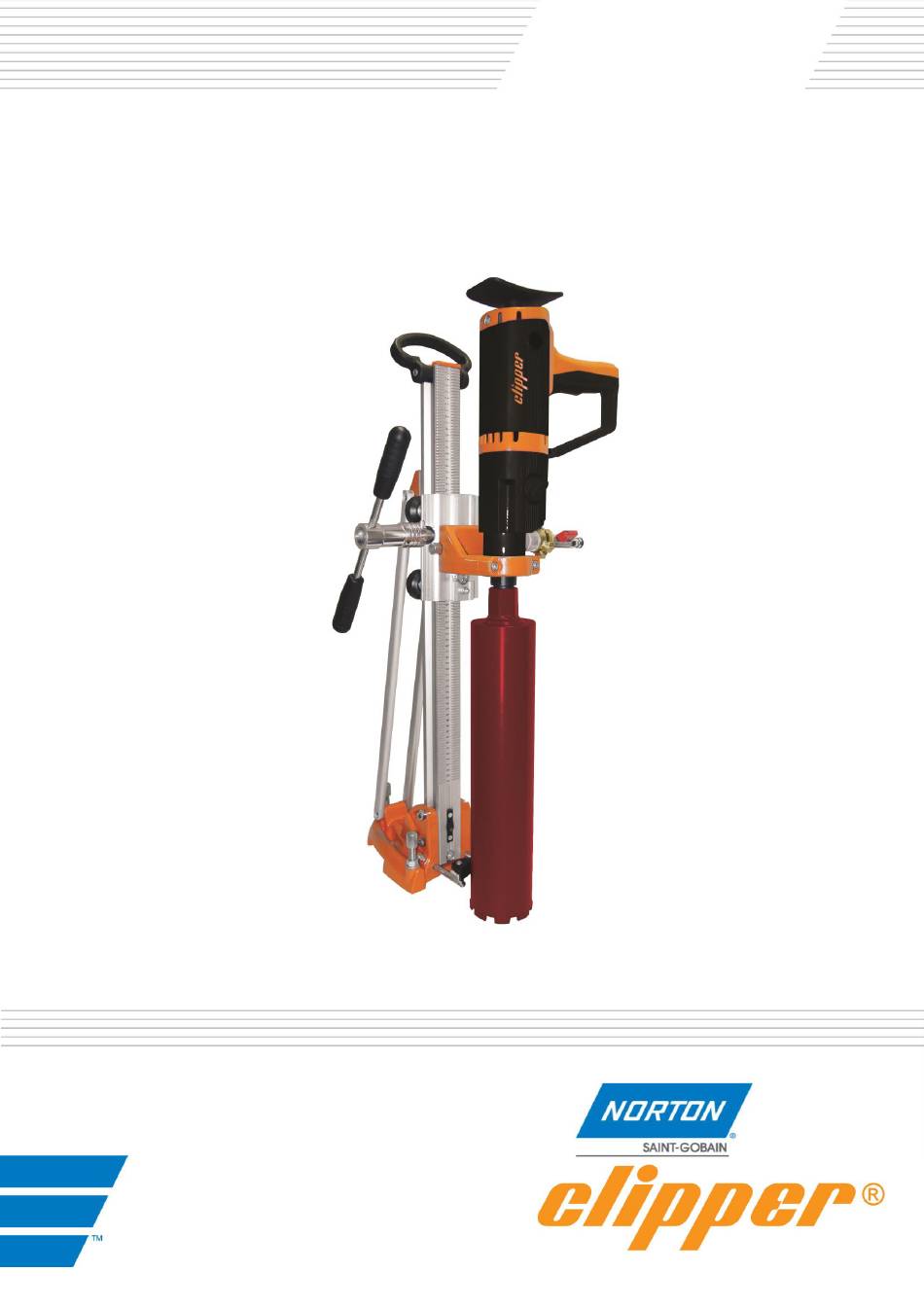

- Page 1 Kit CDR 163 + CDM 203 OPERATING INSTRUCTIONS Translation of the original instructions...
- Page 2 VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN...
- Page 3 Valid for machines as of serial number: 150500000 Storage site for the technical documents: Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG This declaration of conformity loses its validity when the product is converted or modified without agreement.
- Page 4 VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN...
-
Page 5: Table Of Contents
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN Kit CDR 163 + CDM 203 OPERATING INSTRUCTIONS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 MACHINE DESCRIPTION 2.1 Short description 2.2 Purpose of use 2.3 Layout 2.4 Technical Data 2.5 Statement regarding the vibration emission... -
Page 6: Basic Safety Instructions
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The core drill rig CDR 163 is exclusively designed for the drilling of construction products mainly within a construction site. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. -
Page 7: Machine Plate
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 1.2 Machine plate Important data can be found on the following plate located on the machine: Machine Model Machine Code Weight Year of production Serial number Machine type... -
Page 8: Safety Instructions For Particular Operating Phases
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 1.3 Safety instructions for particular operating phases Before commencing work Before commencing work, make yourself familiar with the working environment at the place of use. The working environment includes: obstacles in the area of work and manoeuvre, the firmness of the floor, necessary protection at the site relating to public thoroughfares and the availability of help in the event of accidents. -
Page 9: Machine Description
2 MACHINE DESCRIPTION Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity with the safety regulations. 2.1 Short description The CDR 163 core drill rig is designed for durability and high performance for onsite wet and dry drilling operations of a wide range of masonry and natural stone products. -
Page 10: Technical Data
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 2.4 Technical Data Max. drill bit diameter 160mm Movement 540 mm Tilting 0 to 45° Weight 9.6 kg Dimensions (Length x width x height) 375x250x870 mm You can find the code number on the machine plate. If you bought a complete kit, your machine is composed of a column with combined base, a motor. -
Page 11: Statement Regarding The Vibration Emission
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 2.5 Statement regarding the vibration emission Declared value of vibration emission following EN 12096. Machine Measured value of vibration Uncertainty K Tool used Model / code emission at m/s Model / code KIT CDR 163 + CDM 203 <... -
Page 12: Statement Regarding Noise Emission
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 2.6 Statement regarding noise emission Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744. Machine Sound Uncertainty K Sound power Uncertainty K Model / code Pressure level (Sound level (Sound power level Pressure level... -
Page 13: Assembly And Commissioning
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 3 ASSEMBLY AND COMMISSIONING 3.1 Assembling the motor on the rig To assemble the motor on the collar, loosen the tightening screw. Then fit the motor in the collar. Retighten the screw so the motor cannot move in the collar. 3.2 Tool assembly Only NORTON core bit can be used with the CDR 163. -
Page 14: Changing Motor Speed
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN This device works also as NVR (“No Volt Release”). It stops the electrical supply of the machine during a power cut. Therefore, when electricity returns, the machine will not start. You have to reengage the P.R.C.D. -
Page 15: Transport And Storing
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 4 TRANSPORT AND STORING Take the following measures in order to transport the CDR 163 securely. 4.1 Securing for transport Dismount the core bit, separate the motor from the rig, and the motor from electrical supply. 4.2 Transport procedure Use only surface transport to move the CDR 163. -
Page 16: Operating The Machine
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 5 OPERATING THE MACHINE You will find useful description of how to use the machine properly. 5.1 Site of work 5.1.1 Siting the machine Remove from the site anything, which might hinder the working procedure! ... - Page 17 VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN Fixation with a dowel To fix the drill rig, you need a 15mm-dowel, a 30cm-long threaded rod, a washer and a wing nut. Bore a 15mm-diameter and 50mm-depth hole and clean it. ...
- Page 18 VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN You are going through the steel rods for reinforced concrete. Follow these instructions: If possible, select a lower gear. Remember that you must firstly take the core bit out of the hole and switch the motor off in order to change from gear.
-
Page 19: Maintenance And Servicing
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 6 MAINTENANCE AND SERVICING To ensure a long-term quality from the cutting with the CDR 163, please follow the maintenance plan below: Whole machine Visual control (general aspect, watertightness) Clean Motor cooling fans Blow the dirt and dust Switch, cables and extension cables Inspect... -
Page 20: Faults: Causes And Cures
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 7 FAULTS: CAUSES AND CURES Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electric supply. Works dealing with the electric system or supply of the machine can only be done by a qualified electrician. -
Page 21: Customer Service
In the case of a warranty is claim, the part must always be returned for evaluation. Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by Saint-Gobain Abrasives S.A. 190, Bd. J.F. Kennedy L- 4930 BASCHARAGE Grand-Duché... - Page 22 VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN Guarantee can be claimed and technical support obtained from your local distributor where machines, spare parts and consumables can be ordered as well:...
-
Page 23: Appendix
VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN 8 APPENDIX Ideal rotation speed of the core bit in relation to the hole diameter... - Page 24 VERS.2015.05.19 Kit CDR 163 + CDM 203_MAN_EN www.construction.norton.eu Saint-Gobain Abrasives 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com...
