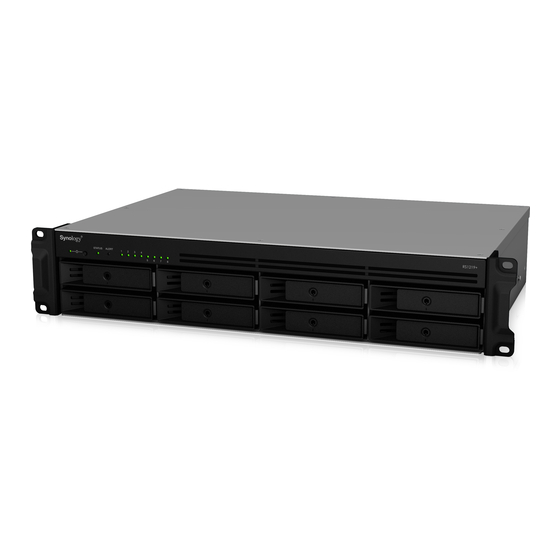

- Page 1 Synology RackStation RS1219+ Hardware Installation Guide...
-
Page 2: Table Of Contents
Table of Contents Chapter 1: Before You Start Package Contents Synology RackStation at a Glance Safety Instructions Chapter 2: Hardware Setup Tools and Parts for Drive Installation Install Drives Add a RAM Module on RackStation Attach Network Interface Card to the RackStation... -
Page 3: Package Contents
Chapter Before You Start Thank you for purchasing this Synology product! Before setting up your new RackStation, please check the package contents to verify that you have received the items below. Also, make sure to read the safety instructions carefully to avoid harming yourself or damaging your RackStation. -
Page 4: Synology Rackstation At A Glance
You can keep the current admin password unchanged by ticking the "Keep current admin password unchanged" checkbox in DSM Control Panel > Update & Restore > Reset. For more information about Synology Expansion Unit supported by your RackStation, please visit www.synology.com. 4 Chapter 1: Before You Start... -
Page 5: Safety Instructions
Safety Instructions Keep away from direct sunlight and away from chemicals. Make sure the environment does not experience abrupt changes in temperature or humidity. Place the product right side up at all times. Do not place near any liquids. Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or aerosol cleaners. -
Page 6: Chapter 2: Hardware Setup
Tools and Parts for Drive Installation • A screwdriver • At least one 3.5” or 2.5” SATA drive (please visit www.synology.com for compatible drive models.) Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. Please back up any important data before installation. - Page 7 3 Insert the loaded drive tray into the empty drive bay. Make sure the tray is pushed in all the way. Otherwise, the drive might not be able to function properly. Note: 4 Push the handle inward to secure the drive tray. 5 Insert the drive tray key into the drive tray lock, turn the key clockwise to lock the handle of the drive tray, and then remove the key.
-
Page 8: Add A Ram Module On Rackstation
1. Always install or replace the RAM module from slot 1 first. 2. When two RAM modules are installed, the capacity of them must be identical. 3. Synology will not provide complete product warranty or technical support if non-Synology RAM modules are used for memory upgrade. - Page 9 3 Insert the new memory module in the slot: a Align the notch on the gold edge of the module with the notch in the memory slot. b Tilt the card and push the memory into the slot. Make sure the module is pushed in all the way. c Use two fingers to apply firm, even pressure and push the memory module downward.
- Page 10 To remove the RAM Module: 1 Follow step 1 and 2 of the “Add a RAM Module on RackStation” section to shut down your RackStation, disconnect the cables, and then remove the top cover. 2 Disengage the memory retaining clips by pushing them outwards, and the module will pop out of the slot. 3 Follow step 4 of the “Return the top cover into the RackStation”...
-
Page 11: Attach Network Interface Card To The Rackstation
Make sure the connector is fully inserted. Otherwise, the network interface card might not be able to function properly. 4 Put back the top cover by following step 4 of Add a RAM Module on RackStation. For more information about supported 10GbE or Gigabit network interface cards, please visit www.synology.com. 11 Chapter 2: Hardware Setup... -
Page 12: Replace System Fan
Replace System Fan Your RackStation will beep if either of the system fans is not working. Follow the steps below to replace the malfunctioning fan with a good one. To replace the system fan: 1 Shut down your RackStation. Disconnect all cables connected to your RackStation to prevent any possible damages. - Page 13 5 Remove the malfunctioning fan: a Disconnect the cable of malfunctioning fan from the socket, and then remove the fan. b Loosen the 4 screws that secure the fan guard, and then remove the fan guard. 13 Chapter 2: Hardware Setup...
- Page 14 6 Install the new fan: a Replace the malfunctioning fan with a good one, and then tighten the 4 screws to secure fan guard on the new fan. b Connect the fan cable to the socket, and then put the fan into the case. The fan cable should be at the bottom left.
-
Page 15: Mount The Rackstation To A 2-Post Rack
1 Lift the RackStation to the desired height. 2 Use four screws to secure the RackStation to the two-post rack. Note: Buy Synology Rail Kit RKS1317 if you need sliding rails to mount the RackStation into a rack cabinet. 15 Chapter 2: Hardware Setup... -
Page 16: Start Up The Rackstation
Start Up the RackStation 1 Connect one end of each power cord to the power ports located on the back of the RackStation and the other end to a power outlet. 2 Connect at least one LAN cable to one of the LAN ports and the other end to your switch, router, or hub. 3 Press the power button to turn on the RackStation. -
Page 17: Chapter 3: Install Dsm On Rackstation
Chapter Install DSM on RackStation After hardware setup is finished, please install DiskStation Manager (DSM) – Synology’s browser-based operating system – on your RackStation. Install DSM with Web Assistant Your RackStation comes with a built-in tool called Web Assistant that helps you download the latest version of DSM from the Internet and install it on your RackStation. - Page 18 Supported RAID Type • RAID 5 • RAID 6 • RAID 10 • Synology Hybrid RAID (Up to 2-Disk Fault Tolerance) Agency Certification • FCC Class A • CE Class A • BSMI Class A • EAC • RCM • VCCI...
- Page 19 Please try to restart your RackStation or re-insert the drive(s), and then run the HDD/SSD manufacturer's diagnostic tool to check the health status of the drive(s). If you can log into DSM, please run the built-in S.M.A.R.T. test to scan the drive(s). If the problem remains unresolved, please contact Synology...
- Page 20 Section 5. License Limitations. The license set forth in Sections 1, 2 and 3 applies only to the extent that you have ordered and paid for the Product and states the entirety of your rights with respect to the Software. Synology reserves all rights not expressly granted to you in this EULA.
- Page 21 Arbitration Law and related enforcement rules of the country in which Synology Inc. was organized. In such cases, the arbitration will be limited solely to the dispute between you and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis.
- Page 22 Section 3. Limited Warranty and Remedies 3.1 Limited Warranty. Subject to Section 3.6, Synology warrants to the Customer that each Product (a) will be free of material defects in workmanship and (b) under normal use will perform substantially in accordance with Synology's published specifications for the Product during the Warranty Period.
- Page 23 Section 4. Limitations of Liability 4.1 Force Majeure. Synology will not be liable for, or be considered to be in breach of or default under this Warranty on account of, any delay or failure to perform as required by this Warranty as a result of any cause or condition beyond its reasonable control (including, without limitation, any act or failure to act by Customer).
- Page 24 Arbitration Association, except as otherwise provided below. The arbitration will be conducted before a single arbitrator, and will be limited solely to the dispute between Customer and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis. The arbitration shall be held in King County, Washington, U.S.A.
- Page 25 5.9 Entire Agreement. This Warranty constitutes the entire agreement, and supersedes any and all prior agreements, between Synology and Customer related to the subject matter hereof. No amendment, modification or waiver of any of the provisions of this Warranty will be valid unless set forth in a written instrument signed by the party to be bound thereby.
- Page 26 FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 27 この装置は、クラス A 機器です。この装置を住宅環境で使用すると電波妨 害を引き起こすことがあります。この場合には使用者が適切な対策を講ずる よう要求されることがあります。 VCCI 一 A...
