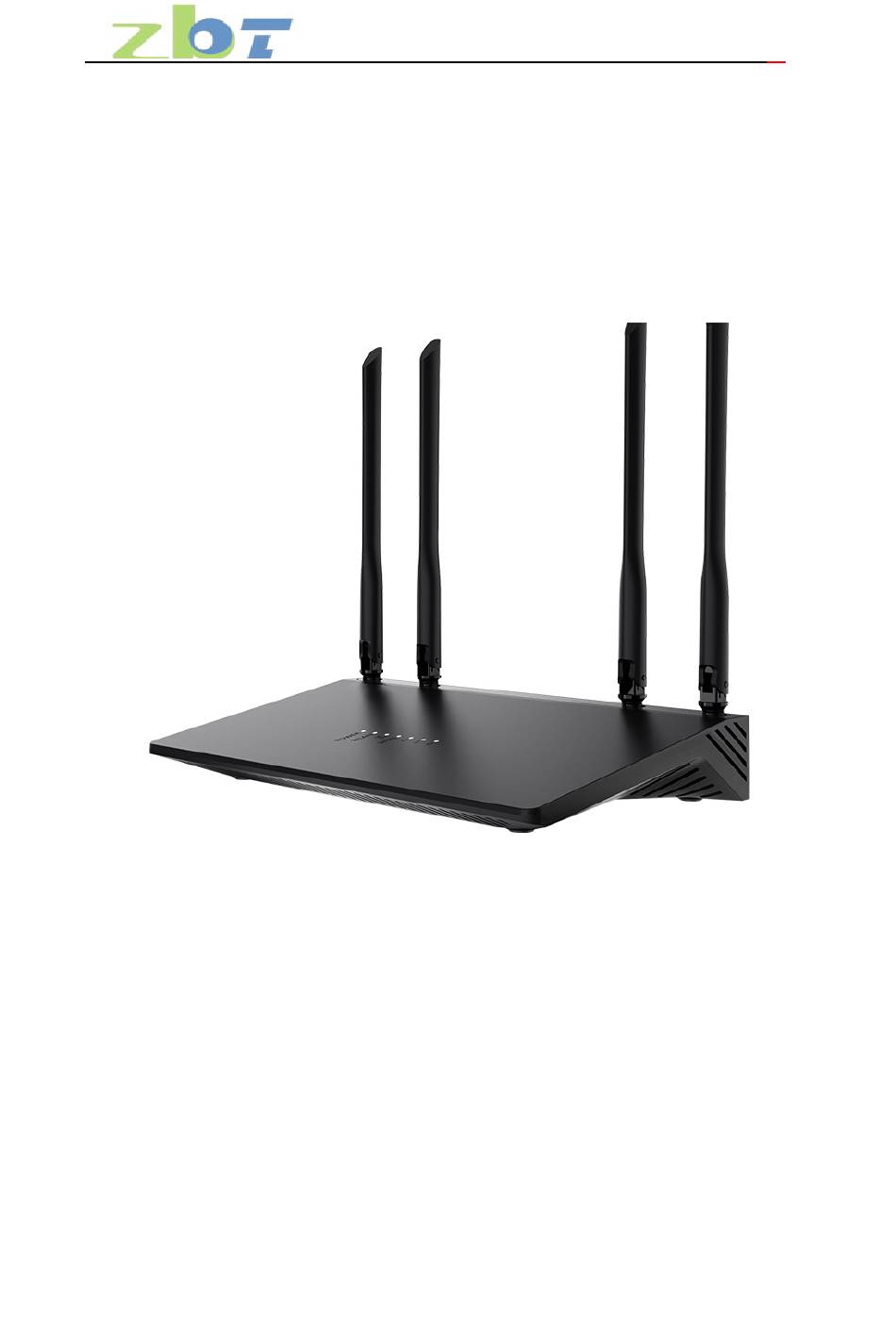

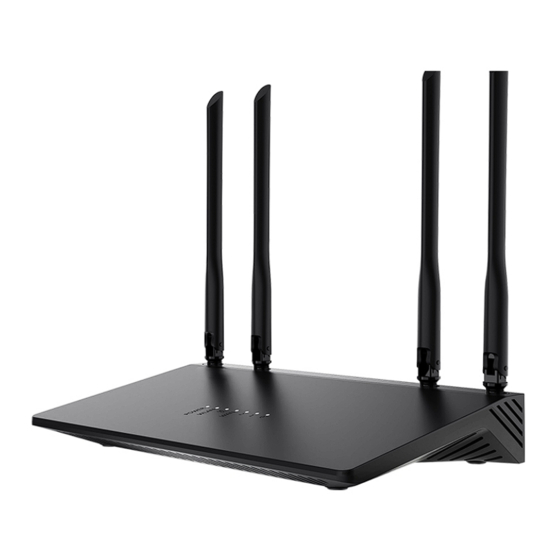

  • Page 1 ZBT International Limited Z6001AX-D Gigabit Ports WIFI 6 Mesh ROUTER 页 共 10 页 第...
  • Page 2 ZBT International Limited 页 共 10 页 第...
  • Page 3 ZBT International Limited 页 共 10 页 第...
  • Page 4: Brief Overview

    This document describes the electrical characteristics, RF performance, dimensions and application environment of Z6001AX-D. Under the introduction of this document, end users or developers can quickly understand the hardware functions of Z6001AX-D.It is a WiFi 6 home router, which can 页 共 10 页 第...
  • Page 5: Reference Standard

    ZBT International Limited access the Internet through WAN port, and then share the Internet through wireless WiFi 6 and 1000Mbps wired LAN. 1.2 Reference standard Relevant standards and specifications:  USB3.0/USB2.0 Bus Standard  IEEE802.11n/g/b/a/ac/ax  IEEE802.3/802.3u/802.ab 3 Main features of the product 1).Support IEEE 802.11ax/ac/n/11b/g standard.
  • Page 6 ZBT International Limited Button 1* Reset button 2* external omnidirectional 5dBi 2.4G antennas, antennas 2* external omnidirectional 5dBi 5.8G antennas 4.2 Function of indicator light Always on when the power is connected, not on when the power fails or is Power LED not connected to the power supply The Internet port is always on, flashes when there is data communication, the...
  • Page 7 ZBT International Limited DDR3 256MB Flash 128MB NAND FLASH 5 Description of power supply and power consumption minimum Rated Test conditions Maximum Value value Value working voltage T A = 25°C Absolute T A = 25°C 5.5V working voltage VIN=12V, T A = Working current 0.6A 0.8A...
  • Page 8 ZBT International Limited 802.11AC -72dBm VHT20@ MCS8 802.11AC -70dBm VHT40@ MCS9 802.11AX -70dBm HE20@MCS11 802.11AX -76dBm HE40@MCS11 802.11B 11Mbps 24dBm 802.11G 54 Mbps 22dBm 802.11N HT20@ 21dBm MCS7 802.11N HT40@ 20dBm MCS7 Transmitting 802.11AC power 20dBm VHT20@ MCS8 802.11AC 19dBm VHT40@ MCS9 802.11AX 19dBm...
  • Page 9 ZBT International Limited 802.11N HT40@ -74dBm MCS7 802.11AC -72dBm VHT20@ MCS8 802.11AC -70dBm VHT40@ MCS9 802.11AC -66dBm VHT80@ MCS9 802.11AX -70dBm HE20@MCS 11 802.11AX -66dBm HE40@MCS 11 802.11AX -64dBm HE80@MCS 11 802.11G 54 Mbps 22dBm 802.11N HT20@ 21dBm MCS7 802.11N HT40@ 20dBm MCS7 Transmitting...
  • Page 10 ZBT International Limited User Manual 1PCS certificate 1PCS Ethernet Super Cat5 cable 1PCS cable 9 Product working environment requirements Working 0℃ - 40℃ temperature Store temperature -40℃ - 70℃ Working humidity 10% - 90%RH Non condensing Store humidity 5% - 90%RH Non condensing 10 Software configuration information Default IP 192.168.1.1...
