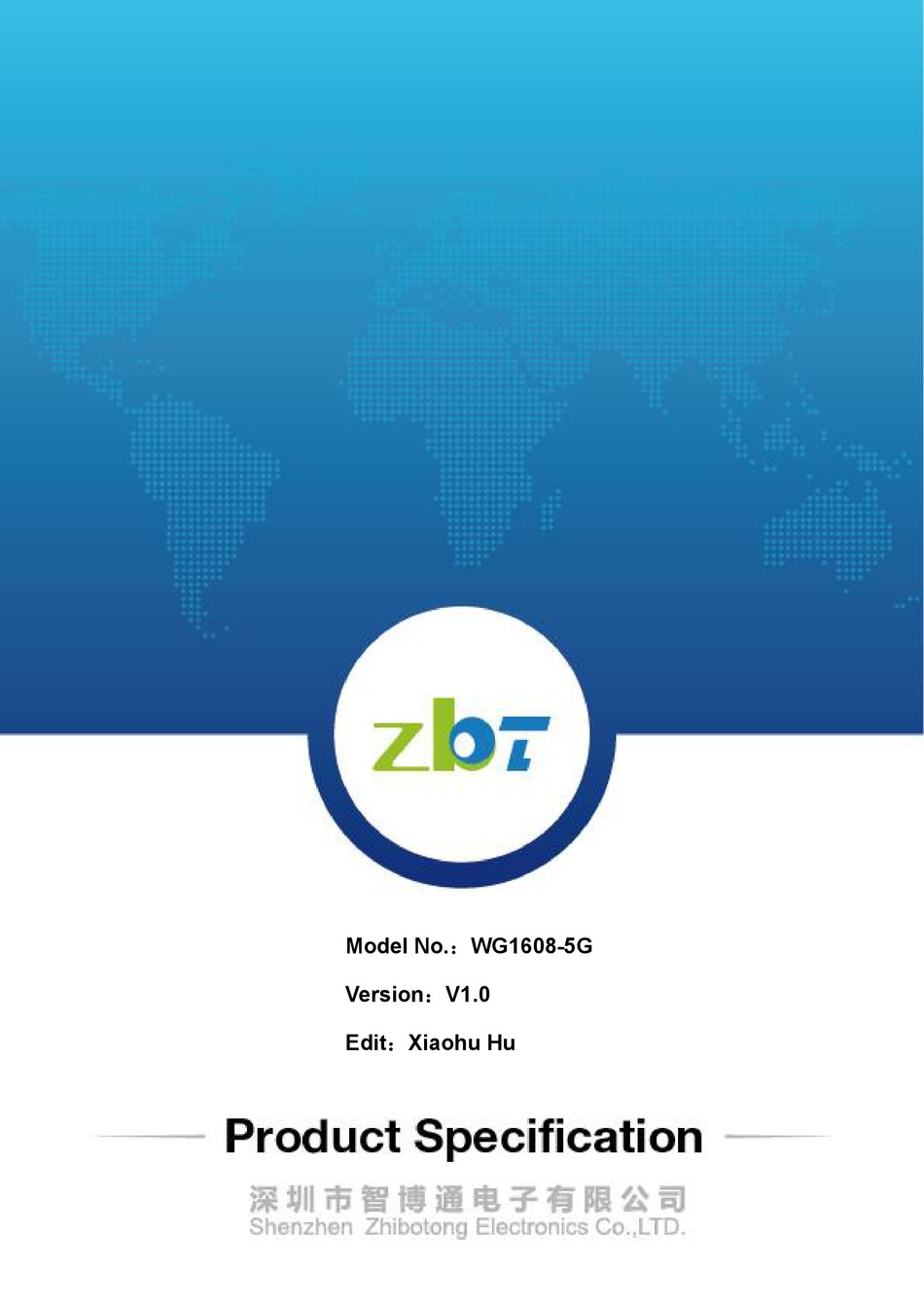

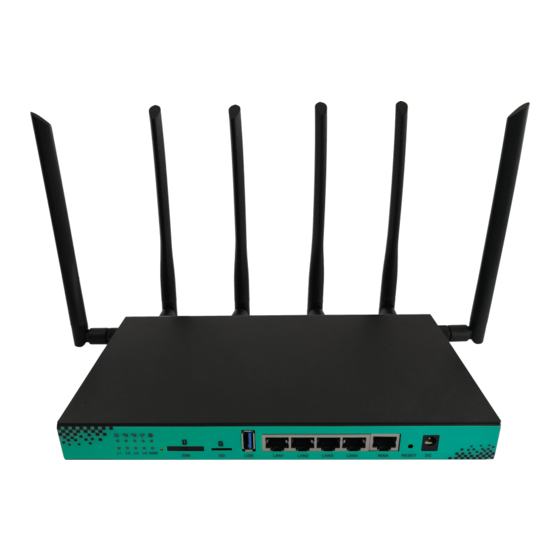

- Page 1 深圳市智博通电子有限公司 Model No.：WG1608-5G Version：V1.0 Edit：Xiaohu Hu 页 共 10 页 第...
-
Page 2: Table Of Contents
1. Summary 1.1 Brief overview This document describes the electrical characteristics, RF performance, size, and application environment of WG1608-5G. Under the introduction of this document, end users or developers can quickly understand the hardware functions of WG1608-5G. 页 共 10 页... -
Page 3: Reference Standard
深圳市智博通电子有限公司 WG1608-5G is 5G CPE product for home use. It accesses the Internet through 5G mobile communication dial-up or 1000Mbps WAN port dial-up, and then shares the Internet network through wireless WiFi 5 and 1000Mbps wired LAN. 1.2 Reference standard Related standard specifications: USB3.0/USB2.0 Bus standard... - Page 4 深圳市智博通电子有限公司 3. Main features of the product Adopt MT7621A project, MIPS dual-core CPU, the main frequency is up to 880MHZ 2.4G rate up to 300Mbps, 5.8G rate up to 867Mbps, 5.8G supports MU-MIMO Using high-speed 256MB DDR3 with 16MB Nor Flash ...
-
Page 5: Hardware Function
深圳市智博通电子有限公司 communication module External standard SIM card interface, support SIM/USIM card External high gain omnidirectional antenna, wireless signal 360 degrees without dead angle 4. Hardware function 4.1 Hardware interface introduction 1*WAN port,1000Mbps supports auto flip (Auto MDI/MDIX) Compliant with IEEE 802.3/802.3u/802.ab Ethernet Port 4*LAN port,1000Mbps support auto flip (Auto MDI/MDIX) -
Page 6: Hardware Platform Introduction
深圳市智博通电子有限公司 Connect to the Internet port always bright, flashes when LAN3 LED have data communication Connect to the Internet port always bright, flashes when LAN4 LED have data communication Always bright when power on, No light when the power Adapter LED supply is faulty or not connected Open 2.4G WIFI function is always bright, flashes when 2.4G WIFI LED... -
Page 7: Wifi Wireless Parameter Introduction
深圳市智博通电子有限公司 Operating T A = 25°C Voltage Absolute working T A = 25°C voltage Working VIN=12V，T A = current 25°C Please use the ZBT standard power adapter to supply power to this product. If not use the ZBT standard power supply, please strictly follow the above power supply specifications to supply power to this product, otherwise it will damage the product. -
Page 8: Wifi 5.8G
深圳市智博通电子有限公司 Power 54 Mbps OFDM BW=20MHz MCS 7 BW=40MHz MCS 7 6.2 WIFI 5.8G Compatible with IEEE 802.11 a/ac, support IEEE 802.11 d/e/h/i/k/r/w; support 20MHz, 40MHz, 80MHz, adopt 2T2R MIMO antenna technology, the highest connection rate is up to 867Mbps. The following is a description of the power frequency, receiving sensitivity, and transmit power of 5.8G WIFI. -
Page 9: Mobile Communication Function
深圳市智博通电子有限公司 Weigh（KG） 1.22KG Case Size L*W*H=240MM*135MM*25MM Color Black Power 12V/2A 1PCS Adapter Manual 1PCS Certificate 1PCS conformity Cable Category 5 network cable 1PCS Accessories SIMcard 1PCS cover 5G move antenna compatible 4G\3G\2G frequency band 4PCS Antennas 1*GPS antenna 2.4G and 5.8G dual frequency antenna 2PCS 8. -
Page 10: Software Configuration Information
深圳市智博通电子有限公司 10. Software configuration information Default IP 192.168.1.1 Username root/admin Password WIFI-XXXXXX (X is the last 6 digits of MAC address), no 2.4G SSID password by default WIFI-5G-XXXXXX (X is the last 6 digits of MAC address), 5.8G SSID no password by default Above is the general default preparation information of the product.
