Summary of Contents for Ocean Matrix OMX-HDMI-HDB1X8

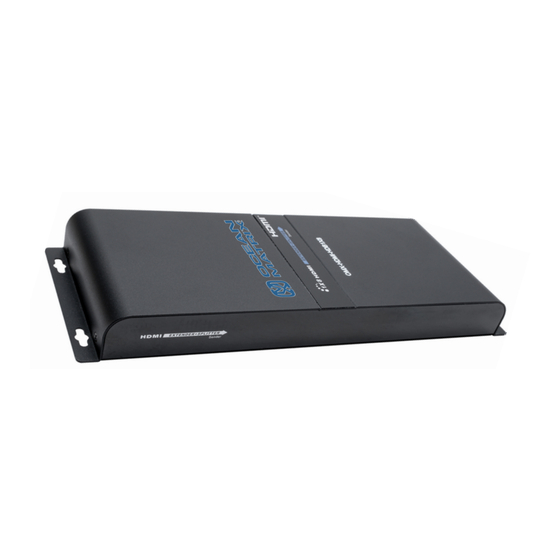

- Page 1 OMX-HDMI-HDB1X8 Ocean Matrix 1x8 HDMI Extender Splitter Set - 1080p60 Over CAT5/5e/6...
-
Page 2: Specifications
HDMI cable limitations via HDbitT technology. The OMX-HDMI-HDB1X8 delivers full 1080P HDMI signal up to 394 feet over a single Cat6 network cable. An IR signal transmission allows for remote control of the source at a secondary location with IR extension cables (included). -
Page 3: Operation Controls And Functions
Operation Controls and Functions: Transmitter: Receiver:... - Page 4 Operation Controls and Functions: 1 in 8 Out 1080p@60Hz Lower Latency 120m Transmission Lightning Protection IR Passback Plug and Play 7x24 Hours Surge Protection ESD Protection...
-
Page 5: Installation
Installation: Cat6 Network Cable - follow the IEEE-568B wiring standard: Orange/White Orange Green/White Blue Blue/White Green Brown/White Connection: Connect HDMI input with HDMI output of source device Connect IR blaster extension cable to the IR extender out port Connect RJ45 port with RJ45 input port of HDMI extender RX Connect HDMI output of HDMI extender RX to HDMI input of HDTV and set the source input to the correct HDMI input channel Troubleshooting:... -
Page 6: Product Service
PRODUCT SERVICE Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged (b) Objects or liquids have gotten into the unit (c) The unit has been exposed to rain (d) The unit does not operate normally or exhibits a marked change in performance;...
