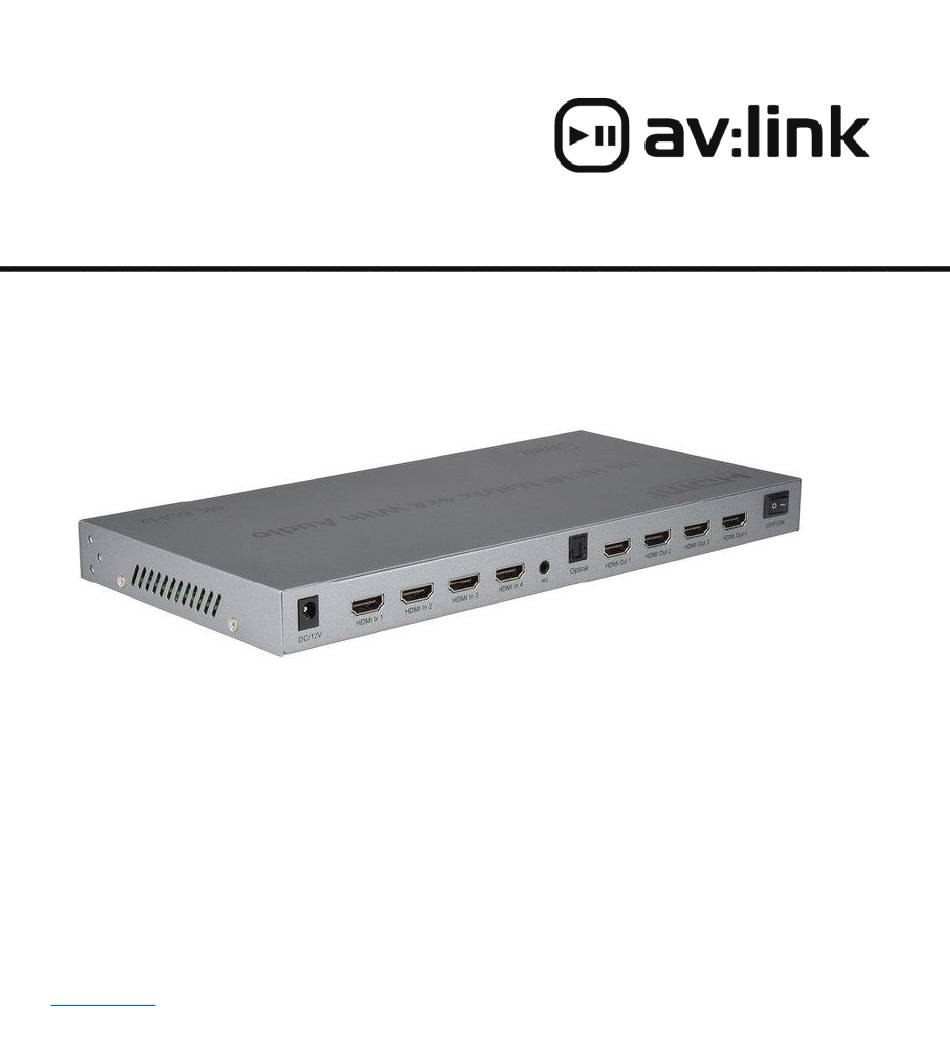

4K HDMI 2.0 Matrix 4x4
Item ref: 128.850UK
User Manual
www.avsl.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 128.850UK and is the answer not in the manual?

Questions and answers

Summary of Contents for AV Link 128.850UK

  • Page 1 4K HDMI 2.0 Matrix 4x4 Item ref: 128.850UK User Manual www.avsl.com...
  • Page 2 30m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz Max. working current 800mA Operating temp range -15°C to +55°C Power adaptor Input: AC(50Hz, 60H) 100-240V, Output: DC12V/1A Dimensions 276x143x26mm Weight 720g Application diagram: www.avsl.com 128.850UK User Manual...
  • Page 3 3: IR --- IR port; 9: Optical --- Optical port; 4: RS232 --- RS232 port; 10: HDMI Out1-4 --- HDMI Output 1-4 port; 5: DIP --- EDID; 11: OFF/ON --- Power switch; 6: DC/12V --- DC/12V power port; www.avsl.com 128.850UK User Manual...
  • Page 4 Errors and omissions excepted. Copyright© 2023 AVSL Group Ltd, Unit 2 Bridgewater Park, AVSL (Europe) Ltd, Unit 3D North Point House, Taylor Road, Trafford Park, Manchester. M41 7JQ. North Point Bus. Park, New Mallow Road, Cork, Ireland. www.avsl.com 128.850UK User Manual...
