NHW300DT | NHW600DTP
WIRING LOOM
OWNERS MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the NIGHT HAWK NHW600DTP and is the answer not in the manual?

Questions and answers

Related Manuals for Bushranger NIGHT HAWK NHW600DTP

Summary of Contents for Bushranger NIGHT HAWK NHW600DTP

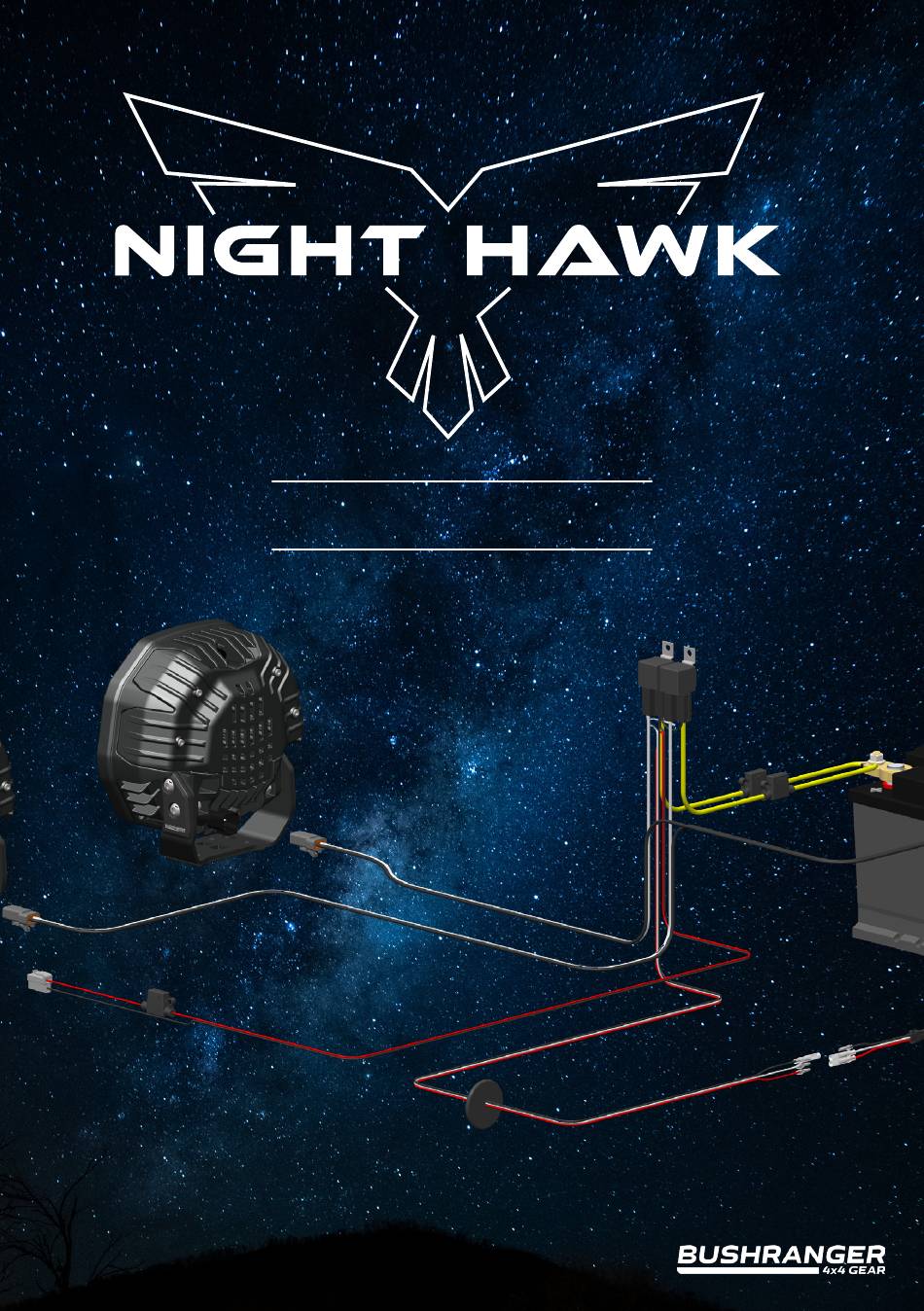

  • Page 1 NHW300DT | NHW600DTP WIRING LOOM OWNERS MANUAL...
  • Page 2 To take full advantage of this product, please read this manual carefully before using. Retain this manual for future reference for installation and warranty.

  • Page 3: Table Of Contents

    Contents Overview Specifications Installation Installation Guide Wiring Diagrams Warranty Policy...
  • Page 4 IMPORTANT! Read Carefully • We recommend these wiring looms to be fitted by a qualified automotive electrician. • Suitable for 12V automotive DC electrical systems only. • A forward facing light system may be used only as an auxiliary to high beam.

  • Page 5: Overview

    OVERVIEW Overview SPECIFICATIONS NHW300DT NHW600DTP Part No. Description Night Hawk 300W 12V Night Hawk 600W 12V Driving Light Wiring Loom. Driving Light Wiring Loom Fitting Time 60 Minutes (approx.) 60 Minutes (approx.) Input Voltage 12VDC 12VDC Power Plugs 2 x Deutsch DT06 (2 pin) 2 x Deutsch DTP06 (2 pin) Current Rating (max) 26A total (13A per plug)

  • Page 6: Installation

    INSTALLATION Installation Guide Fitting Time: 60 Minutes (Approximately) Remove the negative (-) cable of the battery to prevent short circuits. Lay out the wiring loom in WARNING the engine bay and locate a RELAY convenient spot to mount the relay/s. Refer to relay mounting note here: HARNESS MOUNT RELAY IN A POSITION WHERE MUD AND WATER CANNOT...
  • Page 7 INSTALLATION For negatively switched vehicles • Connect the red wire to the positive (+) side of the high beam circuit; commonly a constant positive (+) wire at the headlight or positive (+) terminal of vehicles battery. • Connect the black wire to the negative (-) side of the high beam circuit; commonly the negative (-) high beam switching wire at the headlight.

  • Page 8: Wiring Diagrams

    WIRING DIAGRAM | NHW300DT NHW300DT Wiring Diagram Night Hawk Wiring Loom...
  • Page 9 NHW600DTP | WIRING DIAGRAM NHW600DTP Wiring Diagram Night Hawk Wiring Loom...

  • Page 10: Warranty Policy

    WARRANTY POLICY Warranty Policy Our Warranty We warrant to you that the Kingsley product is free from defects in workmanship and materials for the warranty period. Fitting and use Please ensure you: a. fit the Kingsley product in accordance with the product information and all relevant vehicle safety and compliance laws b.
  • Page 11 Warranty period NHW300DT | NHW600DTP - WIRING LOOM - 12 Months. Kingsley Enterprises Pty Ltd (ABN 23 001 592 749) E: sales@bushranger.com.au We/Us A: 6A Brooks Road, Ingleburn NSW 2565 P: 1800 654 767 W: www.bushranger.com.au...
  • Page 12 Kingsley Enterprises PTY. LTD. Free Call | 1800 654 767 (Australia Only) International | +61 2 8700 0400 0264-220 Email | sales@bushranger.com.au Address | 6A Brooks Road, Ingleburn NSW 2565...

This manual is also suitable for:

Night hawk nhw300dt
