Connecting the Video Input

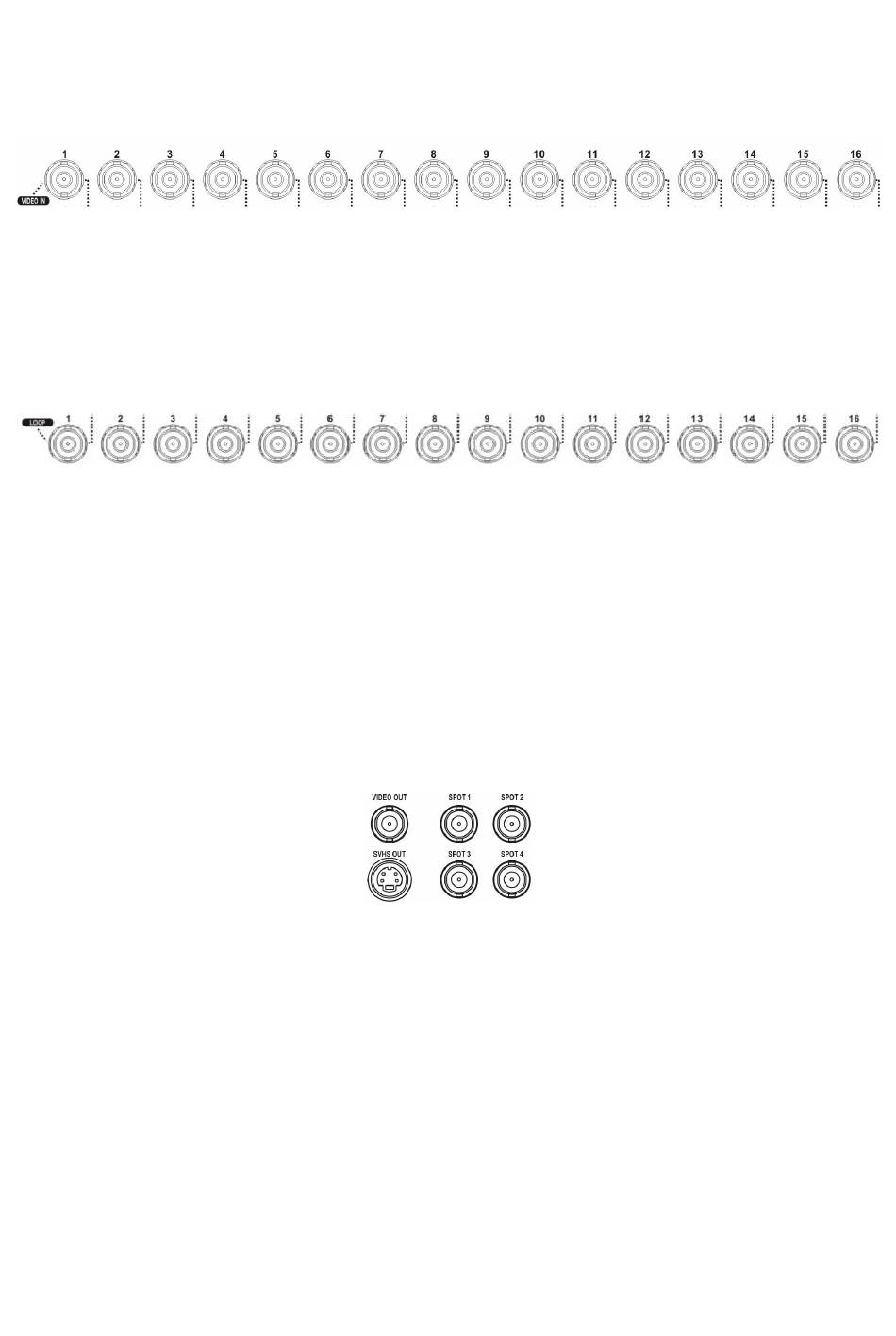

Figure 3 — Video input connectors.
Connect the coaxial cables from the video sources to the BNC Video In connectors.
Connecting the Loop-Through Video
Figure 4 — Video Loop-Through connectors.
If you would like to connect your video source to another device, you can use the Loop BNC
connectors.
NOTE: The Loop BNC connectors are auto terminated. Do NOT connect a cable to the
Loop BNC unless it is connected to a terminated device because it will cause poor
quality video.
Connecting the Monitor
Figure 5 — Video Out connectors.
Connect the main monitor to either the Video Out or SVHS Out connector.
NOTE: If your main monitor has an SVHS input, use it because it will give you better
quality video display.
NOTE: The Video Out (BNC) and SVHS Out connectors may be connected to individual
monitors for simultaneous operation.
Up to four Spot monitors can be connected to the DVR. Connect the spot monitors to the SPOT
1, SPOT 2, SPOT 3 and SPOT 4 connectors as needed.
NOTE: When the DVR is in the Search mode, it can display live video on the SPOT 1
monitor as displayed on the main monitor during the live mode.
