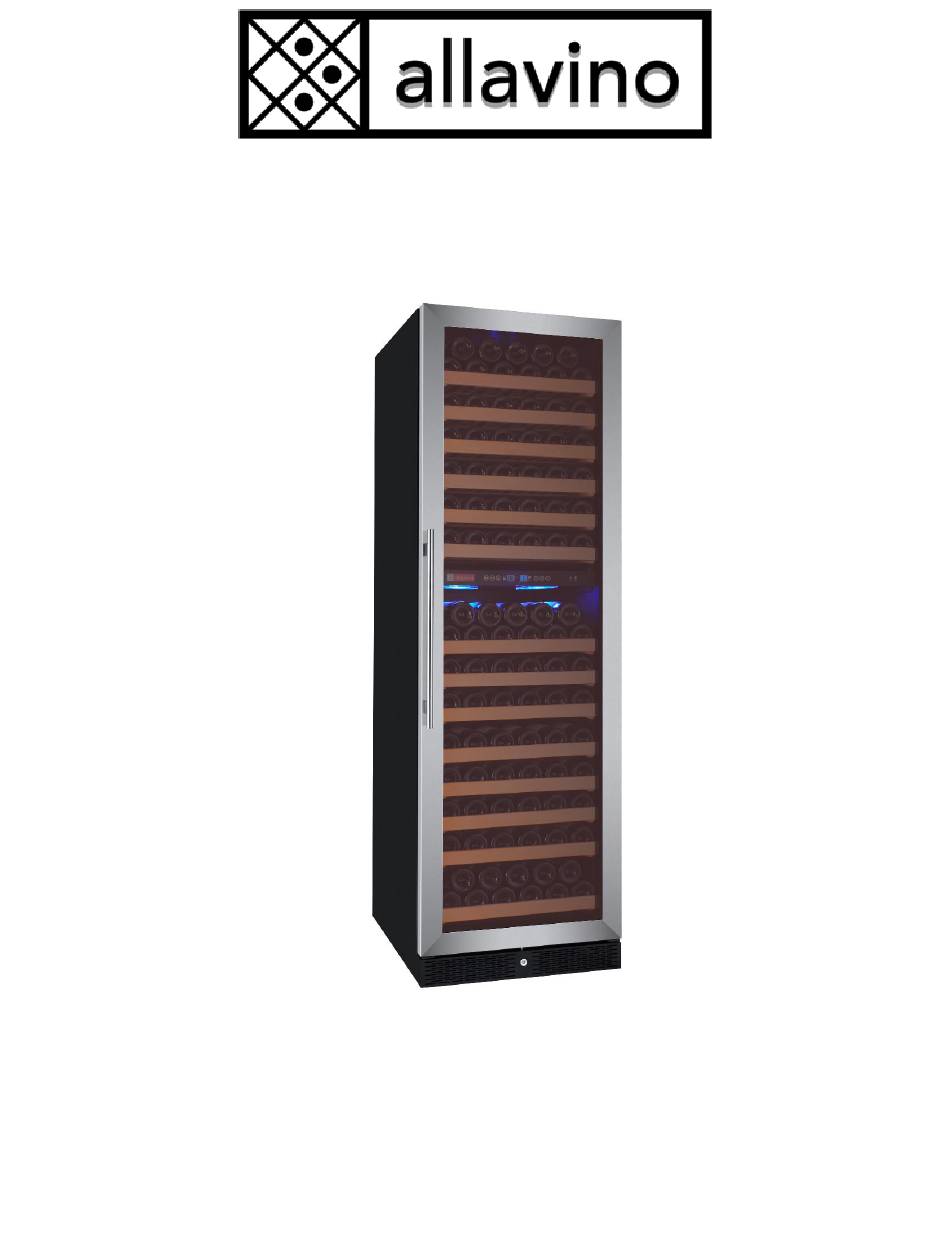

INSTRUCTION MANUAL

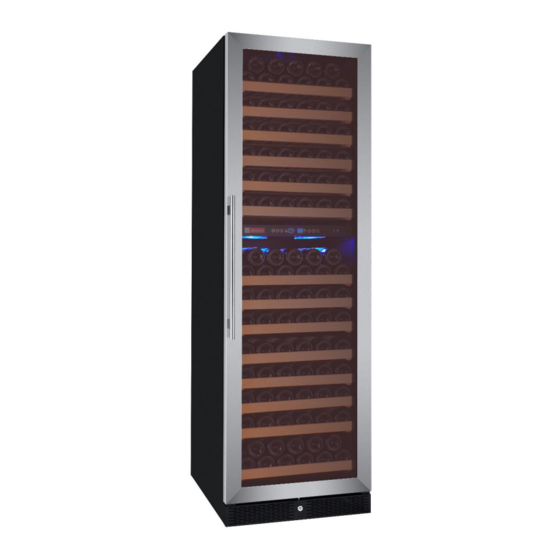

FREESTANDING WINE COOLER
MODEL：YHWR172-2
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Allavino has a policy of continuous improvement on its products and
reserves the right to change materials and specifications without notice
ALLAVINO
8520 Miralani Dr., San Diego, CA 92126
www.allavino.com
1
1-888-980-4809
Advertisement
Table of Contents
Related Manuals for Allavino YHWR172-2BWRN
Summary of Contents for Allavino YHWR172-2BWRN
- Page 1 FREESTANDING WINE COOLER MODEL：YHWR172-2 BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Allavino has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice ALLAVINO 8520 Miralani Dr., San Diego, CA 92126 www.allavino.com...
-
Page 2: Table Of Contents
Safety Tips ............................. Installation Instructions ............................. Anchoring to the Wall ............................. Operation Instructions ............................. Setting Temperature ............................. Care and Maintenance ............................. Racking Configuration ............................. Troubleshooting ……………………………………………………………………………………………………………………………….. Technical Specifications ……………………………………………………………………………………………………………………………….. 10-11 Rating Label ............................. Energy Guide ............................. Warranty Information ............................. www.allavino.com 1-888-980-4809... -
Page 3: Diagram And Description
1. Glass Door Frame 2. Door Handle 3. Upper Zone Air Intake 4. Lower Zone Air Intake 5. Upper Zone Fans 6. Wooden Shelf 7. Digital Control Panel 8. Lower Zone Fan 9. Security Lock 10. Adjustable Feet www.allavino.com 1-888-980-4809... -
Page 4: Safety Tips
California Proposition 65 Warning: This product contains a chemical or chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Failure to heed these safety warnings may result in extensive product damage, serious personal injury, or death. www.allavino.com 1-888-980-4809... -
Page 5: Installation Instructions
To install the grill, use the six provided screws and attach it to the bottom of the cabinet. Two screws go on each side and two screws go on top of the grill as shown. www.allavino.com 1-888-980-4809... -
Page 6: Anchoring To The Wall
Tighten the straps until snug. Do not overtighten. CAUTION: This product is not intended to be a substitute for proper supervision. Manufacturer assumes no liability for improper installation or excessive loads placed on screws, brackets, or straps. Straps should be periodically adjusted, tested, and replaced. www.allavino.com 1-888-980-4809... -
Page 7: Operation Instructions
Your Allavino Wine Cellar includes an operating panel on the front of the unit. The operating panel includes several features to operate and control the temperature of the wine refrigerator, including: Light –... -
Page 8: Care And Maintenance
There are levers on each side of the shelf near the rollers. Left the lever on the left hand side and push down the lever on the right hand side to remove the shelf from the tracks. This Allavino Wine Cellar has 12 shelves that can hold up to 11 bottles each and 2 shelves that can hold up to 20 bottles each. -
Page 9: Troubleshooting
E1: Upper sensor short circuit E2: Upper sensor open circuit E3: Lower sensor short circuit E4: Lower sensor short circuit If you see one of the above error codes, please contact warranty support or an authorized technician. www.allavino.com 1-888-980-4809... -
Page 10: Technical Specifications
76.5" H x 23.75" W x 27" D (28.75” w/ handle) Weight 287 lbs. Voltage / Frequency 115v / 60 Hz Running Amps 2.3 A Upper Zone: 40°F - 56°F Operating Temperature Lower Zone: 54°F - 65°F Maximum Ambient Temperature 90°F www.allavino.com 1-888-980-4809... - Page 11 1-888-980-4809...
-
Page 12: Rating Label
1-888-980-4809... -
Page 13: Energy Guide
1-888-980-4809... -
Page 14: Warranty Information
WHAT IS COVERED LIMITED ONE-YEAR WARRANTY: For one year from the date of purchase by the original owner, Allavino will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Allavino will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual.
