Owner's Manual

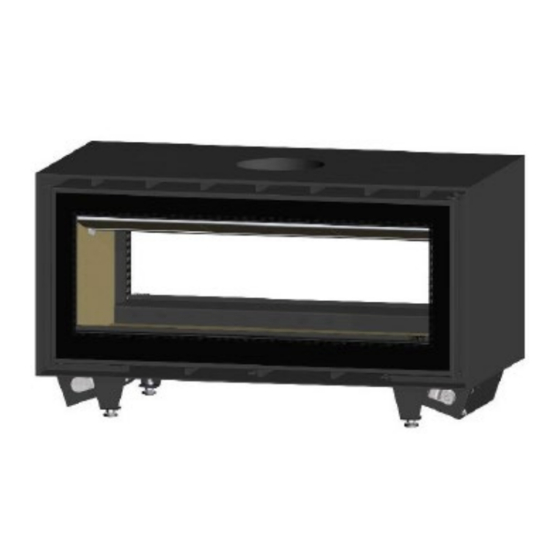

ADF LINEA 100B DUO and DUO L
Freestanding Appliances
Supplied by:
Castworks Pty Ltd
12 Fiveways Boulevard
Keysborough VIC 3173
TESTED IN ACCORDANCE WITH AS/NZS 4012:2014 & AS/NZS 4013:2014
Please read this manual thoroughly before installing and starting your free-standing appliance.
Keep these instructions for future reference
V18062018
Advertisement
Table of Contents
Related Manuals for ADF LINEA 100B DUO
Summary of Contents for ADF LINEA 100B DUO
- Page 1 Owner’s Manual ADF LINEA 100B DUO and DUO L Freestanding Appliances Supplied by: Castworks Pty Ltd 12 Fiveways Boulevard Keysborough VIC 3173 TESTED IN ACCORDANCE WITH AS/NZS 4012:2014 & AS/NZS 4013:2014 Please read this manual thoroughly before installing and starting your free-standing appliance.
-
Page 2: Table Of Contents
Index 1. Introduction 2. Appliance Layout 3. Technical Specifications 4. Installation Instructions Flue Outlet 5. Fan 6. Installing the bricks and baffles 7. Instructions for use 8. Maintenance and cleaning 9. Troubleshooting 10. Warranty 11. Data Label Linea Duo 100B L Linea Duo 100B... -
Page 3: Introduction
Introduction Congratulations on your purchase of your new ADF woodfire appliance! Years of extensive research and dedication to innovation and quality, since 1976, has resulted in these beautifully designed European appliances, constructed to strict Portuguese and European legislation, and tested and Certified to the Australian Emissions, Efficiency and Safety standard requirements guaranteeing excellent performance. - Page 4 Do not use driftwood or coastal wood with high salt content, it will quickly damage the heater. All ADF appliances are designed to burn firewood and firewood only, with less than 20% moisture content. The use of unseasoned firewood or firewood with moisture or other types of fuel not recommended will void the warranty.
-
Page 5: Appliance Layout
2-Appliance Layout Note single sided unit shown. Pos. Designation Door lever, Tool supplied for Door and Air Control Combustion Air control (Use tool): Open (+) slide to the right Close (-) slide to the left Vermiculite brick lining Primary convection outlet – comes out each side above both the doors. Secondary convection outlet (hot air distribution for ducting) Inbuilt only Smoke Outlet –... -
Page 6: Technical Specifications
3- Technical Specification Specifications TESTED IN ACCORDANCE WITH Unit AS/NZS 4012:2014 & AS/NZS 4013:2014 Burning Harwood Maximum Avearge Heat Output 18.9 Maximum Peak Heat Output 20.4 Overall Average Efficiency Particulate Emission Factor g/kg Maximum firewood load See page Minimum clearance distances from combustible materials Flue Diameter Burn only Harwood Recommended Fuel... - Page 7 WARNINGS: A wood burning heater is, by its nature, an appliance that operates at high temperatures, so it is necessary to take into account potential risk factors that should be avoided at all costs. Children must be kept away from any combustion appliance and supervised in the room at all times. Installation must be carried out by a licenced and certified installer.
- Page 8 WARNINGS: CAUTION: MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT SOURCES OR MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENETS MAY RESULT IN HAZARDOUS CONDITIONS. WHERE SUCH ACTION IS CONSIDERED, THE MANUFACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE. CAUTION: CRACKED AND BROKEN COMPONENTS, e.g. GLASS PANELS OR CERAMIC TILES, MAY RENDER THE INSTALLATION UNSAFE.
- Page 9 The Flue terminal must meet the minimum height and external clearances for the flue, according to AS/NZ 2918:2001, see the diagram shown below on page 12. The ADF DUO Linea 100 was tested with a 200mm (8”) triple skin flue kit in a manner confirming to joint Australia/New Zealand Standard 2918:2001.
- Page 10 The appliance and flue were tested at the following clearances: The side clearance to combustible walls, in line with the front of the door glass, is 350mm. The side clearance to the side of the heater is 150mm to combustibles, ie island bench or log storage or similar. The clearances to combustibles in front of either glass door is 1200mm.
-
Page 11: Flue Outlet
Flue Installation Flue type: Triple skin flue, 200mm/250mm/300mm or 8”/10”/12”. The Active 200mm flue must be a tight fit into the heater collar. The heat shield in the room is a solid 10” decorative flue shield. The heater must have its own dedicated flue. The active flue must be 8” for the entire length of the flue, and always less than 45 degrees from the vertical. - Page 12 NOTE: Flue exit MUST also be as high as any nearby structure within a 6m Radius. ( AS 2918:2018 ) External Requirements Refer to AS/NZS 2918:2018 Note: All external air vents & ceiling penetrations must be bird & rodent proofed with permanently fixed screens...
-
Page 13: Fan
5- Fan (for optional inbuilt fan available). • Must be installed in accordance with AS/NZS 3000. • Must be installed to the manufacturer’s specifications. • Power supply must be installed by a licensed electrician. • If the power cable is damaged, for any reason, do not use. Have the cord replaced immediately. - Page 14 Important Recommendations The heater must be installed by a qualified and accredited professional. Caution: the outside surfaces of the equipment are hot; wear suitable protective gloves whenever you need to touch hot parts of the appliance and when loading firewood into the heater. Do not use the appliance as your incinerator.
-
Page 15: Installing The Bricks And Baffles
6- Installing the bricks and baffles 1. First insert the side (1 and 2) and base bricks (3) – may be factory assembled. 2. Stainless-steel baffle support bars – lay the central one across the middle on the side bricks, and the outer “C” channel support bars (6) front and back. -
Page 16: Instructions For Use
7- Instructions for Use Combustion Control: Open (+), slide to the right Close (-), slide to the left Note:- single sided unit shown Ignition 1. It is extremely important, when first using or lighting for the first time for the season, to thoroughly examine the chimney and to make sure it is clean and unobstructed. - Page 17 4. Keep the ash bed away from the primary air slots at the front of the fire. Notes: Only reload with wood when the previous load has been fully consumed, do not overload the combustion chamber. For well insulated houses or forced air ventilation in adjacent spaces, it is advisable to place a ventilation grid on an outside wall near the equipment of at least 100 cm2 and always be unobstructed.
- Page 18 Use only ADF recommended replacement parts. Fire Hazard Your ADF equipment has been designed in accordance with existing legislation and in order to minimize any risk of fire in the chimney, however in such cases: 1. Keep calm and make sure the area is safe.
-
Page 19: Troubleshooting
9-Troubleshooting If you comply with the instructions given in this manual, you should not have any major problem in enjoying your appliance. However, before requesting service, please check the following: 1. All the instructions given in this manual are complied with. 2. -
Page 20: Warranty
4. The Warranty is limited to the replacement / repair by the ADF or its agent of the components known to be damaged and excludes any other type of cover or damages. - Page 21 _______________________ Client Signature Note: The Warranty is limited to the replacement / repair by ADF or its agent of the components known to be defective and excludes any other type of coverage or compensation such as the costs of transportation, removal or reinstallation of the equipment.
-
Page 22: Data Label
11 – Data Label found on appliance TESTED BY: TEST REPORT NO: AUSTRALIAN SOLID FUEL TESTING Unit ASFT20084-1 3 GARDEN ST, MORWELL, DATED: 08/2020 VIC 3840 AUSTRALIA WHEN TESTED IN ACCORDANCE WITH AS/NZS 4012:2014 & AS/NZS 4013:2014 Burning Hardwood Maximum Avearge Heat Output 18.9 Overall Average Efficiency Particulate Emission Factor...
