ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS
1/11/19

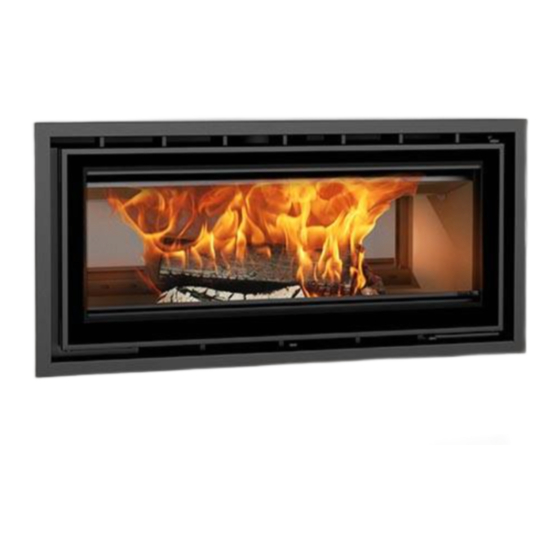

LINEA 100 NMV DUO DOUBLE SIDED INBUILT HEATER
ZERO CLEARANCE BOX SUPPLEMENT INSTRUCTIONS
Must be used in conjunction with the Installation Manual for the
ADF 1000 NMV / LINEA MODELS.
Supplied by:
Castworks Pty Ltd
57 Industrial Drive
Braeside VIC 3195
TESTED IN ACCORDANCE WITH AS/NZS 4013:2014 and AS/NZS 2918.
Please read this manual thoroughly before installing and starting your free-standing
appliance.
Keep these instructions for future reference.
1
Advertisement
Related Manuals for ADF LINEA 100 NMV DUO
Summary of Contents for ADF LINEA 100 NMV DUO
- Page 1 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 LINEA 100 NMV DUO DOUBLE SIDED INBUILT HEATER ZERO CLEARANCE BOX SUPPLEMENT INSTRUCTIONS Must be used in conjunction with the Installation Manual for the ADF 1000 NMV / LINEA MODELS.
- Page 2 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 Build out dimensions and finishing shown here for builders preparation. For the ZCB assembly, go to page 6 below. Heater Cavity MUST BE VENTILATED. For 2 options see page 6.
- Page 3 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 Dimensions for Build out (Front elevation): 1355mm 100mm 100mm 300mm 1375mm Fig. 2 • The hearth beneath the unit must include 6mm cement sheet to 1275mm x 1240mm 550mm deep. The hearth in front of the unit must include 6mm cement sheet with minimum 1240mm x 300mm deep.
- Page 4 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 Allowance for side cabinetry (Front elevation): 100mm 350mm 100mm 100mm 300mm Fig. 3 • If the heater is required to be built into cabinetry to either side of the heater, the minimum clearance to a solid combustible wall is 350mm;...
- Page 5 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 Dimensions for Build out (side Elevation): Vent 300mm below cavity/ceiling cap. Noggin 300mm above ZCB MUST have 70mm clearance from outer Flue Casing to noggin / combustible material. Clearance of 1200mm in front of glass to combustible material.
- Page 6 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 Minimum Dimensions for Heat Resistant board: 1445mm to 45mm stud centres. 1355mm opening 300mm above ZCB 1420mm Fig. 4 • Non Combustible Board – Fibre Cement Sheet of 12 or 18mm thick to prevent cracking, or Skamol Board 40mm or 50mm thick.
- Page 7 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 Ventilation for the Inbuilt Heater Space Pitched Roof with Ceiling Space • The ceiling must have an opening around the 12” (300mm) flue casing of a 350mm diameter hole, ie minimum of 25,529 mm2 evenly spaced around flue, i.e.
- Page 8 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 If ceiling is Raked solid ceiling, or Capped heater cavity Cowl Vent Roof opening as per 3.4.2.2 in AS2918:2018 Casing cover Flue pipe Inner casing 600 mm min. Outer casing Venting casing...
-
Page 9: Zero Clearance Box Assembly
ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 Zero Clearance Box Assembly: ZERO CLEARANCE BOX Parts Materials list - Check all parts supplied before beginning assembly. Stand Base assembly parts, 4 Shorter 1 x Base Panel with 6 ob-round air slots Uprights, 4 Side bearers with Tabs and 4 Long Rails, Hardware kit for Assy. - Page 10 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 STAND ASSEMBLY Step 1. Assemble the Stand. Make the 2 side (or end) frames first. For each end (side) use 2 of the Side Bearers (medium length with the cut out fold out tabs) and 2 of the shorter pieces (upstand legs).
- Page 11 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 Step 2. Join the 2 finished Rectangle side frames with the 4 long rails (left to right). Note the long rails go on the outside of the corner. The completed assembled base, with 4 long...
- Page 12 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 Note the tabs in the base side rails can also be used to fix the frame to the floor. Ensure the base is secured to the floor, using fixings appropriate for the flooring structure.
- Page 13 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 NOTE: When screwing 2 panels together through the existing holes , the screw should go though the larger hole first, then through the smaller hole, and cutting the thread in the smaller hole. Ie some holes may screw from the inside, some from the outside.
- Page 14 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 Step 4: Add the centre deflector to the middle of the base, this allows air flow into the base, but stops radiant heat from directly hitting any combustible material below.
- Page 15 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 One on the left and one on the right as shown in picture: Step 7: Fold up the tabs in the side rails and add self tapping screw through the side, to help hold the ZCB to the stand.
-
Page 16: Fitting The Flue
ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19 Step 8: Fitting the FLue The flue is raised off the top of the ZCB and the heater using these 2 brackets, orientated like below. The bottom of the bracket gets inserted into the ZCB. - Page 17 ADF 1000 NMV LINEA ZERO CLEARANCE BOX ASSEMBLY INSTRUCTIONS 1/11/19...
