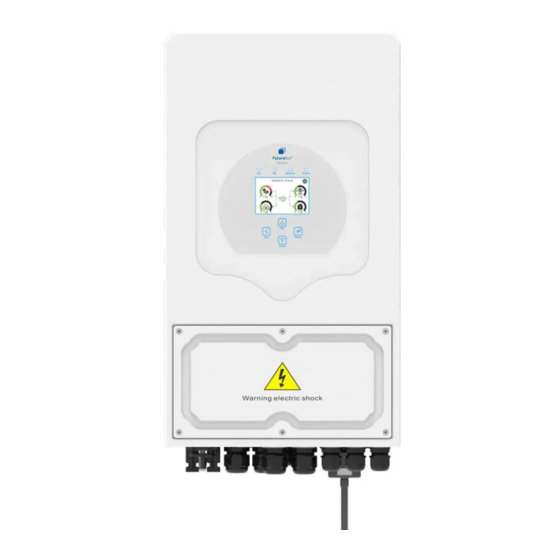

INSTALLATION MANUAL
HYBRID INVERTER
Optor Single
3K/3.6K/5K/6K
V 2023.06-MM
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3K and is the answer not in the manual?

Questions and answers

Related Manuals for FuturaSun 3K

Summary of Contents for FuturaSun 3K

  • Page 1 INSTALLATION MANUAL HYBRID INVERTER Optor Single 3K/3.6K/5K/6K V 2023.06-MM - 1 -...

  • Page 2: Table Of Contents

    CONTENTS INFORMATION REGARDING THIS MANUAL ..........................4 HOW TO USE THIS MANUAL ..............................4 1. SAFETY WARNINGS ................................4 2. DESCRIPTION OF THE PRODUCT ............................4 2.1 PRODUCT OVERVIEW ..............................5 2.2 PRODUCT DIMENSIONS ..............................6 2.3 PRODUCT FEATURES ..............................7 2.4 PRODUCT FEATURES ..............................
  • Page 3 5.4 MAIN SETUP MENU PAGE ............................31 5.5 BASIC SETTINGS ................................31 5.6 BATTERY SETTING ................................ 32 5.7 SYSTEM WORK MODE ..............................34 5.8 GRID SETTINGS ................................36 5.9 CEI 0-21 SELF-CHECK ..............................38 5.10 GEN PORT USE ................................40 5.11 ADVANCED FUNCTION ..............................

  • Page 4: Information Regarding This Manual

    Contents may be periodically updated or revised as a result of product development. The information contained in this manual is subject to change without notice. For a copy of the latest version of this manual please contact info@futurasun.it 1. SAFETY WARNINGS This section contains important safety and operation instructions.

  • Page 5: Product Overview

    2.1 PRODUCT OVERVIEW 1 : INVERTER INDICATORS 7: DRMs PORT 13 : ON/OFF BUTTON 2 : LCD DISPLAY 8: PARALLEL PORT 14: DC DISCONNECTOR 3 : FUNCTION BUTTONS 9: FUNCTION TERMINALS 15 : PV INPUT - 2 MPPTs 4 : BATTERY INPUT CONNECTORS 10 : GENERATOR CONNECTION 16 : BATTERY CABLE ENTRY 5 : PORT 485/METER...

  • Page 6: Product Dimensions

    2.2 PRODUCT DIMENSIONS - 6 -...

  • Page 7: Product Features

    2.3 PRODUCT FEATURES Self-consumption and feed into the grid Automatic restart Programmable power supply priority for the batteries or the grid Different operating modes: OnGrid, OffGrid and EPS Battery charging current and voltage selectable from display depending on application Display-selectable battery charging priority (grid, solar, generator) Compatible with grid or generator power supply Overload, overtemperature and short-circuit protection Smart battery charger design for optimised battery performance...

  • Page 8: Installation

    3. INSTALLATION 3.1 LIST OF COMPONENTS Check the components before the installation. Make sure that no components are damaged. The following components must be in the inverter package: 4 x M6*60 stainless steel 1 x Hybrid Inverter 1 x Fixing bracket bolts 2 x Stainless steel mounting 1 x Communication cable for...

  • Page 9: Installation Instructions

    3.2 INSTALLATION INSTRUCTIONS 3.2.1 INSTALLATION PRECAUTIONS The inverter is designed for outdoor use (IP65). The chosen installation site must comply with the following conditions: Avoid exposing the inverter to direct sunlight · Do not install the inverter in areas where flammable materials are present ·...

  • Page 10: Installing The Inverter

    ≥500mm ≥500mm 3.2.3 INSTALLING THE INVERTER The inverter is heavy: be very careful when unpacking and handling it. To drill the fixing holes in the installation wall, choose the appropriate drill bit and drill 4 holes between 62 and 70 mm deep Use a hammer to insert the supplied expansion bolts into the holes.

  • Page 11: Connecting The Batteries

    3.3 CONNECTING THE BATTERIES To connect the batteries, use cables with dimensions as shown in the table below: Cable cross- Optor model Cable size Torque value (max) section (mm 3/3.6/5/6kW 2AWG 5.2 Nm - 11 -...
  • Page 12 If lithium batteries are used, the BMS communication cable must also be connected between inverter and batteries, to the BMS CAN or BMS 485 port. Only lithium batteries that are expressly compatible with the inverter can be used. In case of doubt, please contact the Technical Support Service of FuturaSun - 12 -...

  • Page 13: Specifications Of The Function Terminals

    3.3.1 SPECIFICATIONS OF THE FUNCTION TERMINALS DIP SWITCH INVERTER G V G S RS 485/METER BMS 485/CAN DRMs PARALLEL 1 PARALLEL 2 BMS 485/METER : RS485 port for ATS 230V communication with the meter BMS 485/CAN: CAN port for battery communication DRMs: only for Australia BT: terminals for temperature probe connection...

  • Page 14: Connection Of The Temperature Sensor For Lead/Acid Batteries

    3.3.2 CONNECTION OF THE TEMPERATURE SENSOR FOR LEAD/ACID BATTERIES TEMPERATURE SENSOR If the inverter is connected to, and operated with, lithium batteries with corresponding BMS communication, installing and connecting the temperature sensor is not necessary. - 14 -...

  • Page 15: Connection Of The Grid And The Backup Load

    3.4 CONNECTION OF THE GRID AND THE BACKUP LOAD A circuit breaker with thermal-magnetic and differential protection between the inverter and the grid is required when connecting the inverter to the grid. Use the table below to choose the appropriate switch for the inverter being connected. Thermal-magnetic circuit Optor model Differential...
  • Page 16 GEN (GENERATOR) LOAD GRID LOAD GRID GEN (GENERATOR) - 16 -...

  • Page 17: Photovoltaic Field Connection

    Optor model Solar cable cross-section mm 3K/3.6K/5K/6K MC4 connectors, NOT SUPPLIED WITH THE INVERTER, are required to connect the strings to the inverter Make sure to have available such connectors and an appropriate crimping tool for the connection of the string cables to the inverter.

  • Page 18: Photovoltaic Module Selection And Photovoltaic Generator Configuration

    The calculated values must always be within the operating ranges of the inverter. Special configurations can be agreed with FuturaSun technicians Inverter failures caused by incorrect configuration of the photovoltaic field are not covered by the warranty.

  • Page 19: Ct Connection

    3.6 CT CONNECTION INVERTER GRID L N PE WHITE WIRE BLACK WIRE !!! THE ARROW OF THE CT MUST POINT TOWARDS THE INVERTER GRID NO!!! BACKUP BACKUP LOAD LOAD Only the LINE conductor (L) - and not the NEUTRAL (N) - must pass through the CT NO!!! BACKUP BACKUP...

  • Page 20: Connection With External Meter Chnt Ddsu 666

    To check whether the CT has been positioned correctly and in the correct direction, switch on the inverter and keep the DC disconnector of the photovoltaic modules in the OFF position. Then switch on a domestic load of at least a few hundred watts.

  • Page 21: Connection With External Meter Eastron Sdm230

    3.6.2 CONNECTION WITH EXTERNAL METER EASTRON SDM230 Load Grid GRID Inverter INVERTER RS 485/ BMS 485/ DRMs METER CAN parallel_1 parallel_2 RS485 PORT Input Output RS 485 L GRID L INVERTER GRID N GRID N INVERTER B GND 1+COM RS485 A RS485 B RS 485A RS485A...

  • Page 22: Wi-Fi Plug Connection

    3.8 WI-FI PLUG CONNECTION The WI-FI plug must be connected to the WI-FI/RS232 port as shown below. Refer to Chapter 8 for the plug configuration 3.9 DIAGRAM OF TYPICAL CONNECTION BMS INVERTER-BATTERY COMMUNICATION CABLE INVERTER INVERTER EARTH BATTERY POWER CABLES(+ and -) BMS CABLE SWITCH...

  • Page 23: Diagram Of Single-Phase Connection With Parallel Inverter

    3.10 DIAGRAM OF SINGLE-PHASE CONNECTION WITH PARALLEL INVERTER INVERTER 3 SLAVE EARTH INVERTER INVERTER 2 SWITCHES SLAVE SWITCHES INVERTER 1 MASTER CAN CABLE BMS CABLE ONLY TO MASTER BATTERIES PHASE CABLE (L) SWITCHES NEUTRAL CABLE (N) EARTH CABLE (PE) BATTERY CABLE + BATTERY CABLE - TA (CT) SWITCHES...
  • Page 24 To set the master inverter in a single-phase system, enter the "Advance Function" menu of the inverter selected as master and tick the "Parallel" and "Master" options. In the "Modbus SN" window, set 01. Select "A Phase" on all inverters in the system. To set the slave inverters, enter the "Advance Function"...

  • Page 25: Diagram Of Three-Phase Connection With Parallel Inverter

    3.11 DIAGRAM OF THREE-PHASE CONNECTION WITH PARALLEL INVERTER BMS CABLE ONLY TO MASTER N.1 - 25 -...

  • Page 26: Operation

    4 OPERATION 4.1 SWITCHING ON USING THE ON/OFF BUTTON Once the inverter and the batteries have been installed, the inverter can be switched on by simply pressing the ON/OFF button underneath the inverter. In a system without batteries, if the grid or the photovoltaic field are connected to the inverter and the button is in the OFF position, the display still lights up, showing the word OFF.

  • Page 27: Lcd Display Icons

    5 LCD DISPLAY ICONS 5.1 MAIN SCREEN The main screen of the LCD display shows the following general inverter information: 1) "ON" at the centre indicates that the system is working normally. The text turning to "comm./FXX~F64” indicates that an operating error has been detected. The error message will be displayed underneath this icon (FXX Errors). The detailed error description can be viewed in the "SYSTEM ALARMS"...

  • Page 28: Menu Structure

    5.1.1 MENU STRUCTURE - 28 -...

  • Page 29: Solar / Inverter / Load / Grid / Battery Information

    5.2 SOLAR / INVERTER / LOAD / GRID / BATTERY INFORMATION SOLAR information page: ① Solar generation power ② Voltage, current, power for each MPPT. ③ Daily and total solar energy. Press "Energy" to access the power curve page INVERTER information page: ①...

  • Page 30: Energy Data Pages And Curves

    BATTERY information page. If lithium batteries are used, battery status information can be viewed in the BMS (Li-BMS) page 5.3 ENERGY DATA PAGES AND CURVES - 30 -...

  • Page 31: Main Setup Menu Page

    5.4 MAIN SETUP MENU PAGE 5.5 BASIC SETTINGS This page is used to set the date and time. TIME SYNC makes it possible to synchronise the date and time with the internet server. The inverter must be connected to the Internet BEEP can be used to enable/disable the button sound FACTORY RESET: All parameters are reset to the factory settings (PASSWORD 9999)

  • Page 32: Battery Setting

    BATT CAPACITY: Enter the rated Ah battery capacity MAX A CHARGE/ DISCHARGE: Enter the maximum battery charge/discharge current (0-70A for 3K, 0-90A for 3.6K, 0-120A for 5K, 0-135A for 6K). See the battery manufacturer's manual to set the correct values.
  • Page 33 This page shows information on the use and the status of the generator. It shows voltage, frequency and power, as well as daily supplied and total energy. Settings for lithium batteries. LITHIUM MODE: It indicates the type of protocol and the port to use for the BMS.

  • Page 34: System Work Mode

    5.7 SYSTEM WORK MODE Operating mode: SELLING FIRST: The inverter feeds all excess energy produced by the solar panels into the grid. If the "TIME OF USE" option is activated, battery energy can also be fed into and sold to the grid. The energy from the photovoltaic modules will be used to power the load and charge the battery, and only excess energy will be fed into the grid.
  • Page 35 SOLAR SELL: This option, which can be set either to ZERO EXPORT TO LOAD or ZERO EXPORT TO CT, allows any excess energy produced by the photovoltaic system to be fed into the grid. If it is not selected, the two programs indicated by default do not provide for such feeding into the grid.

  • Page 36: Grid Settings

    5.8 GRID SETTINGS Unlock Grid Setting: It allows to change the GRID MODE by entering password '7777' when prompted. FOR ITALY CHOOSE: CEI 0-21, SELECT 230V, 50 Hz AND SINGLE PHASE Normal connect: These are the permitted voltage and frequency ranges for connecting the inverter to the grid Normal Ramp rate: Power ramp during start-up Reconnect after trip: These are the permitted voltage and...
  • Page 37 V(W): It allows to set the active power of the inverter as a function of the detected grid voltage. It can be useful in the case of a network with high impedance. V(Q): It allows the reactive power of the inverter to be set as a function of the detected grid voltage.

  • Page 38: Cei 0-21 Self-Check

    5.9 CEI 0-21 SELF-CHECK To set the Italian CEI 0-21 standard select the relevant option, 220V Single Phase and 50 Hz, on the following page Confirm your choice by checking the settings Then go to the "ADVANCED FUNCTION" menu and select "SYSTEM SELFCHECK"...
  • Page 39 During the self-check procedure, all LED indicators will be on and the alarm will sound. When "OK" appears at the side of every test, the self-check is complete. Press "ESC" to return to the previous menu. Now select "CEI 0-21 REPORT" When asked for the password, enter "1234"...

  • Page 40: Gen Port Use

    5.10 GEN PORT USE The "GEN" port can be configured as input or output. When set as input, the incoming energy can only be used by the inverter to charge the batteries and not to directly power a load. If you want the generator to also power a load, the generator must be connected in parallel to the "GRID"...

  • Page 41: Advanced Function

    5.11 ADVANCED FUNCTION SOALR ARC-FAULT ON: Option for USA SYSTEM SELFECHECK: Keep disabled. Only needed by the manufacturer. GEN PEAK SHAVING: Activate this option when the power required from the generator exceeds the rated power indicated in "RATED POWER". The inverter will supply power to the generator in order to avoid overloads.

  • Page 42: Device Info

    ATS: Leave this option disabled 5.12 DEVICE INFO This menu page shows the inverter ID (SN), software version and error codes and messages. HMI: LCD screen version MAIN: Firmware version of the control board 6 POSSIBLE OPERATING DIAGRAMS DIAGRAM WITH INVERTER CONNECTED TO THE GRID AND BACKUP LOAD - 42 -...
  • Page 43 DIAGRAM WITH INVERTER CONNECTED TO THE GRID, BACKUP LOAD AND GENERATOR DIAGRAM WITH INVERTER CONNECTED TO THE GRID, WITH BACKUP LOAD AND SMART LOAD - 43 -...
  • Page 44 DIAGRAM WITH INVERTER CONNECTED TO THE GRID, BACKUP LOAD AND ONGRID INVERTER ON GEN PORT DIAGRAM WITH INVERTER CONNECTED TO THE GRID, BACKUP LOAD, SMART LOAD AND ONGRID INVERTER ON LOAD PORT - 44 -...

  • Page 45: Error Messages

    DIAGRAM WITH INVERTER CONNECTED TO THE GRID, BACKUP LOAD, SMART LOAD AND ONGRID INVERTER ON GRID PORT For each of the above diagrams, the primary source of energy is always photovoltaic. The second and third are the batteries or the grid, depending on the settings of the inverter. The last one is always the generator, when available 7 ERROR MESSAGES The inverter...

  • Page 46: List Of Error Messages

    7.1 LIST OF ERROR MESSAGES Error code Description Solutions When the inverter is in split-phase (120/240Vac) or three-phase system (120/208Vac), the neutral N of the LOAD port must be connected to GFDI _Relay_Failure the earth; If the fault persists, please contact the support service. When the network type and/or frequency are changed, F13 is...
  • Page 47 Error code Description Solutions Check that the backup load is connected and that the power is within AC overcurrent error the permitted power range; If the fault persists, please contact the support service. No grid Check the presence of grid voltage; No AC grid Check the connection of the cables to the grid;...

  • Page 48: Configuration Of The Wi-Fi Plug And Monitoring App

    8. CONFIGURATION OF THE WI-FI PLUG AND MONITORING APP Once the Wi-FI plug has been installed and the inverter is switched on, the Wi-Fi plug can be configured. The plug has three status LEDs; their meanings are summarised in the table below: REFERENCE STATUS DESCRIPTION 1.
  • Page 49 The plug is equipped with a reset button Button Pressure Duration Description LED status All LEDs switch off 5 seconds Plug Restart immediately All LEDs switch off after 4 seconds. When the plug is 10 seconds Plug reset ready, the LED flashes every 100 ms Download the SOLARMAN app to your smartphone and start it.
  • Page 50 Press "ADD A DEVICE” to add the Wi-Fi PLUG The PLUG can be entered manually or by scanning the barcode using the icon on the far right in the text box. After adding the logger, it will be necessary to configure the WI-FI communication. Go to "PLANT DETAILS", "DEVICE LIST", find the serial number of the logger entered and press its "DEVICE NETWORKING"...
  • Page 51 Select the WI-FI network, enter the password and press "START TO CONFIGURE” Now you need to connect your smartphone to the WI-FI generated by the PLUG. To do this, on the next screen press "GO TO CONNECT" and then select the network called “AP_” followed by the serial number of the PLUG - 51 -...
  • Page 52 Wait for the automatic configuration process and then press "DONE" The system data will be displayed approximately 10 minutes after start-up. If the configuration fails, please check: 1) That your WI-FI is working correctly 2) That the PLUG is working correctly by checking its LEDs 3) That the router does not have blacklists in which the PLUG connection may have been included 4) Delete all special characters from the network name and password 5) Boost the WI-FI signal of the router to the PLUG...

  • Page 53: Technical Data

    9. TECHNICAL DATA OPTOR Single 3K OPTOR Single 3.6K OPTOR Single 5K OPTOR Single 6K Model Battery input data Type of batteries supported Lead-acid or Lithium Battery voltage range (V) 40-60V Max. Charge current (A) 120A 135A Max. Discharge current (A)
  • Page 54 10. APPENDIX I BMS RJ45 port PIN specifications RS485 PIN CAN PIN RS485_B RS485_A GND_485 CAN-H CAN-L GND_485 RS485_A RS485_B BMS 485 PORT/CAN - 54 -...
  • Page 55 RJ45 port PIN specifications RS485 communication with the external meter RS485 PIN RS485_B RS485_A RS 485/METER PORT - 55 -...
  • Page 56 RS232 port PIN specifications WIFI/RS232 D-GND 12Vdc 11. APPENDIX II CT dimensions in mm. The connecting cable has a length of 4 metres - 56 -...
  • Page 57 For further information or support, please write to: serivce.inverter@futurasun.it - 57 -...
