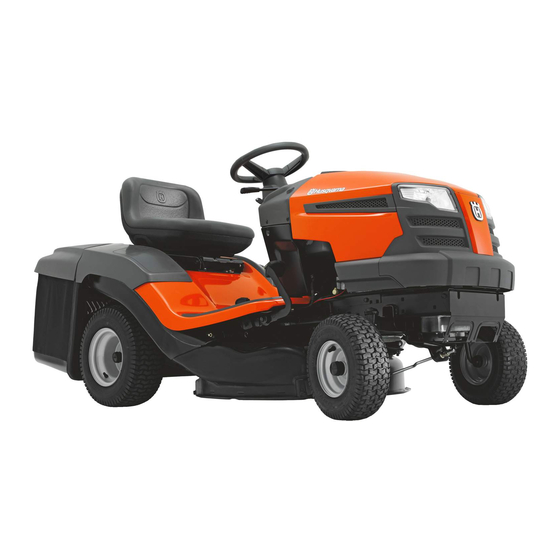

Husqvarna TC 130 Operator's Manual
Husqvarna TC 130 Operator's Manual

Husqvarna TC 130 Operator's Manual

Hide thumbs Also See for TC 130:

Advertisement

Quick Links

Operator's Manual
TC 130
Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
115 90 24-28 Rev. 1
Please read the operator's manual carefully and make sure
English
you understand the instructions before using the machine.

Advertisement

Table of Contents
loading

Summary of Contents for Husqvarna TC 130

  • Page 1 Operator’s Manual TC 130 Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine. The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty. 115 90 24-28 Rev. 1 Please read the operator's manual carefully and make sure English you understand the instructions before using the machine.
  • Page 2: Safety Rules

    SAFETY RULES Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. II. GENERAL OPERATION WARNING: In order to prevent ac ci den tal •...
  • Page 3 SAFETY RULES Safe Operation Practices for Ride-On Mowers III. SLOPE OPERATION • Never remove gas cap or add fuel with the engine running. • Allow engine to cool before refueling. WARNING! When loading or unloading • Never fuel the machine indoors. this machine, do not exceed the maximum •...
  • Page 4: Table Of Contents

    PRODUCT SPECIFICATIONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manu fac tured to give you the best possible dependability and performance. Gasoline Capacity 1,5 Gallons/5,67 L and type: Regular Unleaded Should you experience any problem you cannot easily remedy, please contact your nearest authorized service Power Rating*: 13,0 kW @ 3400 RPM...
  • Page 5: Assembly

    UNASSEMBLED PARTS Steering Battery Steering Extension Shaft Lock Washer Insert (2) Hex Bolts Washer Steering Steering Wheel (2) Nut Keps Wheel Adapter Hex Bolt Steering Boot Seat Hood Oil Drain Slope Sheet Extension Washer Hex Bolt Key(s) (1) Hood Scoop Seat ASSEMBLY Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.
  • Page 6 ASSEMBLY INSTALL SEAT (See Figs. 3 & 4) TO INSTALL STEERING WHEEL (See Fig. 2) • Remove bolt and flat washer se cur ing seat to cardboard ASSEMBLE EXTENSION SHAFT AND MOUNT packing and set aside for as sem bly of seat to tractor. •...
  • Page 7 ASSEMBLY TO INSTALL HOOD SCOOP (See Fig. 5) CHECK TIRE PRESSURE The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance. • Reduce tire pressure to PSI shown on tires. CHECK DECK LEVELNESS For best cutting results, mower housing should be prop- erly leveled.
  • Page 8: Operation

    OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. COLD WEATHER REVERSE NEUTRAL HIGH FAST SLOW IGNITION STARTING POSITION SWITCH ENGINE ENGINE ENGINE DIFFERENTIAL CLUTCH/ PARKING MOWER MOWER START LOCK BRAKE PEDAL BRAKE...
  • Page 9 OPERATION KNOW YOUR TRACTOR READ THIS MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Fig. 6 Our tractors conform to the applicable safety standards of the American National Standards Institute.
  • Page 10 OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide vision safety mask worn over spectacles.
  • Page 11 OPERATION TO MOVE FORWARD AND BACKWARD TO ADJUST GAUGE WHEELS (See Fig. 12) (See Fig. 10) Gauge wheels are properly adjusted when they are slightly off the ground when mower is at the desired cutting height The direction and speed of movement is controlled by the in operating position.
  • Page 12 OPERATION REVERSE OPERATION SYSTEM (ROS) TO TRANSPORT (See Fig. 15) Your tractor is equipped with a Reverse Operation System When push ing or tow ing your trac tor, ensure transmission (ROS). Any attempt by the operator to travel in the reverse is disengaged by placing freewheel control in free wheel ing direction with the attachment clutch engaged will shut off po si tion.
  • Page 13 OPERATION BATTERY INDICATOR/CHARGING PLUG CAUTION: Wipe off any spilled oil or (See Fig. 16) fuel. Do not store, spill or use gasoline The Battery Indicator displays the status of the battery. near an open flame. There are three different indicator lights: 1.
  • Page 14 OPERATION COLD WEATHER STARTING (32°F/0°C and below) 6. Engage transmission by placing freewheel control in engaged position. (See “TO TRANSPORT” in this • Move throttle control beyond fast position into the cold sec tion of manual.) weather starting position ( 7.
  • Page 15: Maintenance Schedule

    MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORE MAINTENANCE SCHEDULE EACH SEASON STORAGE HOURS HOURS HOURS HOURS Check Brake Operation Check Tire Pressure Check Operator Presence and ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Clean Debris off Steering Plate Check Transaxle Cooling...
  • Page 16: Maintenance

    MAINTENANCE TRACTOR BLADE CARE For best results mower blades must be kept sharp. Re place Always observe safety rules when per form ing any bent or damaged blades. main te nance. BRAKE OPERATION CAUTION: Use only a replacement blade ap- proved by the manufacturer of your tractor.
  • Page 17 MAINTENANCE V-BELTS TO CHANGE ENGINE OIL (See Fig. 20 & 21) Check V-belts for deterioration and wear after 100 hours Determine temperature range expected before oil change. of operation and replace if necessary. The belts are not All oil must meet API service classification SG-SL. ad just able.
  • Page 18 MAINTENANCE ENGINE COOLING SYSTEM CLEANING To ensure proper cooling, make sure the grass screen, • Clean engine, battery, seat, finish, etc. of all foreign cooling fins, and other external surfaces of the engine are matter. kept clean at all times. •...
  • Page 19 MAINTENANCE DECK WASHOUT PORT (See Fig. 24) Your tractor’s deck is equipped with a washout port on its surface as part of its deck wash system. It should be utilized after each use. • Drive the tractor to a level, clear spot on your lawn, near enough to a water spigot for your garden hose to reach.
  • Page 20: Service And Adjustments

    SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST MENTS: • Depress brake pedal fully and set parking brake. • Place attachment clutch in “DISENGAGED” position. • Turn ignition key to “STOP” and remove key. •...
  • Page 21 SERVICE AND ADJUSTMENTS • ATTACH MOWER SIDE SUSPENSION ARMS (A) TO • Insert end of link (E) into hole in front mower bracket CHASSIS - Position hole in arm over pin (B) on outside and secure with washer and retainer spring (J). of tractor chassis and secure with retainer spring.
  • Page 22 SERVICE AND ADJUSTMENTS TO LEVEL MOWER FRONT-TO-BACK ADJUSTMENT (See Figs. 33 & 34) IMPORTANT: Deck must be level side-to-side. Make sure tires are properly inflated to the PSI shown on tires. If tires are over or under inflated, it may affect the To obtain the best cutting re sults, the mower blades should appearance of your lawn and lead you to think the mower be adjusted so the front tip is 1/8"...
  • Page 23 SERVICE AND ADJUSTMENTS TO REPLACE MOWER BLADE DRIVE BELT TO REPLACE MOTION DRIVE BELT (See Fig. 35) (See Fig. 36) Park the tractor on level surface. En gage parking brake. The mower blade drive belt may be replaced without tools. For as sis tance, there is a belt installation guide decal on Park the tractor on level surface.
  • Page 24 SERVICE AND ADJUSTMENTS TO REMOVE WHEEL (See Fig. 37) • Connect one end of the BLACK ca ble to the NEGA TIVE (-) terminal (C) of fully charged battery. • Block up axle securely. • Connect the other end of the BLACK cable (D) to good •...
  • Page 25 SERVICE AND ADJUSTMENTS TRANSMISSION TO REPLACE HEADLIGHT BULB • Raise hood. REMOVAL/RE PLACE MENT • Pull bulb holder out of the hole in the backside of the grill. Should your transmission require removal for service or • Replace bulb in holder and push bulb holder securely re place ment, it should be purged after reinstallation and back into the hole in the backside of the grill.
  • Page 26: Storage

    STORAGE ENGINE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. FUEL SYSTEM IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS WARNING: Never store the trac tor with FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH gas o line in the tank inside a building AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK...
  • Page 27: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE CORRECTION 1. Out of fuel. 1. Fill fuel tank. Will not start 2. Engine flooded. 2. Wait several minutes before attempting to start. 3. Bad spark plug. 3. Replace spark plug. 4. Dirty air filter. 4. Clean/replace air filter. 5.
  • Page 28 TROUBLESHOOTING PROBLEM CAUSE CORRECTION Engine continues to 1. Faulty operator-safety presence control 1. Check wiring, switches and connections. If not system. corrected, contact an authorized service center/ run when operator department. leaves seat with attachment clutch CAUTION: DO NOT operate machine until engaged problem is corrected.
  • Page 29 SERVICE NOTES...
  • Page 30 SERVICE NOTES...
  • Page 32 12.05.17 JSE Printed in U.S.A.
