Samsung MWR-WG00UN User Manual

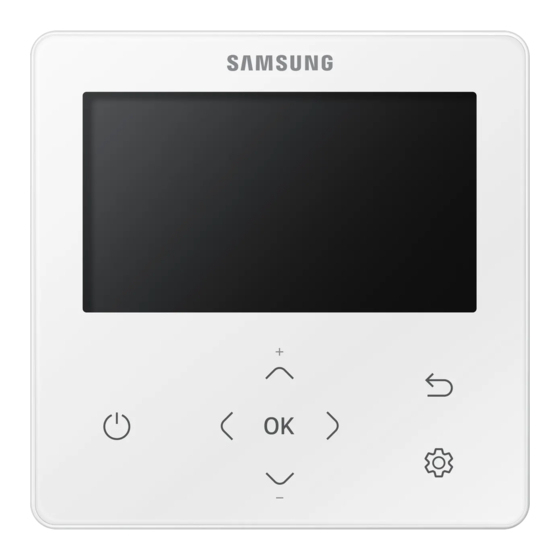

Air conditioner wired remote controller
Hide thumbs
Also See for MWR-WG00UN:
- Service manual (36 pages) ,
- Installation manual (27 pages) ,
- Service manual (36 pages)
Related Manuals for Samsung MWR-WG00UN
Summary of Contents for Samsung MWR-WG00UN
- Page 1 Air conditioner User manual Wired remote controller MWR-WG00UN Thank you for purchasing this Samsung Product. Before operating this unit, please read this user manual carefully and retain it for future reference.
- Page 2 Remote Controller Overview 01 Operation status display 07 Option button Displays the operation/function settings and statuses. Selects the detailed setting function. 02 Operation On/Off button (LED display) NOTE Turns the air conditioner/ventilator power On/Off The operation mode display on the remote controller changes depending on the selected language.
- Page 3 Air conditioner Air conditioner Indoor Indoor Settings Ventilator OFF LONG Current Sleep Long Wind Schedule Purify Air Quality Energy Option Cool High Wide Wind-Free Option Button Ventilator Ventilator E-Saver Schedule Option Option Button...
- Page 4 Home Screen Overview Air conditioner 01 Set temperature display 08 Schedule indicator 02 Current temperature display When a General Schedule is set. 03 Operation mode display When a Setback Schedule is set. Displays any of Auto Cool Dry Fan Heat. 09 Clean indicator 04 Fan speed display 10 Lock indicator...
- Page 5 Descripción general de la pantalla de inicio Aire acondicionado 01 Pantalla temperatura establecida 08 Indicador de Programa 02 Pantalla temperatura actual Cuando se establece una Horario. 03 Pantalla modo de funcionamiento Cuando se establece una Retrasar Horario. Muestra cualquiera de los valores Auto Frío Seco Vent o Calor. 09 Indicador de Limpiar 04 Pantalla de velocidad del ventilador 10 Indicador de Bloqu.
- Page 6 Aperçu de l’écran d’accueil Climatiseur 01 Affichage de la température configurée 08 Indicateur de Prog. 02 Affichage de la température actuelle Lorsqu’un Programmation est configuré. 03 Affichage du mode de fonctionnement Lorsqu’un Retour programmation est configuré. Auto Froid Sec Ventil chaud. 09 Voyant de Nettoyage 04 Affichage de la vitesse du ventilateur 10 Voyant de Verrouillage...
- Page 7 Descrição geral do ecrã inicial Aparelho de ar condicionado 01 Visor da temperatura definida 08 Indicador Programação 02 Visor da temperatura atual Quando um é definido. 03 Visor do modo de funcionamento Quando um é definido. Exibe Auto Arref. Desum. Vent e Aquec. 09 Indicador Limpar 04 Visor da velocidade da ventoinha 10 Indicador Bloquear...
-
Page 8: Table Of Contents
Contents Safety Information Safety Information Power Smart Features Remote Controller Operation Cooling Operation Wind-Free function Dehumidifying Operation Dry mode Air Purifying Operation Purify function Heating Operation Heat mode Quick Smart Features Auto Fan mode Quiet Sleep Long Wind function Ventilation (ERV) Operation Ventilation (ERV) Operation E-Saver function... -
Page 9: Safety Information
Safety Information WARNING: This content is intended to protect the user’s safety and prevent property damage. Please read it carefully for correct use of the product. WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. - Page 10 Safety Information FOR OPERATION WARNING If the appliance generates a strange noise, a burning smell or smoke, unplug the product immediately and contact your nearest service centre. Failing to do so may result in electric shock or fire. To reinstall the air conditioner, please contact your nearest service centre. A delivery service for the product is not provided.
-
Page 11: Power Smart Features
Remote Controller Operation You can use the air conditioner easily by selecting a mode and then by controlling the temperature, fan buttons to select the desired menu, press the button, use the buttons to select the desired item, and then press the button. - Page 12 Remote Controller Operation Controlling air flow direction General models Individual 360 cassette model Spot, Mid, Wide, Individual Mode Wired remote controller display Indoor unit indicator Spot Spot Wide Wide Swing Spot, Mid, or Wide direction. You can select individual on the indoor unit that supports this mode. NOTE the remote controller.
-
Page 13: Cooling Operation
Cooling Operation cool and comfortable. Cool mode NOTE to save energy. Wind-Free function Wind-Free Wind-Free and fan speed according to the indoor temperatures keeps your room cool and pleasant. NOTE If the Wind-Free function is cancelled, the air conditioner returns to the previous fan speed. You can adjust the set temperature during the Wind-Free function, and recommended set temperatures are Fan mode. -
Page 14: Dehumidifying Operation
Air Purifying Operation The air purification function of the Samsung air conditioner keeps the air in an enclosed space purified. Purify function Purify function to remove harmful materials in the air to provide you a clean and healthy environment. -
Page 15: Heating Operation
The operation time of the Defrost function varies depending on the amount of the frost and ice and the humidity. While the Defrost remote controller. Quick Smart Features There is a variety of useful functionality provided by the Samsung air conditioner. Auto mode Auto Heat or NOTE You cannot change the fan speed. - Page 16 Quick Smart Features Quiet function Quiet function decreases the operation sound in the Auto, , Dry, or Heat mode. NOTE When you select Quiet in Wind-Free or Long Wind function, the previous function is cancelled. Sleep function Sleep middle of the night. NOTE You can select this function only in the and Heat modes.
-
Page 17: Ventilation (Erv) Operation
Ventilation (ERV) Operation Operation modes You can select the desired mode. Mode Description Heat-EX indoor heating or cooling. This mode automatically adjusts the ventilation functions depending on the degree of Auto pollution in your indoor air. By-Pass Quiet NOTE If the operation status is changed by another controller, the operation mode is cancelled. Controlling fan speed Heat-EX/Auto/ Auto,... -
Page 18: E-Saver Function
Ventilation (ERV) Operation E-Saver function This function compares the outdoor and indoor temperatures, and then automatically selects Heat-EX or By-Pass operation. ON/OFF Alternation Quiet Medium operation 30 minutes. Outdoor air cooling With the temperature control button, the default temperature for operation for different E-Saver can be set. -
Page 19: Energy-Saving Operation
Energy-Saving Operation Schedule Press the button, press the button to select Schedule, and then press the button. You can set each of General Schedule, Setback Schedule, Override, Energy Saving Timer, Eco Setting, and Activation Time Setting. Type Description Turns the device on or off after a set time. Timer Schedules the operation of the device on a set day and at a set time. -
Page 20: Energy
Energy-Saving Operation Type Description Eco Setting "Energy Saving Timer" is set to "Eco Setting". Energy Saving Timer function operate only for Activation Time Setting the period of time you set. NOTE Weekly schedule and Yearly schedule can cover settings up to 49. Energy Press the button, press the... -
Page 21: Setting Options
Setting Options How to set the Options 1 Press the button. 2 Press the button to select Option, and then press the button. Major Step 1 Step 2 Step 3 Step 4 Step 5 Description Default Button lock ON/OFF Indoor Filter reset Ventilator Error list... - Page 22 Setting Options Major Step 1 Step 2 Step 3 Step 4 Step 5 Description Default All lock ON/OFF Operation ON/OFF Lock All mode Lock ON/OFF Auto mode Lock ON/OFF ON/OFF Operation mode Lock Dry mode Lock ON/OFF Heat mode Lock ON/OFF Lock Fan mode Lock...
- Page 23 Major Step 1 Step 2 Step 3 Step 4 Step 5 Description Default remote ON/OFF controller DSP Indoor temp./Heating unit status Set temp. value Auto changeover Indoor Primary unit status value Indoor Secondary unit status value Option Fahrenheit Temperature limits Fahrenheit Easy tuning Indoor...
- Page 24 Memo 18 English...
- Page 25 English...
