ELIPTICAL 6.5
Art No. 726 065

Advertisement

loading
Need help?

Need help?

Do you have a question about the ELIPTICAL 6.5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mylnasport ELIPTICAL 6.5

Summary of Contents for Mylnasport ELIPTICAL 6.5

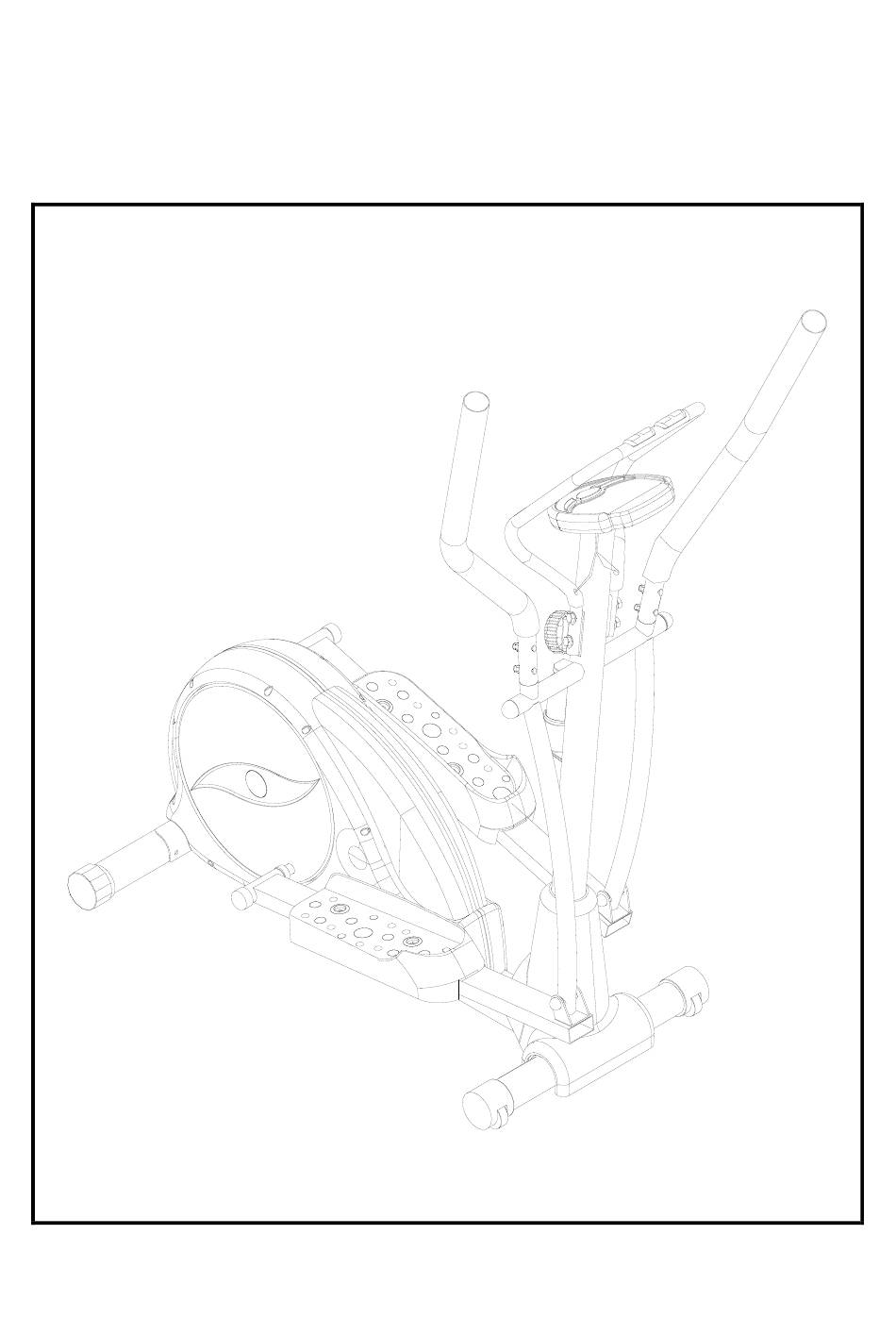

  • Page 1 ELIPTICAL 6.5 Art No. 726 065...

  • Page 2: Exploded Drawing

    EXPLODED DRAWING...
  • Page 3 Parts List DESCRIPTION Q’TY DESCRIPTION Q’TY REAR STABILIZER CHAINCOVER (RIGHT) ADJUSTING CAP CHAINCOVER (LEFT) CARRIAGE BOLT COVER FOR FLYWHEEL HEX NUT COVER SEMICIRCLE WASHER DISC COVER FRONT STABILIZER FOAM GRIP TRANSPORTATION WHEEL WAVE WASHER HANDLEBAR POST PEDAL ARM (RIGHT) COVER FOR HANDLEBAR POST PEDAL ARM (LEFT) BOLT ALLEN SENSOR WIRE (DOWN)
  • Page 4 This exerciser has been designed for home use only. Professional use, commercial or use in gym centers, will automatically cancel the manufacturers’ and/or importers’ product liability. Safety Instructions Before you start training on your exerciser, please read the instructions carefully. Be sure to keep the instructions for information, in case of repair and for spare part delivery.
  • Page 5 Assembly instructions Step 1 Assemble front and rear stabilizers to mainframe using two washers (5),nuts(4) and bolts(3). Assemble right pedal as shown in the drawing.
  • Page 6 STEP 2 1. Slide handlebar post (8) through its cover (9). 2. Pull the tension cable out of the handlebar post and please ensure the tension knob is at lightest position (minimum position). 3. Connect the tension cable by pushing the head into the notch of the cable coming from the main frame (see drawing A1-A4).
  • Page 7 5 10 STEP 3 1. Assemble handlebar post to frame using four washers (5) and bolts (10). 2. Slide down protective cover.
  • Page 8 STEP 4 1. Position and center axle (13) in the handlebar post. 2. Connect lower handlebars (11&12) this axle using two bushings (44), washers (14) bolt (16), two washers (15) and cover using end caps (17). 3. Connect lower handlebars to pedal supports (45) using four washers (19), bolts (18),two metal bushing(50) and cover using end caps (17).
  • Page 9 STEP 5 Slide in upper handlebars (21&22) and tighten well using four bolts (24) washers (5) and nuts (23).
  • Page 10 STEP 6 Assemble fixed front support (28) using four screws (25) and washers (5).
  • Page 11 STEP 7 Assemble pedals (32&33) to their support and fasten using four bolts (34), washers (36) ,spring washers(61) and knobs (35).
  • Page 12 STEP 8 1. Mount the computer to the hold of the handlebar pole with the enclosed screws and connect the computer cables. 2. Plug the delivered hand-pulse wire for measuring the pulse rate in the socket at the computer.

  • Page 13: Warm-Up Exercise

    WARM-UP EXERCISE...

  • Page 14: Exercise Computer

    EXERCISE COMPUTER ST-6716-7 FUNCTION BUTTON 1.PRESS “MODE” TO SELECT EACH FUNCTION DISPLAY ON THE MAIN MODE SCREEN AND THE SAME ONE BLINKING ON THE BOTTOM FIELD. 2.PRESS “MODE” AND HOLD ON FOR 2 SECONDS TO RESET ALL FUNCTION FIGURES. TO SET FUNCTION OF TIME, DISTANCE, CALORIE, PULSE. RECOVERY PRESS THE BOTTON TO HAVE RECOVERY FUNCTION WORK AFTER EXERCISING FOR A WHILE.
  • Page 15 ACCUMULATES THE TRAINING DISTANCE FROM 0.00 TO THE MAXIMUM DISTANCE 99.90KM/ML WITH EACH INCREMENT 0.01KM/ML. YOU MAY ALSO PRESET THE TARGET DISTANCE BEFORE TRAINING BY PRESSING “UP” AND “DOWN” BUTTONS. EACH SETTING IS 0.5KM/ML. AS SOON AS THE TARGET DISTANCE IS REACHED, DISTANCE STARTS COUNTING UP IMMEDIATELY AND ALARM FOR 8 SECONDS.
