- Page 1 Thermal & Optical Network Turret Camera Quick Start Guide COPYRIGHT ©2019 Hangzhou Hikvision Digital Technology Co., Ltd.
- Page 2 Thermal & Optical Network Turret Camera Quick Start Guide Quick Start Guide COPYRIGHT ©2019 Hangzhou Hikvision Digital Technology Co., Ltd. ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”).
- Page 3 Thermal & Optical Network Turret Camera Quick Start Guide ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW.
- Page 4 Thermal & Optical Network Turret Camera Quick Start Guide your supplier or to a designated collection point. For more information see: www.recyclethis.info. Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements. Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
- Page 5 Thermal & Optical Network Turret Camera Quick Start Guide When any laser equipment is in use, make sure that the device lens is not exposed to the laser beam, or it may burn out. Do not place the camera in extremely hot, cold (the working temperature shall be - 40 °C to 65 °C), dusty or damp locations, and do not expose it to high electromagnetic radiation.
-
Page 6: Table Of Contents
Thermal & Optical Network Turret Camera Quick Start Guide Table of Contents Preparation....................1 2 Appearance Description ................2 2.1 Type I Turret Camera Appearance................2 2.2 Type II Turret Camera Appearance................2 2.3 Cable Descriptions ....................3 2.4 Alarm In/Out Connections..................3 3 Install the Turret Camera................4 3.1 Monitor Distance Range ...................4... -
Page 7: Preparation
Thermal & Optical Network Turret Camera Quick Start Guide 1 Preparation Basic Requirement All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region. Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. -
Page 8: Appearance Description

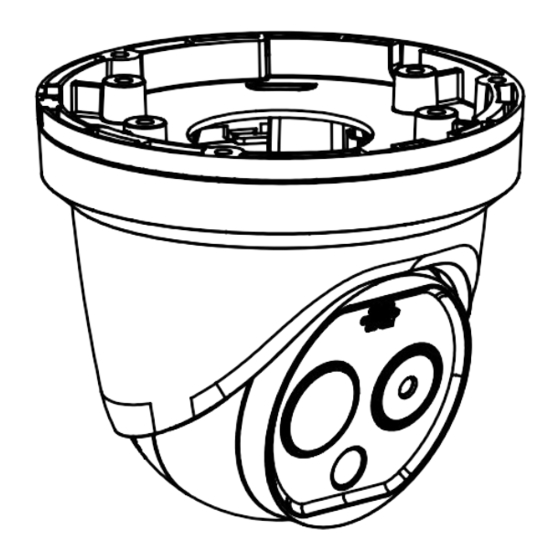

Thermal & Optical Network Turret Camera Quick Start Guide 2 Appearance Description There are two types of thermal network turret cameras. Here are the overviews of Type I camera and Type II camera. 2.1 Type I Turret Camera Appearance type I Refer to the following figure for thermal turret camera overview. -
Page 9: Cable Descriptions
Thermal & Optical Network Turret Camera Quick Start Guide 2.3 Cable Descriptions The cable interfaces of Turret Camera are shown in the figure below. The cables of RS- 485, power supply, alarm inputs, alarm outputs, etc. are distinguished by different colors. -
Page 10: Install The Turret Camera
Thermal & Optical Network Turret Camera Quick Start Guide 3 Install the Turret Camera Before you start: 1. Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. 2. -
Page 11: Install Memory Card
Thermal & Optical Network Turret Camera Quick Start Guide 3.2 Install Memory Card The micro SD card of two camera models is installed in the same way. Here is an example of SD card installation for type II camera. Steps: 1. - Page 12 Thermal & Optical Network Turret Camera Quick Start Guide Figure 3-1 Drill Template 2. Turn the ring anticlockwise and remove it. Note: The ring is only applicable to type II camera. Figure 3-1 Remove the Ring 3. Loosen the screw and dismount the camera body from the base. Figure 3-1 Dismount the Camera from Base 4.
- Page 13 Thermal & Optical Network Turret Camera Quick Start Guide Figure 3-1 Mount the Camera Base 5. Mount the Turret body to the base. Rotate the camera body in the pan direction (0°~360°) or rotate the lens in the tilt direction (0°~80°) to get the desired view angle.
-
Page 14: Install Network Cable Water-Proof Jacket
Thermal & Optical Network Turret Camera Quick Start Guide Mount the Ring Figure 3-1 3.4 Install Network Cable Water-proof Jacket Purpose: If the camera is installed outdoor, you should use the waterproof accessory or tapes to waterproof the cables. Otherwise the cables might get wet or a short circuit occurs. -
Page 15: Waterproof Other Cables
Thermal & Optical Network Turret Camera Quick Start Guide Secure ① with the ③ in clockwise direction. 3.4.2 Waterproof Other Cables After routing and connecting the cables, use the waterproof tapes to wrap up the cables. Connected cables and spare cables both should be wrapped up as the figures below. -
Page 16: Set The System Over The Lan
Thermal & Optical Network Turret Camera Quick Start Guide 4 Set the System over the LAN Notes: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. -
Page 17: Activation Via Sadp Software
Thermal & Optical Network Turret Camera Quick Start Guide 2. Input the IP address into the address bar of the web browser, and click Enter to enter the activation interface. Note: The default IP address of the system is 192.168.1.64. Figure 4-1 Activation Interface(Web) 3. -
Page 18: Modify The Ip Address
Thermal & Optical Network Turret Camera Quick Start Guide Figure 4-1 SADP Interface 3. Create a password and input the password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 19 Thermal & Optical Network Turret Camera Quick Start Guide 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Figure 4-1 Modify the IP Address 4.
-
Page 20: Operate Via Web Browser
Thermal & Optical Network Turret Camera Quick Start Guide 5 Operate via Web browser 5.1 Access the System System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher... -
Page 21: Live View Page
Thermal & Optical Network Turret Camera Quick Start Guide Figure 5-1 Download Plug-in 6. Reopen the web browser after the installation of the plug-in and repeat the above steps 2-4 to login. Note: For detailed instructions of further configuration, please refer to the user manual of network Turret Camera. -
Page 22: Appendix
Thermal & Optical Network Turret Camera Quick Start Guide Click each tab to enter Live View, Playback, Picture, and Configuration page respectively. Click to display the help file of the Turret Camera. Click to logout the system. Live View Window: Display the live video. - Page 23 Thermal & Optical Network Turret Camera Quick Start Guide Cardboard 0.90 White Paper 0.90 Water 0.96...
-
Page 24: Frequently Asked Questions (Faq)
Thermal & Optical Network Turret Camera Quick Start Guide 6.2 Frequently Asked Questions (FAQ) 6.2.1 Device Running Error Question: The device fails to start up or reboots repeatedly. The device constantly powers off unexpectedly when you pan/tilt the device or call preset. ... - Page 25 Thermal & Optical Network Turret Camera Quick Start Guide For cross-domain routing, enable the UPnP of device, or set manual mapping to port No. 80, 8000, or 554. Examine if the live view channel amount exceeds the upper limit. ...
- Page 26 UD14811B...
