Summary of Contents for Alphatron Marine AlphaFeverCamera

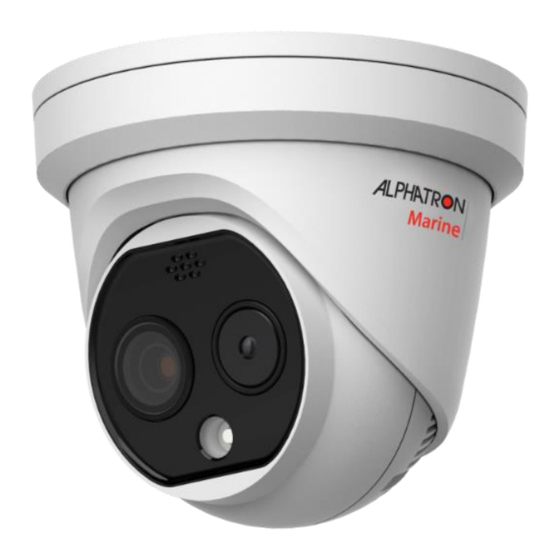

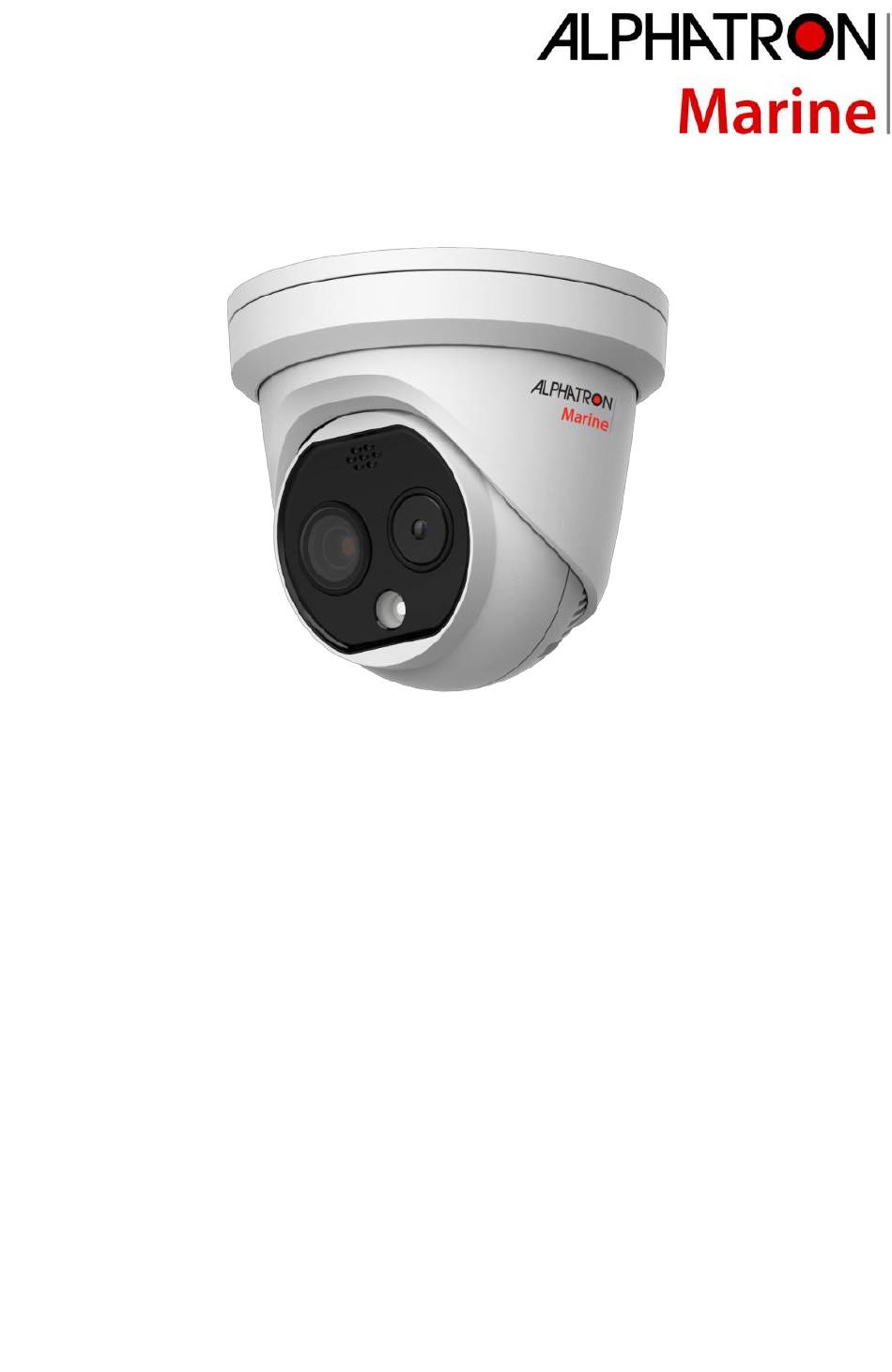

- Page 1 AlphaFeverCamera Network Turret Camera alphatronmarine.com...
- Page 2 AlphaFeverCamera Quick Start Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 AlphaFeverCamera Quick Start Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Warnings and Cautions: Warnings: Neglecting any of the warnings may cause serious injury or death.
- Page 4 AlphaFeverCamera Quick Start Guide When any laser equipment is in use, make sure that the device lens is not exposed to the laser beam, or it may burn out. ⚫ Do not place the camera in extremely hot, cold (the working temperature shall be - 40 °C to 65 °C), dusty or damp locations, and do not expose it to high electromagnetic...
-
Page 5: Table Of Contents
AlphaFeverCamera Quick Start Guide Table of Contents 1 Preparation ....................1 2 Appearance Description ................2 2.1 Type I Turret Camera Appearance ................ 2 2.2 Type II Turret Camera Appearance ............... 2 2.3 Cable Descriptions ....................3 2.4 Alarm In/Out Connections ..................3 3 Install the Turret Camera ................ -
Page 6: Preparation
AlphaFeverCamera Quick Start Guide 1 Preparation Basic Requirement All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region. Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. -
Page 7: Appearance Description
AlphaFeverCamera Quick Start Guide 2 Appearance Description There are two types of thermal network turret cameras. Here are the overviews of Type I camera and Type II camera. 2.1 Type I Turret Camera Appearance type I Refer to the following figure for thermal turret camera overview. -
Page 8: Cable Descriptions
AlphaFeverCamera Quick Start Guide 2.3 Cable Descriptions The cable interfaces of Turret Camera are shown in the figure below. The cables of RS-485, power supply, alarm inputs, alarm outputs, etc. are distinguished by different colors. Please refer to the labels attached on the cables for identification. -
Page 9: Install The Turret Camera
AlphaFeverCamera Quick Start Guide 3 Install the Turret Camera Before you start: 1. Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. 2. Please turn off the power of the Turret Camera before connecting the cables. -
Page 10: Install Memory Card
AlphaFeverCamera Quick Start Guide 3.2 Install Memory Card The micro SD card of two camera models is installed in the same way. Here is an example of SD card installation for type II camera. Steps: 1. Remove the cover on the back of the Turret Camera. - Page 11 AlphaFeverCamera Quick Start Guide Figure 3-3 Drill Template 2. Turn the ring anticlockwise and remove it. Note: The ring is only applicable to type II camera. Figure 3-4 Remove the Ring 3. Loosen the screw and dismount the camera body from the base.
- Page 12 AlphaFeverCamera Quick Start Guide Drill Template Figure 3-6 Mount the Camera Base 5. Mount the Turret body to the base. Rotate the camera body in the pan direction (0°~360°) or rotate the lens in the tilt direction (0°~80°) to get the desired view angle.
-
Page 13: Install Network Cable Water-Proof Jacket
AlphaFeverCamera Quick Start Guide Mount the Ring Figure 3-9 3.4 Install Network Cable Water-proof Jacket Purpose: If the camera is installed outdoor, you should use the waterproof accessory or tapes to waterproof the cables. Otherwise the cables might get wet or a short circuit occurs. -
Page 14: Waterproof Other Cables
AlphaFeverCamera Quick Start Guide Secure ① with the ③ in clockwise direction. 3.4.2 Waterproof Other Cables After routing and connecting the cables, use the waterproof tapes to wrap up the cables. Connected cables and spare cables both should be wrapped up as the figures below. -
Page 15: Set The System Over The Lan
AlphaFeverCamera Quick Start Guide 4 Set the System over the LAN Notes: ⚫ You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center. -
Page 16: Activation Via Sadp Software
AlphaFeverCamera Quick Start Guide 2. Input the IP address into the address bar of the web browser, and click Enter to enter the activation interface. Note: The default IP address of the system is 192.168.1.64. Figure 4-2 Activation Interface(Web) 3. Create a password and input the password into the password field. -
Page 17: Modify The Ip Address
AlphaFeverCamera Quick Start Guide Select inactive device. Input and confirm password. Figure 4-3 SADP Interface 3. Create a password and input the password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly recommend you create a... - Page 18 AlphaFeverCamera Quick Start Guide 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Figure 4-4 Modify the IP Address 4. Input the password and click Save to activate your IP address modification.
-
Page 19: Operate Via Web Browser
AlphaFeverCamera Quick Start Guide 5 Operate via Web browser 5.1 Access the System System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher... -
Page 20: Live View Page
AlphaFeverCamera Quick Start Guide Note: You may have to close the web browser to finish the installation of the plug-in. Figure 5-2 Download Plug-in 6. Reopen the web browser after the installation of the plug-in and repeat the above steps 2-4 to login. - Page 21 AlphaFeverCamera Quick Start Guide Menu Bar PTZ Control Show or hide PTZ control Live View Window panel Live View Parameters Toolbar Preset/ Patrol/ Pattern Figure 5-3 Live View Page Menu Bar: Click each tab to enter Live View, Playback, Picture, and Configuration page respectively.
-
Page 22: Appendix
AlphaFeverCamera Quick Start Guide 6 Appendix 6.1 Common Material Emissivity Reference Material Emissivity Human Skin 0.98 0.91 Cement Concrete 0.95 Ceramics 0.92 Rubber 0.95 Paint 0.93 Wood 0.85 Asphalt 0.96 Brick 0.95 Sand 0.90 Soil 0.92 Cotton 0.98 Cardboard 0.90 White Paper 0.90... -
Page 23: Frequently Asked Questions (Faq)
AlphaFeverCamera Quick Start Guide 6.2 Frequently Asked Questions (FAQ) 6.2.1 Device Running Error Question: ⚫ The device fails to start up or reboots repeatedly. ⚫ The device constantly powers off unexpectedly when you pan/tilt the device or call preset. ⚫ The device fails to zoom in/out or pan/tilt. - Page 24 ⚫ Examine if the IE plug-in is well installed. Change the Website Blocker settings if necessary. ⚫ For cross-domain routing, enable the UPnP of device, or set manual mapping to port No. 80, 8000, or 554. ⚫ Examine if the live view channel amount exceeds the upper limit.
