USE AND CARE GUIDE

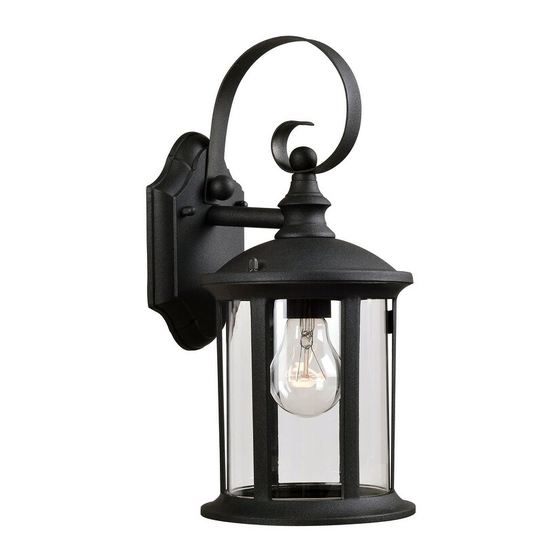

LEO 1 LIGHT LANTERN-#93278
Questions, problems, missing parts? Before returning to the store,
call Kenroy Home Customer Service
8 a.m.-6 p.m., EST, Monday-Friday
904-642-4340
THANK YOU
We appreciate the trust and confidence you have placed in Kenroy Home through the purchase of this lantern.
We strive to continually create quality products designed to enhance your home.
Thank you for choosing us!
Advertisement
Table of Contents
Related Manuals for Kenroy Home LEO
Summary of Contents for Kenroy Home LEO
- Page 1 8 a.m.-6 p.m., EST, Monday-Friday 904-642-4340 THANK YOU We appreciate the trust and confidence you have placed in Kenroy Home through the purchase of this lantern. We strive to continually create quality products designed to enhance your home. Thank you for choosing us!
-
Page 2: Table Of Contents
Table of Contents Safety Information ............................2 Warranty ..............................2 Pre-Installation ............................3 Planning Installation ..........................3 Package Contents ..........................4 Installation ............................5 , 6, 7 Care and Cleaning ............................7 Troubleshooting ............................7 Safety Information □ Consult a qualified electrician with any IMPORTANT: Inspect the wire insulation for electrical questions you may have. -
Page 3: Pre-Installation
Pre-Installation PLANNING INSTALLATION Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. Inspect each part for defects that may have occurred during shipping. Keep your receipt and these instructions for proof of purchase. NOTE: This lantern requires the use of one 120V, 60Hz, 60-Watt max, medium-base type A bulb (not included). -
Page 4: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Description Quantity Part Roof assembly Finial Lantern cage... -
Page 5: Installation
Assembly instructions Installation instructions Assemble the lantern Remove the mounting plate □ Carefully organize and place all parts on a □ Remove the mounting plate assembly (BB) from smooth, flat surface. line up all of the parts the roof assembly (A) by unscrewing the two according to the assembly diagram. - Page 6 Installation instructions (continued) Connecting the wires Installing the fixture □ Raise fixture body to the wall and carefully □ Install the fixture bare copper ground wire (1) tuck the wires inside the outlet box. spread the under the ground screw (EE) on the mounting electrical splices so that the black wires are on plate (BB).
-
Page 7: Care And Cleaning
Installation instructions (continued) Installing the bulb □ Prior to installing the bulb, please inspect socket for silica packet. if packet is present, remove and throw away. do not expose to children and pets. □ Install one 120V, 60Hz, 60-watt max. medium-base type A bulb (not included) into the socket. - Page 8 www.kenroyhome.com CUSTOMER SUPPORT TEAM For any additional questions or concerns please contact our Customer Support Team: 904-642-4340 @KenroyHome customerorders@kenroyhome.com...
