Summary of Contents for Kenroy Home 32248
- Page 2 8 a.m.-6 p.m., EST, Monday-Friday 904-642-4340 THANK YOU We appreciate the trust and confidence you have placed in Kenroy Home through the purchase of this lamp. We strive to continually create quality products designed to enhance your home. Thank you for choosing us!
-
Page 3: Table Of Contents
Table of Contents Safety Information ............................2 Warranty ..............................2 Pre-Installation ............................3 Planning Installation ..........................3 Package Contents ..........................3 Assembly .............................. 4, 5, 6 Care and Cleaning ............................7 Troubleshooting ............................7 Safety Information □ Consult a qualified electrician with any IMPORTANT: Inspect the wire insulation for electrical questions you may have. -
Page 4: Pre-Installation
Pre-Installation PLANNING INSTALLATION Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. Inspect each part for defects that may have occurred during shipping. Keep your receipt and these instructions for proof of purchase. NOTE: This lamp requires the use of two 120V, 60HZ, 100-Watt max, medium-base type A bulbs (not included). -
Page 5: Assembly

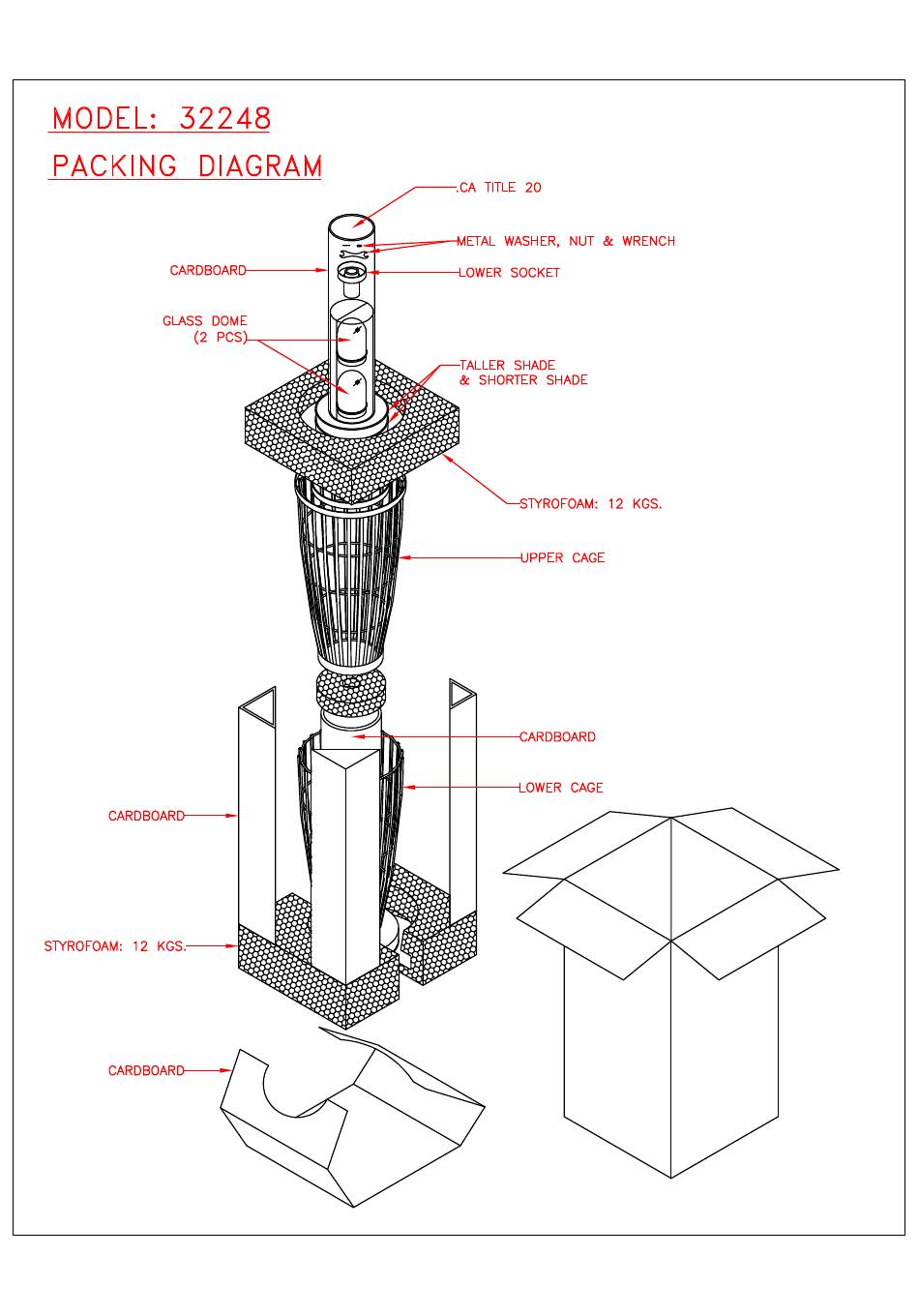

Assembly instructions Unpack the lamp and assemble shorter shade □ Carefully organize and place all parts on a smooth, flat surface. Take out of the shades from cages, then remove the plastic bag from the shades. line up all of the parts according to the assembly diagram. - Page 6 Assembly instructions (continued) Assemble the taller shade □ Place the taller shade (E) into lower cage (G), make sure the wire tube in the lower cage (G) was inserted into the notch of taller shade (E). □ Insert the nipple of lower socket assembly (F) into the hole in base and secure with metal washer (H) and nut (I) from bottom of the base.
- Page 7 Assembly instructions (continued) Assemble the upper cage to lower cage □ Lay down the upper cage assembly (A) and lower cage assembly (G) on a smooth, flat floor, pull the excess power cord through the base. □ Stand the lower cage assembly (G) on flat floor, place the upper cage assembly (A) with shorter shade (D) onto top of the lower cage (G), make sure the shades are inserted into the inner metal ring of upper cage (A).
-
Page 8: Care And Cleaning
Important safety instructions □ Use only three-wire outdoor extension cords that have three-prong grounding plugs and grounding receptacles that accept the appliance's plug. □ Ground fault circuit interrupter (GFCI) protection is to be provided on the circuit or outlet to be used for the wet location portable luminaire. - Page 9 www.kenroyhome.com CUSTOMER SUPPORT TEAM For any additional questions or concerns please contact our Customer Support Team: 904-642-4340 @KenroyHome customerorders@kenroyhome.com...
