Summary of Contents for AUDMIC TE-003

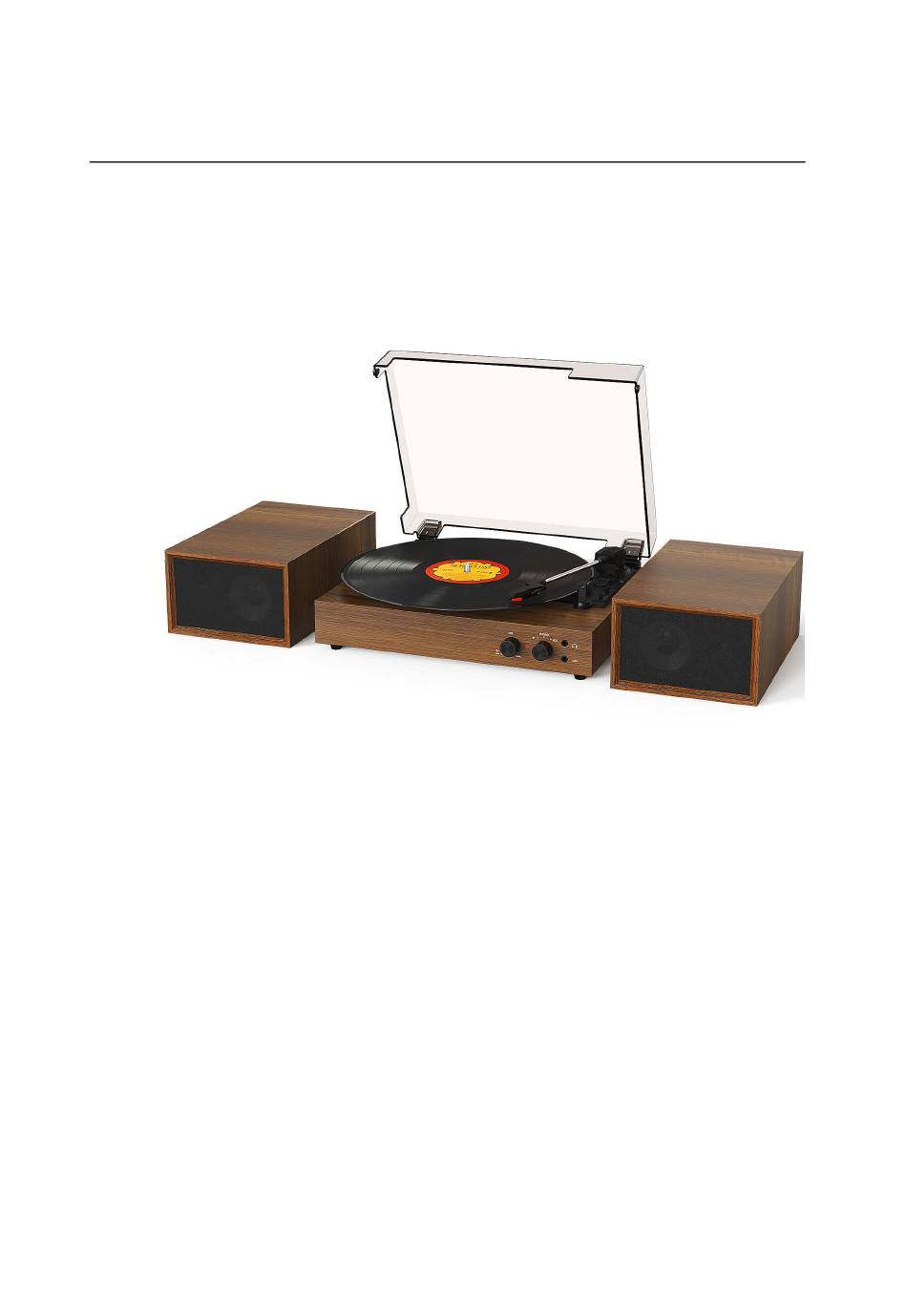

- Page 1 TURNTABLE RECORD PLAYER INSTRUCTIONS Model No: TE-003 Turntable with Bluetooth reception and wooden speakers User Manual support25@163.com Questions, problems, missing parts? CONTACT -------- Before returning to Amazon, please use above contact for Customer Service.
- Page 2 Instructions Before Start Please Read the Manual Before Using this product. Keep these instructions for future reference. About Records Applied Do not use this product near water. Never use a record with cracks or warps. Never use a record that is cracked or warped, as this may cause extreme wear and destruction of the needle. Never use unusual play methods such as scratching.
-
Page 3: Parts Illustration
PARTS ILLUSTRATION: Orientation Choose 33, 45, or 78, depending on the type of record to be played. Record Speed 45 rpm Record Adapter Turntable Arm Lift Switch Tone Arm Auto Stop Select ON or OFF Tone Arm Phono Mode Lock Bluetooth Selection Tone Arm &... - Page 4 Front Headphone Master power Phono Mode Volume ON/OFF Bluetooth Selection Audio Tube Cable connect to turntable Cable connect to turntable Remark: To avoid Larsen effect or echo noise, you can do the following: Put your speakers at minimum distance of 60 cm or more from your turntable. Let the dustcover open when you play a record at higher sound volume.
- Page 5 Operation---Listen to a Record It is recommended that you use extreme care when manipulating the tone arm, stylus, and other components of this turntable. These parts are very sensitive and can easily break or become damaged if they are carelessly handled. Unlock Lock 1.
- Page 6 Bluetooth--- pairing with bluetooth 1. Turn on the the ON/OFF /Volume button to power on, turn the mode selector button aim to "BT" on the control panel. 2. Using the controls on your Bluetooth device, search for and select "BLTD" in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0 and and press OK.
- Page 7 PC record--- recording vinyl to MP3 via PC Installing the software 1. Download the Audacity software on your computer or laptop from official website (www.audacityteam.org) 2. Double click the downloaded files and follow the instructions and the software will automatically install as below •...
- Page 8 3. Click on ‘Finish’ to complete the installation 4. Audacity should automatically start up (The Audacity icon will now be seen on the desktop, double click on it to start Audacity running if it not start up automatically) Note: If an icon does not appear, go to the ‘C‘ drive under ‘My Computer‘, click on ‘Program files‘ and then ‘Audacity‘. Right click on the ‘orange ball wearing Headphones’...
- Page 9 Using the Audacity software • Plug the USB cable (cable included in the package)into the back of the unit and the other end into a spare USB port on your computer. • Run the Audacity software by double clicking the Audacity icon. •...
- Page 10 Exporting your music files to other devices • Once you have recorded and edited your music, you will need to save your files to the computer. To do this, click on "File" option and move down to "Export " option as to save as MP3/WAV..•...
-
Page 11: How To Replace The Needle
RCA Audio Output Requires RCA audio cables (red/white, not included). Use to connect the turntable to an external stereo, television, or other source. 1. Connect RCA audio cables to the RCA Audio Output on the back of the turntable, and to the audio input of an external stereo system. -
Page 12: There Is No Power
TROUBLESHOOTING There is no power • Power adaptor is not connected correctly. • No power at the power outlet. • Use the wrong adapter instead of he original one included. • Power button is not turned on, turn the volume/ON/OFF button clockwise to turn on. •... -
Page 13: Specifications
Specifications TE-003 Turntable Type Belt drive full manual DC motor Drive Motor Speed 33, 45, 78 RPM Turntable platter 200mm Bluetooth Version Frequency Range 2402MHz to 2480MHz Maximum Transmission Power <8dbm General input AC100-240V~50/60Hz ADAPTOR output DC12V-2A PRODUCT DC12V-2A Rated Power Consumption 328x248x100mm for main unit;... - Page 14 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure Statement The distance between user and products should be no less than 20cm. Model: TE-001 FCC ID: 2A453-TE001 Made In China AUDMIC INDUSTRIAL LIMITED...
