Carlisle BINKS 140B 6530-0000-1 Service Manual

SERVICE MANUAL
EN
12
10
11

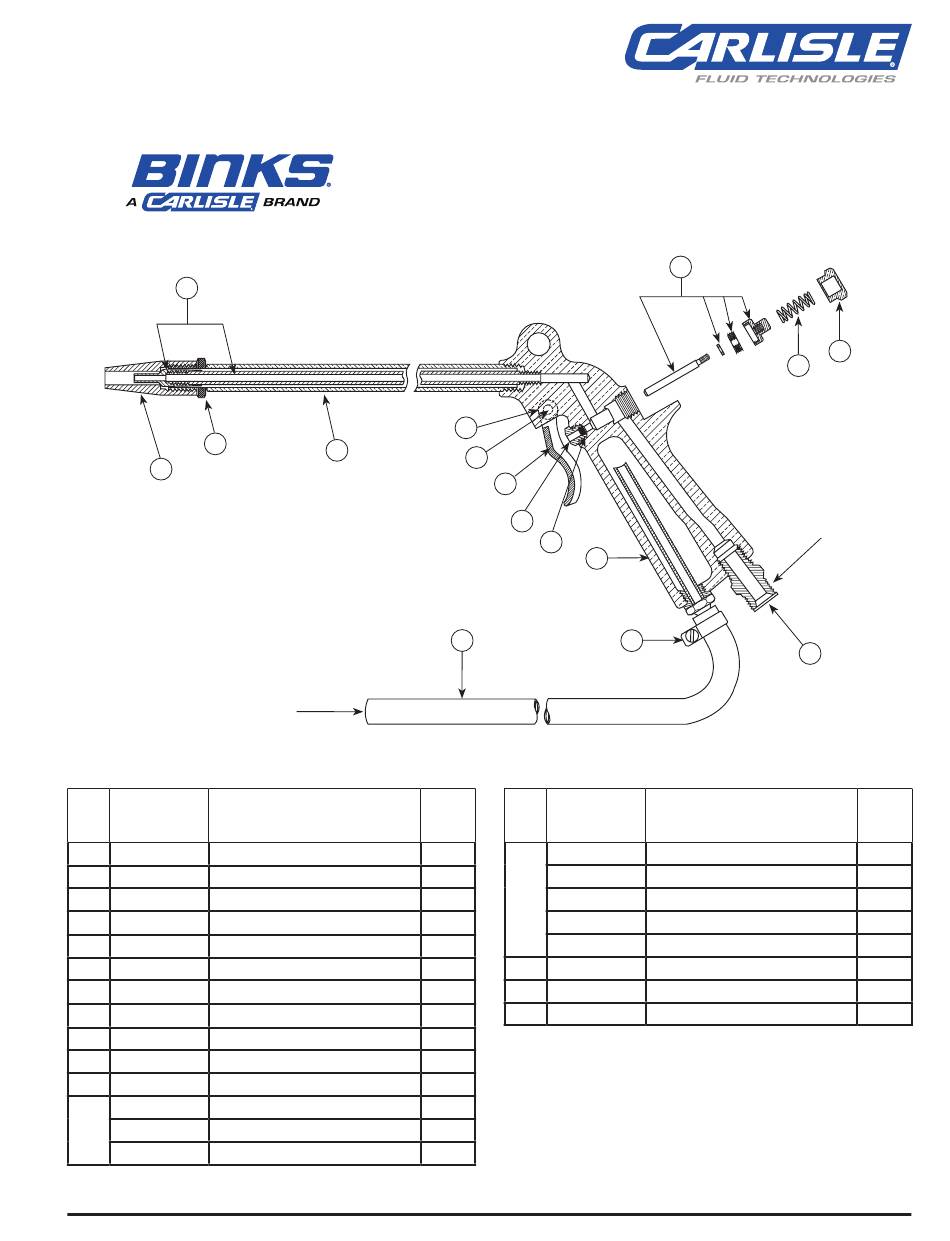

The Binks Model 140B spray gun is used for spraying
solvents to clean engines and other machinery. Spray
gun has a brass body with a ten inch nozzle/tube
length. Flexible tubing is attached to the spray gun
handle with a hose clamp for siphoning solvent from
container. 1/4" NPS(m) air inlet. Requires 14 CFM air
at 50 PSI. Working CFM can range from 8-1/2 to
18-1/2 CFM and from 40 to 100 PSI. Spray gun weight
(less hose): 1.37 lbs.
FLUID INLET
Ref. Replacement
No. Part No.
1 SUCTON HOSE 1/4" I.D. X 6' LONG
●
2 — HOSE CLAMP
3 — BODY ASSEMBLY
4 82-158-5 ▲ PACKING
5 57-89 PACKING NUT
6 57-116 TRIGGER
7 TRIGGER SHAFT
57-117-5 ▲
8 20-2994-5 ▲ E-CLIP
9 57-93 OUTSIDE TUBE
10 57-8* NOZZLE LOCK NUT
11 57-92* OUTSIDE NOZZLE
57-101 AIR TUBE ASSEMBLY
12 — NOZZLE
— TUBE
77-1191-R15 (11/2020)
MODEL 140-B™ ENGINE CLEANER
6530-0000-1
9
Ind.
Description Parts
Req'd.
1
2
1
1
1
2
1
1
1
1
8
7
6
5
4
3
1
2
Ref. Replacement
No. Part No.
57-179
—
13
57-125-5 ▲
58-3
58-4
14 57-100
15 57-96
16 57-13-1
* Note: To adjust fluid flow, loosen nut (10) and turn nozzle (11).
▲ A vailable in Quantity Pak of 5.
● B ulk hose pn: 71-10000.
1 / 4
13
14
1/4" NPS(m)
16
AIR INLET
Description
AIR VALVE ASSEMBLY
STEM
WASHER
VALVE DISC RETAINER
VALVE DISC
AIR VALVE SPRING
AIR VALVE CAP
AIR CONNECTION
www.carlisleft.com
15
Ind.
Parts
Req'd.
1
1
1
1
