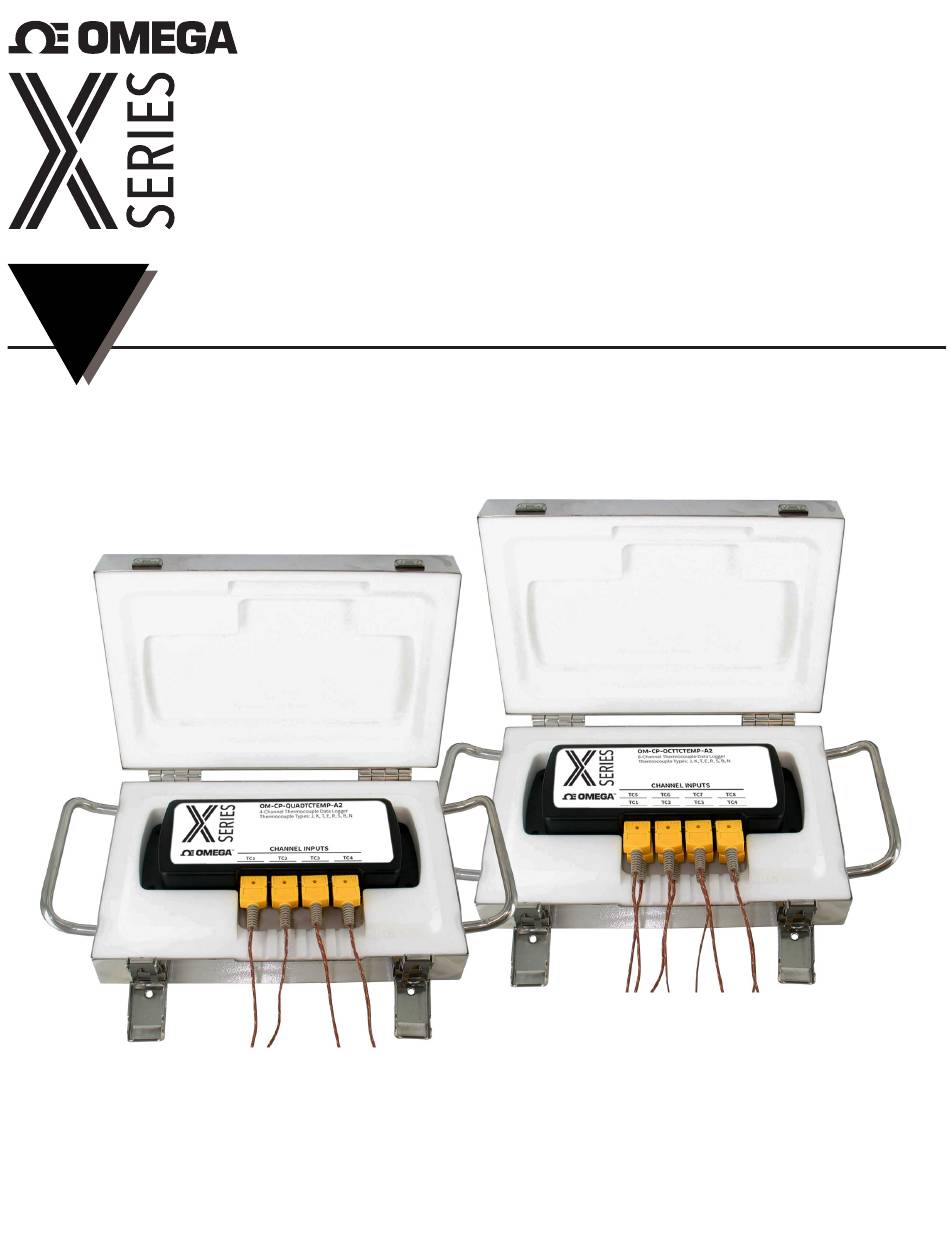

- Page 1 OM-CP-THERMOVAULTX SERIES 4 & 8-Channel Thermocouple Xxxxx Xxxxxx Data Logger Xxxxx Xxxxxx Xxxxxxxx INSTRUCTION MQS5771/0920 M0000/0016 SHEET Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info...
-
Page 2: Quick Start Steps
2. Launch the Omega Software. 3. The OM-CP-THERMOVAULTX Series come with a USB cable. Plug one end of the cable into an available USB port on the PC and plug the opposite end of the cable into the communication port on the OM-CP- TCTEMPX Series. -
Page 3: Product Overview
OM-CP-THERMOVAULTX Series Product Overview The OM-CP-THERMOVAULTX Series is an oven temperature recorder that consists of a OM-CP-QUADTCTEMP or OM-CP-OCTTCTEMP inside a thermal enclosure. The thermal enclosure acts as a buffer and allows the device to be placed in higher operating environments for certain durations of time. The chart outlines the maximum temperature and time duration to which the device can be exposed. - Page 4 OM-CP-THERMOVAULTX Series Device Operation (cont’d) Channel Naming Up to a 10-character channel name can be programmed into the data logger for each channel. This ability helps to rename a channel in a report to distinguish it from other similarly named channels.
-
Page 5: Device Maintenance
OM-CP-THERMOVAULTX Series Device Maintenance Battery Replacement Materials: 3/32 inch HEX Driver (Allen Key) and a Replacement Battery (OM-CP-BAT103) or any 9 V battery 5. Remove the cover from the device by unscrewing the two screws. 6. Remove the battery from its compartment and unsnap it from the connector. -
Page 6: Specifications
OM-CP-THERMOVAULTX Series Specifications INTERNAL CHANNELS GENERAL 4-channel: 524,032 readings per channel Temperature -20 °C to +60 °C (-4 °F to +140 °F) Memory 8-channel: 262,016 readings per channel Range (All channels enabled) Temperature 0.01 °C (0.018 °F) Resolution Start Modes... - Page 7 OMEGA is a registered trademark of OMEGA ENGINEERING, INC. © Copyright 2016 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.
