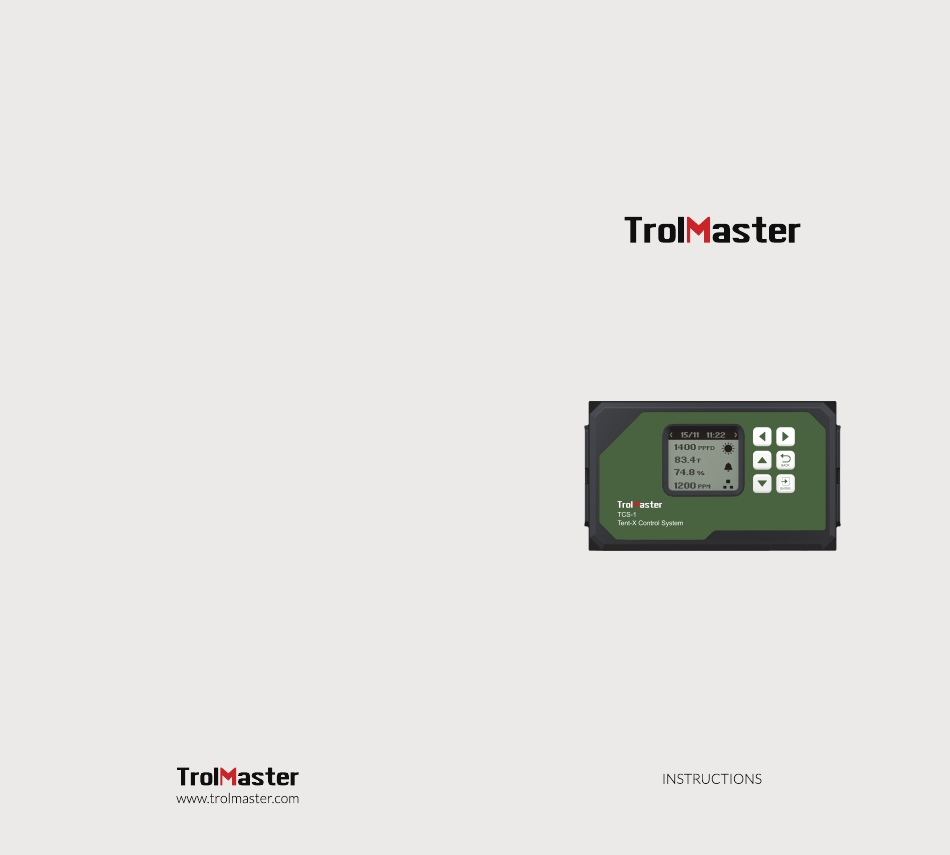

  • Page 1 TCS-1 Tent-X Control System...
  • Page 2 It's crucial to choose the right length that suits your • 16ft RJ12 Cable application. When purchasing the TCS-1 TENT-X Control System, you'll receive a 4ft and 16ft cable as part of the package. However, if you need longer cables, we also offer them in 25ft and 50ft lengths.

  • Page 3: Sensor Connections

    2. Light Connections The TCS-1 can control most brands of LED or HID lights using the two built-in lighting control channels on the TCS-1. Each of the two can operate independently of each other to allow two different types or brands of lights to be controlled, or to be able to split a grow room’s...

  • Page 4: Internet Connection

    TrolMaster’s 8-port splitter hub (SPH1) to connect multiple devices to the Tent-X. 3. Device Module Connections All of the device modules used with the TCS-1 will be connected to the 4. Internet Connection RJ12 port at the bottom of the controller, labeled DEVICES. First,...

  • Page 5: Main Interface

    MAIN INTERFACE Alarm notifications The alarm notification page is where all of your alarm notifications are When you plug in the Tent-X for the first time, you will land on the consolidated. This is where you can check up on missed alarm homepage on the LCD display.
  • Page 6 DSC module can only control CO2 devices, and the DSP module is a multi-function module that works as a timer. TrolMaster’s Tent-X controller allows up to 8 four plug-in modules to be connected to the Tent-X. Two of the 8 available slots are reserved...

  • Page 7: Intake Fan

    • Dehu Priority mode: The exhaust fan is controlled by both temperature preferred irrigation schedule. Your timer-controlled devices will be and humidity, however, it will prioritize humidity to be within the defined controlled automatically with the TCS-1 according to the settings you range if both can’t be achieved. specified.

  • Page 8: System Settings

    When the values exceed or drop below the defined Maximum and Minimum setpoint in the alarm settings, you will Setting Setting immediately be notified on the controller and through TrolMaster’s app, TM+ Pro. Exhaust Fan (F1) Intake Fan...

  • Page 9: Specifications

    Opening the controller will void the warranty. If the surface of TCS-1 Dry Contact Board is dirty, wipe it with a dry towel. The TCS-1 Dry Contact Board operates under natural ventilation conditions.
