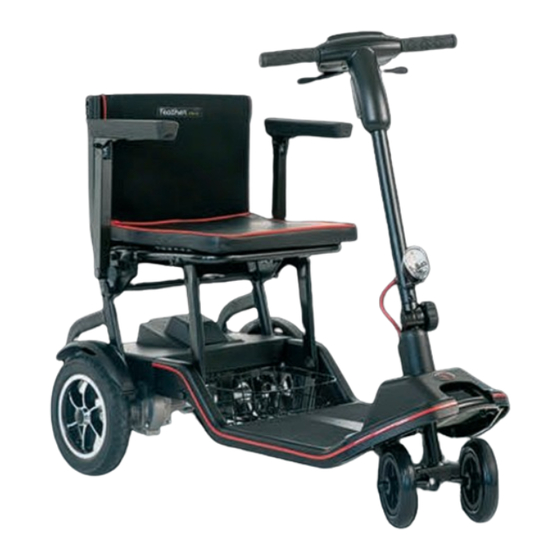

Feather FOLD User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User
ManUal
EN

Advertisement

Table of Contents
loading

Summary of Contents for Feather FOLD

  • Page 1 User ManUal...
  • Page 2 lightest mobility range ever. . .
  • Page 3 Learn more about your Feather Fold Scooter today...

  • Page 4: Table Of Contents

    Driving on inclines ............16 18 Servicing ..................33 Folding the Scooter ............17 19 Notes ....................35 Fitting the Battery ..............18 Inserting the Battery Box ..........18 Removing the Battery Box ......... 18 Scooterpac Feather Fold | User Manual...

  • Page 5: Before Using

    For safety reasons, please do not allow the mobility scooter to be used by children, pregnant women, or other people who are not suitable to use mobility scooters. Please fully charge your scooter, at least once a week to maintain battery life & maximise performance. Even when the scooter isn’t in use. Scooterpac Feather Fold | User Manual...

  • Page 6: Welcome

    Address 2 ________________________ keep your Feather Fold in good working order. If you have any questions, please contact the Scooterpac Town/City ________________________ dealer that supplied your Feather Fold and they will be happy to help you. Postcode ________________________ Phone Number ________________________...

  • Page 7: Legal

    3 Legal The Scooterpac Feather Fold is designed to be operated by a single person, in accordance with the legal requirements for operating a Class 2 invalid carriage in the jurisdiction in which it was sold. Operating the vehicle outside of these limitations may invalidate your warranty.

  • Page 8: Safety Guidelines

    Please be aware that the final selection and purchasing decision regarding the type of mobility scooter to be used is the responsibility of the scooter user who is capable of making such a decision and his/her healthcare professional (e.g., doctor, physical therapist, etc.). Scooterpac Feather Fold | User Manual...
  • Page 9 Additional general information can be found on the supplemental information sheets and booklets included in your Scooterpac Welcome Pack. Please fully read and review the information and keep it readily available for future reference. Scooterpac Feather Fold | User Manual...

  • Page 10: Pre-Ride Safety Check

    WARNING! Never attempt to get onto or off your scooter without first removing the key from the key switch. This will prevent the scooter from moving if accidental throttle control lever contact is made. WARNING! Never drive the scooter with the tiller lock in the locked position. Scooterpac Feather Fold | User Manual...

  • Page 11: Specification

    Ground Clearance Weight (excluding battery) 16.8kg Electromagnetic brake Brake System Rear wheel (differential) drive Driving System Controller 25.2V / 10Ah (Lithium Battery 120W Brushless Motor Motor Power (VA) Automatic protective type charger (29.4V 2A) Charger Scooterpac Feather Fold | User Manual...

  • Page 12: Controls

    Horn Button: This button activates a warning horn. Your mobility scooter must be turned on for the horn to be operational. Do not hesitate to use the warning horn to prevent an accident or injury. Scooterpac Feather Fold | User Manual...
  • Page 13 This dial allows you to preselect and limit the top speed in the range of 0mph – 4mph: • The image of the snail represents the slowest speed setting. • The image of the hare represents the fastest speed setting. Scooterpac Feather Fold | User Manual...

  • Page 14: Operating Your Scooter

    Use your right-hand fingers to pull back on the right side of the throttle control lever. 8. To stop, release the throttle control lever to allow your scooter to stop gradually. The electronic brakes will automatically engage when your scooter comes to a stop. Scooterpac Feather Fold | User Manual...

  • Page 15: Steering

    5. Show even greater caution when steering in reverse. WARNING! Turning your scooter too sharply at high speed will cause loss of control and balance and will result in the scooter tipping over resulting in serious injury or death. Scooterpac Feather Fold | User Manual...

  • Page 16: Driving On Inclines

    • Try to keep your scooter moving when climbing or descending an incline. If you must stop, restart, and accelerate slowly and carefully. Scooterpac Feather Fold | User Manual...

  • Page 17: Folding The Scooter

    8.4 Folding the Scooter To fold the scooter, pull out the fold knob as shown below, [Fig 8.4.1] at the same time gently lower the seat back down into its folded position. Now with the seat folded, loosen off the tiller adjuster knob and gently lower the tiller into the folded position.

  • Page 18: Fitting The Battery

    Make sure the rubber protector flap remains on top of the battery box. 9.2 Removing the Battery Box To remove the battery box, push the box forwards against the sprung connectors and then lift to release the box. Fig 9.1.1 Scooterpac Feather Fold | User Manual...

  • Page 19: Freewheel Lever

    1. Drive position - is indicated by ‘Closed’ - pull the lever downwards for this position. [Fig 10.0.1] 2. Freewheel position - is indicated by ‘Open’ – push the lever upwards for this position. {Fig 10.0.1] Fig 10.0.1 Scooterpac Feather Fold | User Manual...
  • Page 20 WARNING! Stand to the side of the scooter to engage or disengage freewheel mode. Never sit on a scooter to do this. WARNING! After you have finished pushing your scooter, always return it to the drive mode to lock the brakes. Scooterpac Feather Fold | User Manual...

  • Page 21: Batteries And Charging

    Do not charge your battery under extreme temperatures. High temperatures above 30°C is not recommended for charging as well as low temperatures below 10°C. • You cannot overcharge the battery when using the charger supplied with your vehicle, or a charger that has been approved by Scooterpac. Scooterpac Feather Fold | User Manual...

  • Page 22: Battery Warnings

    WARNING! Do not use the battery if it gives off an odour, generates heat, or appears abnormal in any way. If the battery is in use or being recharged, remove it from the device or charger immediately and discontinue use. Scooterpac Feather Fold | User Manual...
  • Page 23 If the battery charger is exposed to adverse or extreme weather conditions, then it must be allowed to adjust to different environmental conditions before use indoors. Refer to the manual supplied with the battery charger for more information. Scooterpac Feather Fold | User Manual...

  • Page 24: Charging Your Batteries

    • The LED light on the battery charger will show green when batteries are fully charged. • Turn off the mains power to the charger before removing the charger plug from the charging outlet. Scooterpac Feather Fold | User Manual...

  • Page 25: Emi / Rfi

    Be aware that adding accessories or components or modifying your scooter may make it more susceptible to EMI / RFI. WARNING! Turn off your scooter as safely as possible if unintended or uncontrollable motion occurs or if unintended park brake release occurs. Scooterpac Feather Fold | User Manual...

  • Page 26: Daily Checking

    Does the gauge move to green when switched “ON”? Battery Gauge Is the remaining power enough for your trip? Horn Button Does the horn sound when the horn button is pressed? Seats Is the seat fitted correctly? Scooterpac Feather Fold | User Manual...

  • Page 27: Regular Checking Record

    The condition of the tires depends on how you drive and use your scooter. Inspecting Tire Treads Please check the tread depth regularly. Replace the tires when the tread depth is less than 0.5 mm. Scooterpac Feather Fold | User Manual...

  • Page 28: Maintenance

    Please clean the scooter by wiping it with either a dry or moist cloth. Please take the scooter to authorized dealers for repairs and adjustments. Improper adjustments could lead to accidents and scooter malfunction. Scooterpac Feather Fold | User Manual...

  • Page 29: Basic Troubleshooting

    2. Defective or worn out battery 2. Load test batteries. If necessary, 3. Cold weather reduces battery replace life 3. Allow batteries to reach room 4. Defective charger temperature and then fully recharge 4. Contact your authorised Scooterpac Dealer. Scooterpac Feather Fold | User Manual...

  • Page 30: Flash Codes

    * ****** centre position when again. switching scooter on 2. Check that the charger is not connected 1. Check the charger and charging socket * *** Charge inhibited 2. Contact your Dealer Scooterpac Feather Fold | User Manual...
  • Page 31 1. Check the motor connections and current * **** Internal motor sensor error draw 2. Contact your Dealer 1. Check all wiring connections including main battery connections. ** **** Controller error 2. The controller needs replacing 3. Contact your Dealer. Scooterpac Feather Fold | User Manual...

  • Page 32: Warranty

    Scooterpac dealer from which it was purchased. If a repair cannot be completed a replacement part will be fitted. If a manufacturing defect is found, it must be reported in writing to the Scooterpac dealer from which the Feather Fold was purchased from within 28 days of purchase.

  • Page 33: Servicing

    18 Servicing To ensure continued safe operation, the Feather Fold must be serviced every 12 months. We recommend recording the servicing dates and locations on the sheets below. Always have your Feather Fold serviced at an authorised Scooterpac dealer, using original Scooterpac parts.
  • Page 34 Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Next Service Year Service Dealer Name Technician Name Date of service Mileage Notes Signed Scooterpac Feather Fold | User Manual...

  • Page 35: Notes

    19 Notes Scooterpac Feather Fold | User Manual...
  • Page 36 Brighten your day Tel: 0330 124 1733 Web: www.scooterpac.com SP/FFS/M/EN/2023-A...
