LTO Autoloader Barcode Reader
Required tools:
Small flat-blade screwdriver
Mounting instructions:

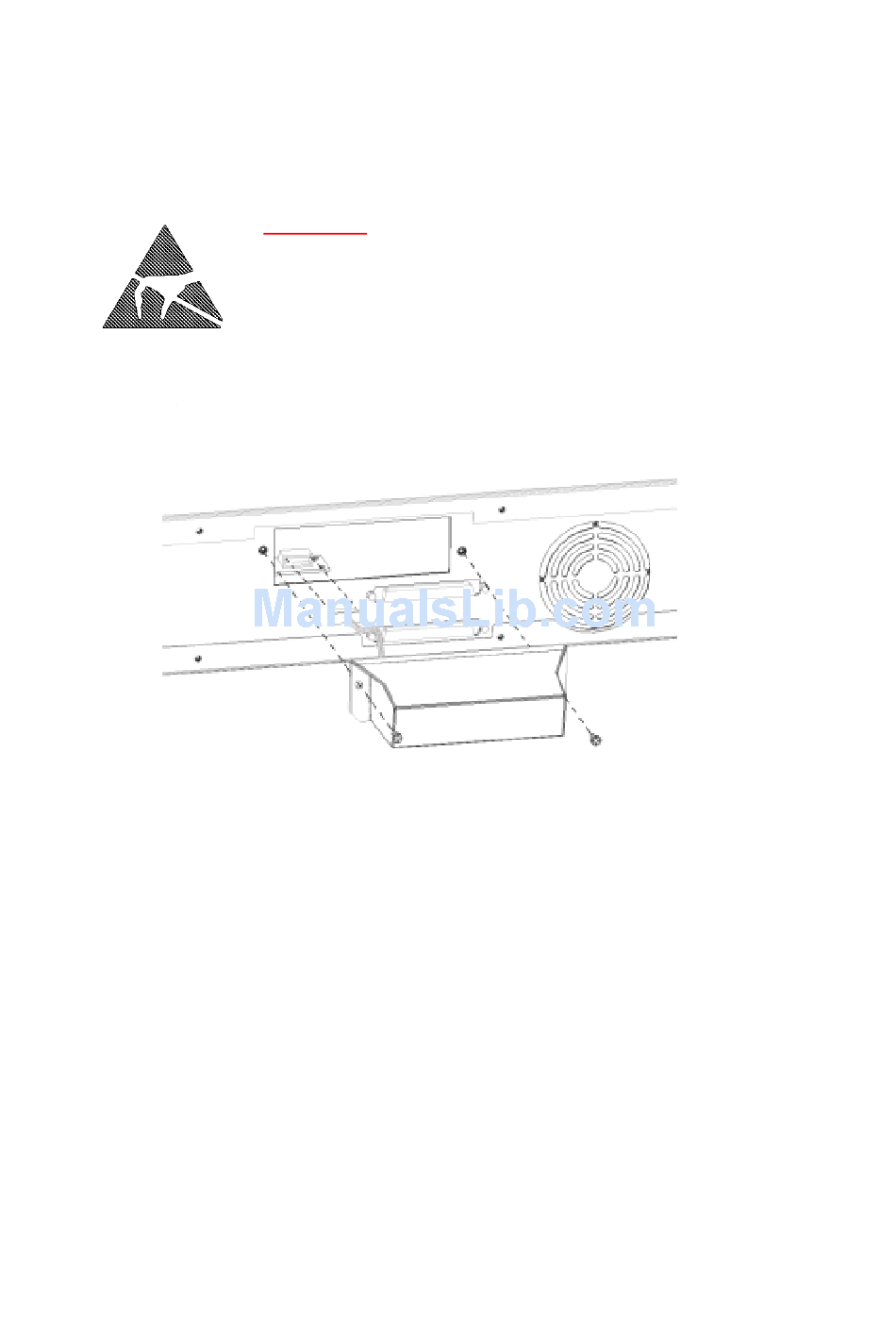

1. The barcode reader is to be mounted on the rear side of the autoloader.
2. Power down the autoloader
3. Remove the SCSI cable(s) and power cord from the rear panel of the autoloader and
disconnect the power cord from the outlet.
4. Remove the cover plate from the rear panel and save the screws. Store the cover plate;
you may use this plate later if you remove the barcode reader.
5. Orient the barcode reader in front of the slot. There is only one correct position. Check to
make sure that the holes align.
6. Connect the cable to the barcode controller outlet.
7. Attach the barcode reader with the screws you saved.
8. Reconnect the SCSI cables and power cord to the autoloader.
ATTENTION!
ESD Sensitive Component.
Please touch unit cover or rear panel before installing
the barcode reader to avoid electrostatic discharge.
3
