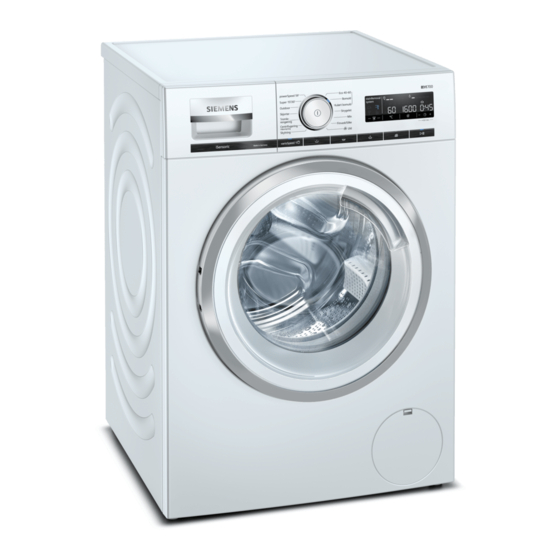

- Page 1 WM16XMA9DN Washing machine EN User manual and installation instructions Register your appliance on My Siemens and discover exclusive services and offers. Siemens Home Appliances...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 7 Display ........ 21 1.1 General information.... 4 8 Buttons ........ 23 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 9 Programmes ...... 25 1.4 Safe installation ...... 5 10 Accessories...... 29 1.5 Safe use ........ - Page 3 14 Childproof lock...... 32 14.1 Activating the childproof lock ........ 32 14.2 Deactivating the childproof lock ........ 32 15 Basic settings...... 34 15.1 Overview of basic settings .. 34 15.2 Changing the basic set- tings........ 35 16 Cleaning and servicing ... 35 16.1 Cleaning the drum.... 35 16.2 Cleaning the detergent drawer........
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Connect the appliance to a power supply with alternating cur- ▶ rent only via a properly installed socket with earthing. The protective conductor system of the domestic electrical in- ▶... - Page 6 en Safety WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. Do not lift the appliance on your own. ▶ If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall. Only stack the dryer on a washing machine using the connec- ▶...
-
Page 7: Safe Use
Safety en Wear protective gloves when installing and transporting the ap- ▶ pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always ▶... - Page 8 en Safety WARNING ‒ Risk of poisoning! Detergents and care products may result in poisoning if con- sumed. If accidentally swallowed, seek medical advice. ▶ Keep detergents and care products out of the reach of children. ▶ WARNING ‒ Risk of explosion! Laundry that has been pretreated with cleaning agents that con- tain solvents may cause an explosion in the appliance.
-
Page 9: Safe Cleaning And Maintenance
Safety en 1.6 Safe cleaning and maintenance WARNING ‒ Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained ▶ specialist staff. Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be re- ▶... -
Page 10: Preventing Material Damage
en Preventing material damage Make sure that the length of the ▶ 2 Preventing material thread on the connection to the water tap is at least 10 mm. damage If the water pressure is too high or too low, the appliance may not be ATTENTION! able to operate properly. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en Remove all detergent residue, Reduce the washing temperature for ▶ spray residue or other residues im- lightly and normally soiled laundry. mediately if they come into contact a At lower temperatures, the appli- with the appliance. ance consumes less energy. -
Page 12: Installation And Connection
en Installation and connection Replace the accessories in ques- ▶ 4 Installation and con- tion before operating the appli- ance. nection → "Accessories", Page 29 Note: The appliance has been tested 4.1 Unpacking the appliance at the factory to check it is in working order. As a result, water stains may ATTENTION! remain in the appliance. - Page 13 Installation and connection en ATTENTION! Installation loca- Requirements If residual water in the appliance tion freezes, this may cause damage to Against a wall Do not trap the the appliance. power cord or Do not install or operate this appli- ▶ the hoses ance anywhere that is liable to ex- between the wall...
- Page 14 en Installation and connection Unscrew and remove all of Put on the 4 cover caps. the screws for the 4 transit bolts using a WAF 13 wrench. Push the 4 cover caps downwards. Remove the power cable from the holder. Note: To install the transit bolts to transport the appliance, perform these steps again in the reverse or- Remove the 4 sleeves.
-
Page 15: Removing The Transport Struts
Installation and connection en Remove the transport strut. 4.5 Removing the transport struts Unscrew and remove the screws in the vertical transport struts using a T20 screwdriver. 4.6 Connecting the appliance Connecting the water inlet hose WARNING Remove the transport struts. Risk of electric shock! The appliance contains live parts. - Page 16 en Installation and connection When connecting to a 21 mm = ½" Sink Fix and secure tap, first fit the adapter with a seal- the water outlet ing washer. hose with an el- bow. Plastic pipe with Fix and secure rubber sleeve or the water outlet gully hose with an el-...
-
Page 17: Aligning The Appliance
Installation and connection en Use a WAF 17 wrench to tighten 4.7 Aligning the appliance the lock nuts against the housing In order to reduce noise and vibra- until they are hand-tight. tion and to prevent the appliance from moving, align the appliance cor- rectly. -
Page 18: Detergent Drawer
en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Maintenance flap for the drain Transit bolts → Page 13 pump → Page 36 Water inlet hose → Page 15... -
Page 19: Control Panel
Familiarising yourself with your appliance en Measuring aid for liquid deter- gent → "Inserting the measuring aid for liquid detergent", Page 30 Dispenser II: detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash and soaking 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. -
Page 20: Before Using For The First Time
en first time Start the first wash cycle or press first time 6 Before using for the to switch off the appliance. → "Basic operation", Page 30 first time Prepare the appliance for use. first time 6.1 Starting an empty wash- ing cycle Your appliance was inspected thor- oughly before leaving the factory. -
Page 21: Display
Display en 7 Display The display shows the current settings, options or relevant information. Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. Program end time → "Buttons", Page 23 Recommendation for the maximum load capacity for the selected program in kg. - Page 22 en Display Display Description Red wine The stain type is activated. Cooking fat/cooking oil The stain type is activated. Energy consumption for the selected programme. : Low energy consumption ¡ : High energy consumption ¡ Water consumption for the selected programme. : Low water consumption ¡...
-
Page 23: Buttons
Buttons en 8 Buttons The selection of programme settings depends on the programme that is set. Button Selection More information (Start/Reload/ Start Start, cancel or pause the pro- ¡ Pause) gramme. Cancel ¡ Pause ¡ varioSpeed Activate Activate or deactivate a shorter pro- ¡... - Page 24 en Buttons Button Selection More information Activate Activate or deactivate a washing pro- ¡ (Water & Rinse gramme with more water and an addi- Deactivate ¡ Plus) tional rinse cycle. Recommended for particularly sensit- ive skin or in regions with very soft water.
-
Page 25: Programmes
Programmes en 9 Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. load (kg) Cotton Wash hard-wearing items made from cotton, linen or blended fabrics. Also suitable as a short programme for normally soiled laundry when you activate varioSpeed Programme setting: Max. - Page 26 en Programmes Programme Description Max. load (kg) Easy Care Wash items made from synthetic or blended fab- rics. Programme setting: Max. 60 °C ¡ Max. 1200 rpm ¡ Wash items made from cotton, linen, or synthetic or blended fabrics. Suitable for lightly soiled laundry. Programme setting: Max.
-
Page 27: Laundry
Programmes en Programme Description Max. load (kg) Programme setting: Max. 1600 rpm Shirts Wash non-iron shirts and blouses made from cot- ton, linen, or synthetic or blended fabrics. Tip: In order to avoid creasing in your laundry, you can activate . The laundry is only given a short spin and can be removed while still dripping wet. - Page 28 en Programmes Programme Description Max. load (kg) If you wish to reduce the programme duration to 15 minutes, activate varioSpeed . The maximum load is reduced to 2.0 kg. Programme setting: Max. 40 °C ¡ Max. 1200 rpm ¡ activated varioSpeed Washing not possible...
-
Page 29: Preparing The Laundry
Accessories en 10 Accessories Use original accessories. These have been made especially for your appliance. Order num- Water inlet hose ex- Extend the water inlet hose for cold water WZ10131 tension or AquaStop (approx. 2.50 m). Fixing brackets Improves the stability of the appliance. WX975600 Liquid detergent in- Measure liquid detergent. -
Page 30: Basic Operation
en operation Requirements operation 13 Basic operation The laundry is prepared and sor- ¡ ted. operation → "Laundry", Page 29 13.1 Switching on the appli- The drum is empty. ¡ ance Open the door. Place the laundry in the drum. Requirement: The appliance has been correctly installed and connec- Close the door. -
Page 31: For Liquid Detergent
operation en Pull out the detergent drawer. 13.6 Use the measuring aid Pour in detergent. for liquid detergent → "Detergent drawer", Page 18 To add liquid detergent, you can use If required, add the care product. a measuring aid in the detergent Push in the detergent drawer. drawer. -
Page 32: Resuming The Programme When The Programme Status Is Rinse Hold
en Childproof lock – If the temperature is high, start Wipe the rubber gasket dry and re- the Rinse programme. move any foreign objects. – If the water level is high, start the Spin programme or select a suitable programme for draining. → "Programmes", Page 25 Remove the laundry. - Page 33 Childproof lock en So that the programme currently running is not cancelled, the pro- gramme selector must be set to the initial programme. goes out in the display.
-
Page 34: Basic Settings
en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of basic settings Basic setting Programme posi- Value Description tion End signal 0 (off) Set the volume of 1 (quiet) the signal at the 2 (medium) end of the pro- 3 (loud) -
Page 35: Changing The Basic Set- Tings
Cleaning and servicing en 15.2 Changing the basic set- 16 Cleaning and servi- tings cing Set the programme selector to po- To keep your appliance working effi- sition 1. ciently for a long time, it is important to clean and maintain it carefully. 16.1 Cleaning the drum CAUTION Risk of injury! -
Page 36: Cleaning The Drain Pump
en Cleaning and servicing Press down on the insert and re- Fit the insert and click it into place. move the detergent drawer. Clean the opening for the deter- Pull out the insert upwards. gent drawer. Clean the detergent drawer and in- Push in the detergent drawer. - Page 37 Cleaning and servicing en Open and remove the mainten- CAUTION - Risk of scalding! ance flap. When you wash at high temperat- ures, the detergent solution gets hot. Do not touch the hot detergent ▶ solution. To allow the detergent solution to flow out into the container, remove the sealing cap.
- Page 38 en Cleaning and servicing Ensure that both impellers can Cleaning the drain pump turn. Requirement: The drain pump is empty. → Page 36 Since water may remain in the drain pump, unscrew the pump cap carefully. The filter insert in the pump ‒ housing may become stuck due to coarse particles of dirt.
-
Page 39: Cleaning The Intake Opening In The Rubber Gasket
Cleaning and servicing en Insert and close the maintenance Remove any blockages from the flap. intake opening. Note: Do not use any sharp or poin- 16.4 Cleaning the intake ted objects. opening in the rubber gasket Regularly check the intake opening in the rubber gasket for any block- ages and clean the intake opening. -
Page 40: Troubleshooting
en Troubleshooting 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 41 Troubleshooting en Fault Cause and troubleshooting "E:30 / -80" Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 42 en Troubleshooting Fault Cause and troubleshooting "E:30 / -10" and/or If the error message is displayed again, call cus- tomer service. → "Customer Service", Page 50 "E:35 / -10" There is water in the base trough. Turn off the water tap. ▶ Call the after-sales service.
- Page 43 Troubleshooting en Fault Cause and troubleshooting All other error codes. Malfunction Switch the appliance off and then on again. If the message appears again, disconnect the appli- ance from the power supply for at least 30 seconds by pulling out the plug or by switching off the relev- ant circuit breaker in the fuse box.
- Page 44 en Troubleshooting Fault Cause and troubleshooting The water is not drain- Drain pipe or water outlet hose is blocked. ing. Clean the drain pipe and the water outlet hose. ▶ Drain pipe or water drain hose is caught or jammed. Ensure that the drain pipe and water drain hose are ▶...
- Page 45 Troubleshooting en Fault Cause and troubleshooting The spin cycle runs The unbalanced load detection system eliminates an several times. imbalance by repeatedly redistributing the laundry. Not a fault – no action required. ▶ Note: When loading, where possible, place large and small items of laundry together in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
- Page 46 en Troubleshooting Fault Cause and troubleshooting Heavy foam build-up Detergent dosage is too high. Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into the left-hand compartment (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 47 Troubleshooting en Fault Cause and troubleshooting Loud noises during Secure the appliance feet. ▶ the spin cycle. → "Aligning the appliance", Page 17 Transit bolts have not been removed. → "Removing the transit bolts", Page 13. ▶ Banging noises, rat- Foreign bodies have got into the drain pump. tling in the drain → "Cleaning the drain pump", Page 36 ▶...
- Page 48 en Troubleshooting Fault Cause and troubleshooting The spin result is not Note: Where possible, mix large and small items in satisfactory. The laun- the drum. Different sized items of laundry distribute dry is too wet/too themselves better during the spin cycle. damp. Start the Spin programme.
-
Page 49: Emergency Release
Transportation, storage and disposal en 17.1 Emergency release 18.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 36 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage. -
Page 50: Disposing Of Old Appliance
en Customer Service 18.4 Disposing of old appli- 19 Customer Service ance Function-relevant genuine spare parts Valuable raw materials can be re- according to the corresponding Eco- used by recycling. design Order can be obtained from Customer Service for a period of at WARNING least 10 years from the date on Risk of harm to health! -
Page 51: Aqua-Stop Guarantee
Customer Service en 19.2 AQUA-STOP guarantee In addition to warranty claims against the seller under the purchase agree- ment and in addition to our manufac- turer's warranty, we offer compensa- tion under the following conditions. If our Aqua-Stop system is defect- ¡ ive and causes water damage, we will make good the damage for private users. -
Page 52: Consumption Values
en Consumption values 20 Consumption values The following information is provided in accordance with the EU Ecodesign Regulation. The values given for programs other than the Eco 40-60 are indicat- ive only and were determined in accordance with the applicable standard EN60456. Programme Load Pro- Energy... -
Page 53: Technical Data
Technical data en This product contains light sources Nominal power 2300 W from energy efficiency class F. These Power consump- Off mode: ¡ light sources are available as a spare tion 0.10 W part and must only be replaced by Left-on mode: ¡... - Page 56 EN Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom BSH Hausgeräte GmbH Carl-Wery-Straße 34...
