Impulse Dynamics OPTIMIZER Integra CCM-D Patient Manual page 23

3. Obtain the AC Adapter from the Carrying Case and rotate
its DC output connector until the red dot on its connector
is visible.
4. Line up the red dot on the DC output connector of the AC
Adapter with the red line on the power input connector of
your Guardio Charger (see Figure 10) and then insert the
DC output connector into the power input connector.

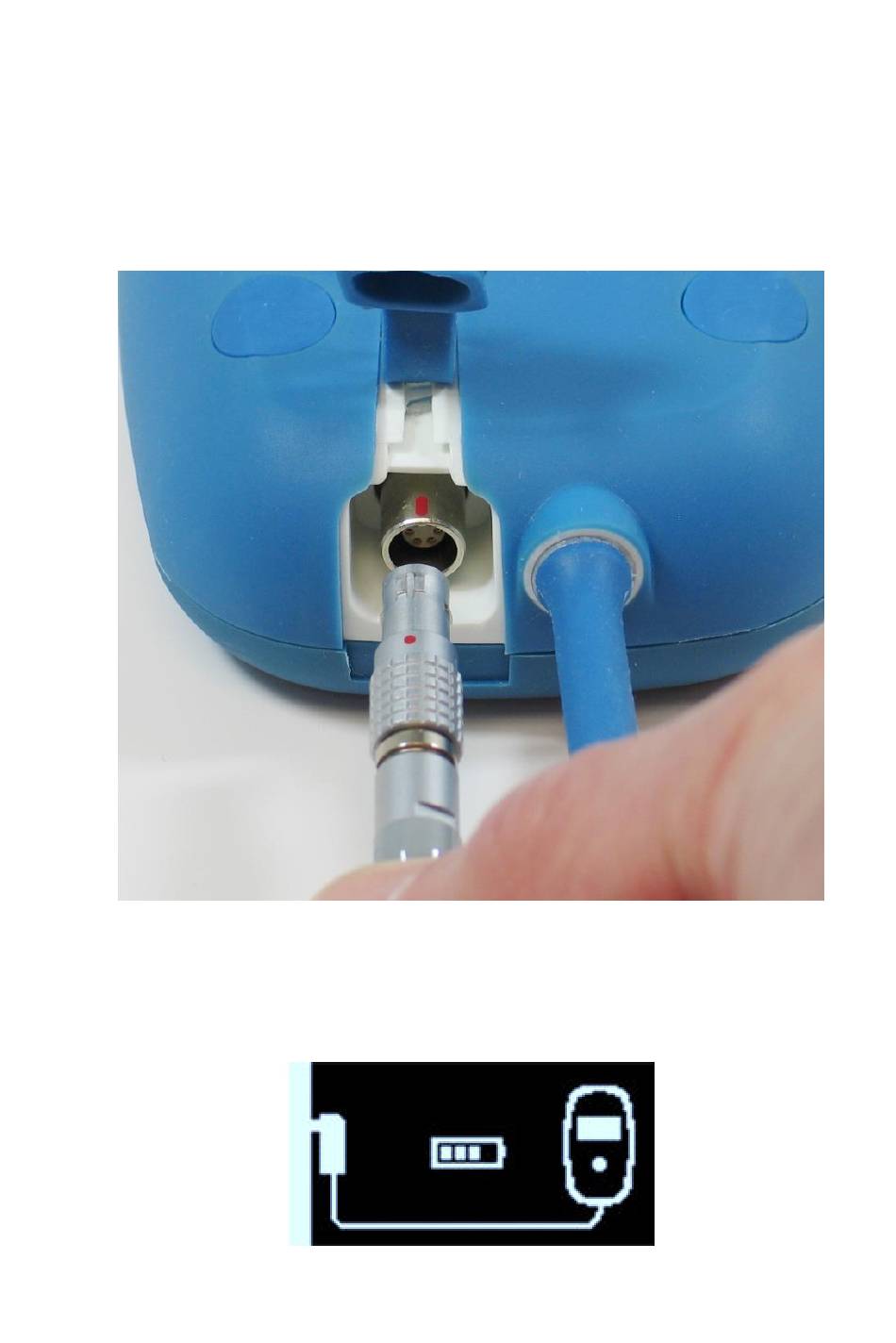

Figure 10: Alignment of the DC Connectors
Once the AC Adapter is connected to your Guardio
Charger, it will display the Charger Self-Charge Status
screen. See Figure 11.
Figure 11: Charger Self-Charge Status Screen
17
