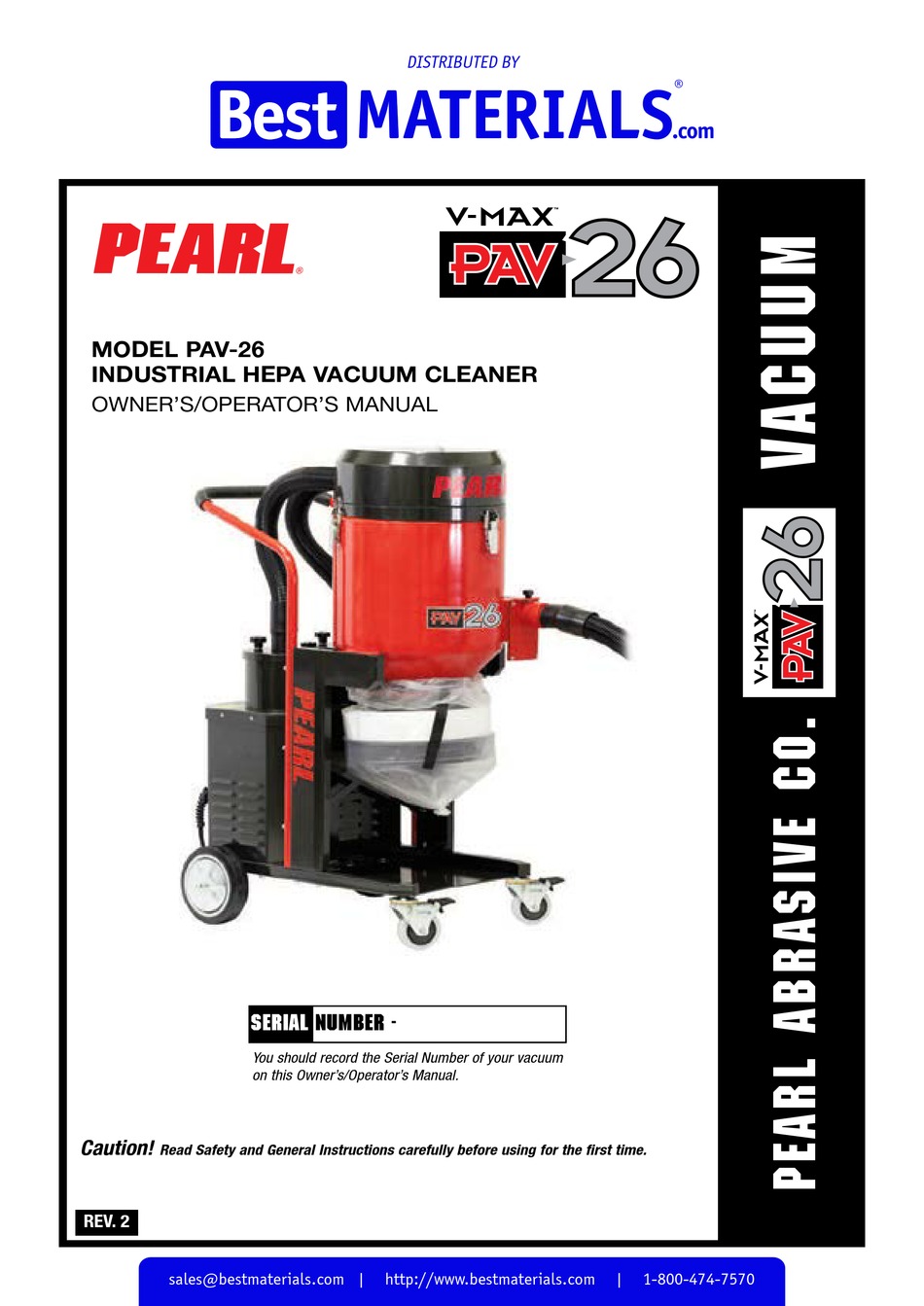

  • Page 1 DISTRIBUTED BY ® Model PAv-26 IndustrIAl hePA vAcuuM cleAner OWNER’S/OPERATOR’S MANUAL serial number - You should record the Serial Number of your vacuum on this Owner’s/Operator’s Manual. Caution! Read Safety and General Instructions carefully before using for the first time. REV.

  • Page 2: Table Of Contents

    Distributed by Best Materials® LLC TABLE OF CONTENTS PAGE SAFETY PRECAUTIONS ............3 PRODUCT INFORMATION .

  • Page 3: Safety Precautions

    Distributed by Best Materials® LLC i. SAFETY PRECAUTIONS WARNING! Read all instructions. As with all machinery there are certain hazards involved with operation and use of the machine. The following basic safety precautions should be followed at all times to reduce the risk of fire, electric shock and serious personal injury to you or others.

  • Page 4: Product Information

    Distributed by Best Materials® LLC ii. PRODUCT INFORMATION PAV-26 Vacuum cleaner is special designed for the floor grinding and polishing industry. With the characteristic as below: Strong suction, two-stage filter unit, stable and reliable, space saving, flexible mobility and easy operation. Apply to the single phase condition and superfine dust collection.

  • Page 5: Product Structure And Characteristics

    Distributed by Best Materials® LLC iv. PRODUCT STRUCTURE AND CHARACTERISTIC MAIN PARTS FIG 4.1 Structure Diagram UPPER TOP LID UPPER LID FOR BIN VIBRATION LEVER HOSE ANTI STATIC FILTER CARTRIDGE HANDRAIL 00 04 UPPER BARREL AIR INTAKE HEPA FILTER 00 12 CARTRIDGE VACUUM GAUGE BAGGING...
  • Page 6 Distributed by Best Materials® LLC 4.3 FILTRATION SYSTEM 4.5 CONTROL BOARD The Pearl V-Max™ PAV vacuums adopt two-stage filtering units. The first stage will be the anti-static filter cartridge which can filter the dust particle size of 3.0μm with filter efficiency up to 99%. The...

  • Page 7: Operations

    ①99999.9h ①9999d23h filter according to the actual situation and Scope ②99h59m59s ②9999h59m59s ③9999h59m ③999999h59m working hours. Since Pearl V-Max™ Vacuum series are equipped with carbon brush motors, Display Mode 6/8 digits LED display suggested continuous working hours do not Accumulation Error ≤0.1‰...
  • Page 8 Distributed by Best Materials® LLC 5.2 OPERATION OF THE CONTROL BOARD Just simply connect the plug in the socket, then it can come to use. CONNECTING THE POWER SUPPLY (T-PIN PLUG) Connect the plug at the other end of wire to the power supply. START BUTTON When the power is on, the indicator ①/②...
  • Page 9 Distributed by Best Materials® LLC 5.3.2 CLEANING THE 2ND STAGE FILTER (CARTRIDGE FILTER) Take the cartridges out from the container, and use gas gun or brush to clean the cartridge filter. Steps please refer to the following diagram: STEP 1 FIG 5.3.2 Loose the screws on the lid STEP 2...

  • Page 10: Circuit Diagram

    Distributed by Best Materials® LLC vi. PAV-26 CIRCUIT DIAGRAM vii. ROUTINE MAINTENANCE AND INSPECTION 7.1 DAILY MAINTENANCE Two areas need to be clean: the first area is to clean up the 1st filter cartridge and collection bag; the second area is to clean up the cartridge filters. (1) During the operation of the equipment is best to designate a person to clean and maintain all records.
  • Page 11 Distributed by Best Materials® LLC 7.2 TROUBLESHOOTING AND ELIMINATION METHOD PROBLEM POSSIBLE CAUSE SOLUTION - Exchange power cord L1 and L2. - Phase sequence inversed - Factory voltage fluctuation is too - Factory provides solution VACUUM CLEANER DOESN’T big, cause undervoltage or themselves.

  • Page 12: Main Parts List

    Distributed by Best Materials® LLC viii. PAV-26 MAIN PARTS LIST – 12 – http://www .bestmaterials.com 1-800-474-757 0 sales@bestmaterials.com | http://www.bestmaterials .com http://www .bestmaterials.com 1-800-474-757 0 1-800-474-757 0 sales@bestmaterials.com | http://www.bestmaterials .com 1-800-474-757 0 sales@bestmaterials.com | http://www.bestmaterials.com 1-800-474-7570 sales@bestmaterials.com | http://www.bestmater ia ls.com 1-800-474-7570...
  • Page 13 Distributed by Best Materials® LLC PART NAME PART NUMBER PART NAME PART NUMBER 8 in. castor PAV0001 27 Block plate for barrel mouth PAV0027 Stainless steel barrel PAV0002 28 Foaming board PAV0028 Bagging foundation PAV0003 29 VFG block plate for air inlet PAV0029 Bottom foundation PAV0004...

  • Page 14: Technical Parameter

    Distributed by Best Materials® LLC x. TECHNICAL Model PAV-26 PARAMETER Voltage/Hz 110V/60HZ Power 3.4 HP Airflow 258 CFM Max air pressure 100 in. H2O QTY of 1st stage filters (unit) QTY of 2nd stage filters (unit) Air inlet 2 in. (standard) Noise 82±2dB Filter efficiency...
  • Page 15 Distributed by Best Materials® LLC Notes: – 15 – http://www .bestmaterials.com 1-800-474-757 0 sales@bestmaterials.com | http://www.bestmaterials .com http://www .bestmaterials.com 1-800-474-757 0 1-800-474-757 0 sales@bestmaterials.com | http://www.bestmaterials .com 1-800-474-757 0 sales@bestmaterials.com | http://www.bestmaterials.com 1-800-474-7570 sales@bestmaterials.com | http://www.bestmater ia ls.com 1-800-474-7570...
  • Page 16 Pearl Abrasive Co. vacuums are thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship for a period of TWO YEAR from the date of original purchase. Pearl will repair or (at our opinion) replace a product, or part thereof, found by Pearl Abrasive Co.
