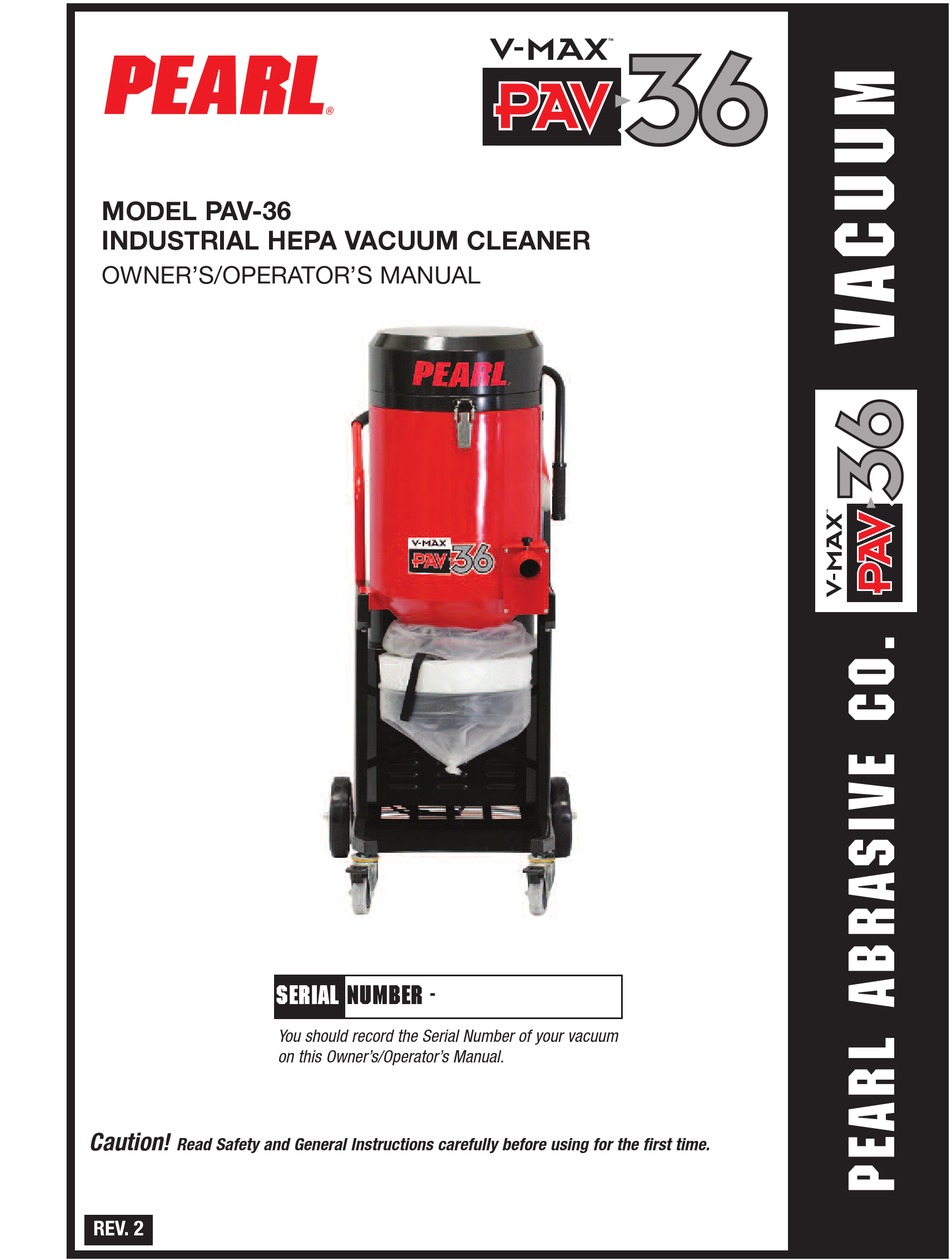

Model PAv-36
IndustrIAl hePA vAcuuM cleAner
OWNER'S/OPERATOR'S MANUAL
Caution!
Read Safety and General Instructions carefully before using for the first time.
REV. 2
serial
number -
You should record the Serial Number of your vacuum
on this Owner's/Operator's Manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAV 36 and is the answer not in the manual?

Questions and answers

Related Manuals for Pearl PAV 36

Summary of Contents for Pearl PAV 36

  • Page 1 Model PAv-36 IndustrIAl hePA vAcuuM cleAner OWNER’S/OPERATOR’S MANUAL serial number - You should record the Serial Number of your vacuum on this Owner’s/Operator’s Manual. Caution! Read Safety and General Instructions carefully before using for the first time. REV. 2...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE SAFETY PRECAUTIONS ............3 PRODUCT INFORMATION .

  • Page 3: Safety Precautions

    i. SAFETY PRECAUTIONS WARNING! Read all instructions. As with all machinery there are certain hazards involved with operation and use of the machine. The following basic safety precautions should be followed at all times to reduce the risk of fire, electric shock and serious personal injury to you or others. Keep these important operating instructions with this product.

  • Page 4: Product Information

    ii. PRODUCT INFORMATION PAV-36 Vacuum cleaner is special designed for the floor grinding and polishing industry. With the characteristic as below: Strong suction, two-stage filter unit, stable and reliable, space saving, flexible mobility and easy operation. Apply to the single phase condition, which requires 24 hours continuous working, and superfine dust collection.

  • Page 5: Product Structure And Characteristics

    iv. PRODUCT STRUCTURE AND CHARACTERISTIC MAIN PARTS FIG 4.1 Structure Diagram TOP COVER UPPER BARREL MANUAL AIR PULSE COVER BACK DEVICE MANUAL AIR PULSE HEPA FILTER CARTRIDGE BACK 00 04 DUST BARREL STAINLESS STEEL HANDRAIL DUST INLET HEPA FILTER 00 12 CARTRIDGE PLASTIC BAG BASE PRESSURE GAUGE...
  • Page 6 4.3 FILTRATION SYSTEM 4.5 CONTROL BOARD The Pearl V-Max™ PAV vacuums adopt two-stage filtering units. The first stage will be the filter cartridge which can filter the dust particle size of 3.0 microns with filter efficiency up to 99%. The...

  • Page 7: Operations

    Accumulation ②99h59m59s ②9999h59m59s filter according to the actual situation and Scope ③9999h59m ③999999h59m working hours. Since Pearl V-Max™ Vacuum series are equipped with carbon brush motors, Display Mode 6/8 digits LED display suggested continuous working hours do not Accumulation Error 0.1‰...
  • Page 8 5.2 OPERATION OF THE CONTROL BOARD Just simply connect the plug in the socket, then it can come to use. CONNECTING THE POWER SUPPLY (T-PIN PLUG) Connect the plug at the end of wire to the power supply. START BUTTON When the power is On, the indicator ①/②/③...
  • Page 9 5.3.2 CLEANING THE 2ND STAGE FILTER (CARTRIDGE FILTER) Take the cartridges out from the container, and use gas gun or brush to clean the cartridge filter. Steps please refer to the following diagram: STEP 1 FIG 5.3.2 Loose the screws on the lid STEP 2 Loose the cartridge lid from the top lid...

  • Page 10: Circuit Diagram

    vi. PAV-36 CIRCUIT DIAGRAM vii. ROUTINE MAINTENANCE AND INSPECTION 7.1 DAILY MAINTENANCE Two areas need to be clean: the first area is to clean up the 1st filter cartridge and collection bag; the second area is to clean up the cartridge filters. (1) During the operation of the equipment is best to designate a person to clean and maintain all records.
  • Page 11 7.2 TROUBLESHOOTING AND ELIMINATION METHOD PROBLEM POSSIBLE C USE SOLUTION - Phase sequence inversed - Exchange power cord L1 and L2. - Factory voltage fluctuation is too - Factory provides solution VACUUM CLEANER big, cause undervoltage or themselves. DOESN’T WORK overvoltage - Inspect if the motor is still working, - High electricity current cause...

  • Page 12: Main Parts List

    viii. PAV-36 MAIN PARTS LIST – 12 –...
  • Page 13 PART NAME PART NUMBER PART NAME PART NUMBER 8 in. castor PAV0001 26 Bend handrail drive pipe PAV0036 Stainless steel barrel PAV0052 27 VFG-S silicone sealing ring PAV0025 Bagging foundation PAV0053 28 CB motor ring PAV0023 Bottom foundation PAV0054 29 Block plate for barrel mouth PAV0069 4”...

  • Page 14: Technical Parameter

    x. TECHNICAL PARAMETER Model PAV-36 Voltage/Hz 220V/60HZ Power 5.1 HP Airflow 353 CFM Max air pressure 100 in. H2O QTY of 1st stage filters (unit) QTY of 2nd stage filters (unit) Air inlet 2 in. (standard) Noise 82±2dB Filter efficiency Material of 1st filter Anti-static material Material of 2nd Filter...
  • Page 15 Notes – 15 –...
  • Page 16 Pearl Abrasive Co. vacuums are thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship for a period of TWO YEAR from the date of original purchase. Pearl will repair or (at our opinion) replace a product, or part thereof, found by Pearl Abrasive Co.
