Version 201412
This manual shall be read carefully before starting. Directions included in this operation manual
shall be strictly followed.
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:sales@bevsinfo.com

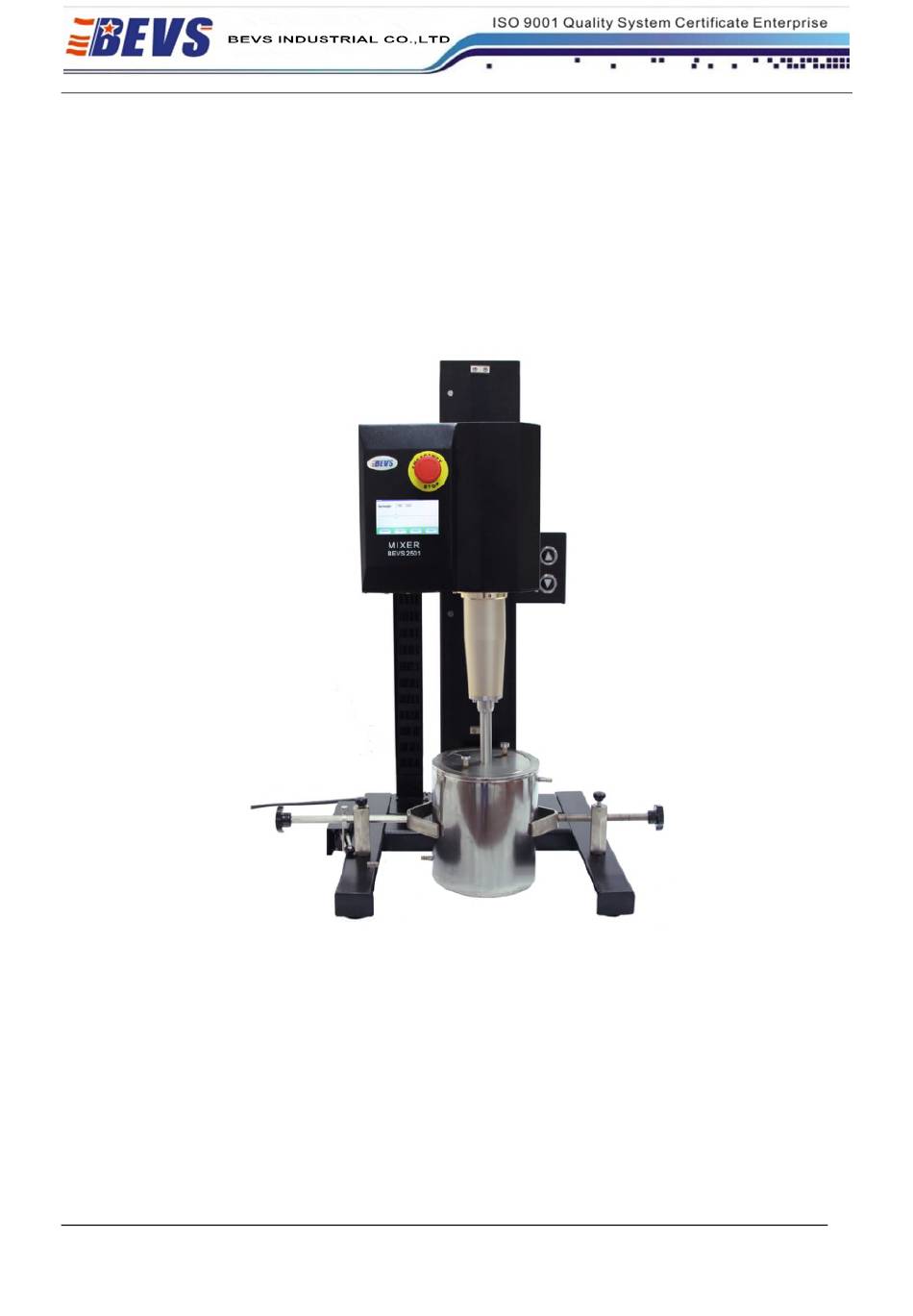

LABORATORY MIXER
BEVS 2501/2A
User Manual
PAGE 1
Http://www.bevsinfo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2501/2A and is the answer not in the manual?

Questions and answers

Related Manuals for BEVS 2501/2A

Summary of Contents for BEVS 2501/2A

  • Page 1 LABORATORY MIXER BEVS 2501/2A User Manual Version 201412 This manual shall be read carefully before starting. Directions included in this operation manual shall be strictly followed. PAGE 1 Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...

  • Page 2: Table Of Contents

    CONTENT 1 COMPANY PROFILE 2 INTRODUCTION 2.1 DESTINATION 2.2 CONSTRUCTION & DIMENSIONS 2.3 TECHNICAL PARAMETERS 2.4 APPLICATIONS 3 INSTALLATION 4 WORKING. 4.1 OPERATION 4.2 TOUCH SCREEN OPERATING 4.3 SYSTEM SETTING 5 SHORT MANUAL INSTRUCTION 6 SAFETY INSTRUCTIONS 7 GUARANTEE 8 PACKING LIST 9 ORDER INFORMATION PAGE 2 Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China...

  • Page 3: Company Profile

    1 Company Profile BEVS Industrial Co., Ltd. is a leading manufacturer that specializes in coatings, ink, painting, resin testing instruments and laboratory whole solution. We offer the complete and unique products in this field to meet customer's challenging demands of today and tomorrow, the products are complied with the standards of ISO, ASTM, DIN, BS, EN etc.
  • Page 4 working shaft lifting switch switch emergency switch Power switch touch screen control panel dispersion disc Safety switch Dispersion disc and fixed way legs vessel holders Touch rod Pen for touching PAGE 4 Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...

  • Page 5: Technical Parameters

    2.3 Technical parameters Parameter Unit Power of engine P=750W , Supply voltage U=220V(one phase).50Hz RPM regulated by frequencer n=60 – 6000 Three dispersion discs d=35, 50, 60,80mm. Steel column with powder coating and wheel Automatic lifting. Lifting distance 280mm Volume of working vessel (vessel with cooling V=1.5 liters.

  • Page 6: Operation

    4.1 Operation Place the vessel between holders, block holders by the screws. 1．Fill the vessel before or after the vessel is placed between holders. 2．Click the lifting switch to move down the working head till blocking ring. 3．Clockwise lock the working shaft. 4．Turn on the main switch.
  • Page 7 forward to reduce the running time. ncrease or reduce time button Setting RPM 4.2.5 Enter Runset menu to quickly set up the time and RPM Please note: Max speed and speed relationship In order to protect the machine, the real speed can't excess the max speed, example: when you set the max speed to 6000 rpm that the real speed is less than 6000 rpm Setting Max speed Setting time...

  • Page 8: System Setting

    Setting height Rise to set height Current height Drop to mini height Adjust setting height Save the setting height 4.2.7 After carefully check everything are ready that can press Run button to start. Can lift by setting ”liftsetup” on the screen, also can lift by the body button Run button 4.3 System Setting...
  • Page 9 3）Turn on or off the Buzz. 4）When turn on the PowerSaving mode, the screen can enter the sleeping mode. 5）When the screen is in sleeping mode, re-switch on the screen under touch the screen several minutes. Select language Change Lum On or off the Buz If select ON when not operate a period of...

  • Page 10: Short Manual Instruction

    5. Short manual instruction 5.1 Dispersion discs changing 5.2 Connector for cooling water 6 Safety Instructions 6.1 Before start always check if the disc is currently fitted to the shaft. 6.2 Always start from 0 RPM. 6.3 Before start always check if the dispersion disc is inside the cup/vessel. 6.4 Always check if cup is currently handled by the holders.

  • Page 11: Packing List

    BEVS 2510/1 Disc（35mm） BEVS 2510/2 Disc（50mm） BEVS 2510/3 Disc（60mm） BEVS 2510/4 Disc（80mm） BEVS 2510/5 Disc（100mm） BEVS 2510/6 Disc（120mm） BEVS 2511/1 Dispersing Vessel（0.5L） BEVS 2511/2 Dispersing Vessel（1.5L） BEVS 2511/3 Dispersing Vessel（3.0L） BEVS 2511/4 Dispersing Vessel（5.0L） PAGE 11 Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China E-mail:sales@bevsinfo.com...
