BEVS 2501/1 Series User Manual

Laboratory mixer
Hide thumbs Also See for 2501/1 Series:
Table of Contents

Advertisement

Quick Links

Version 201412
This manual shall be read carefully before starting. Directions included in this operation manual
shall be strictly followed.
Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China
E-mail:sales@bevsinfo.com

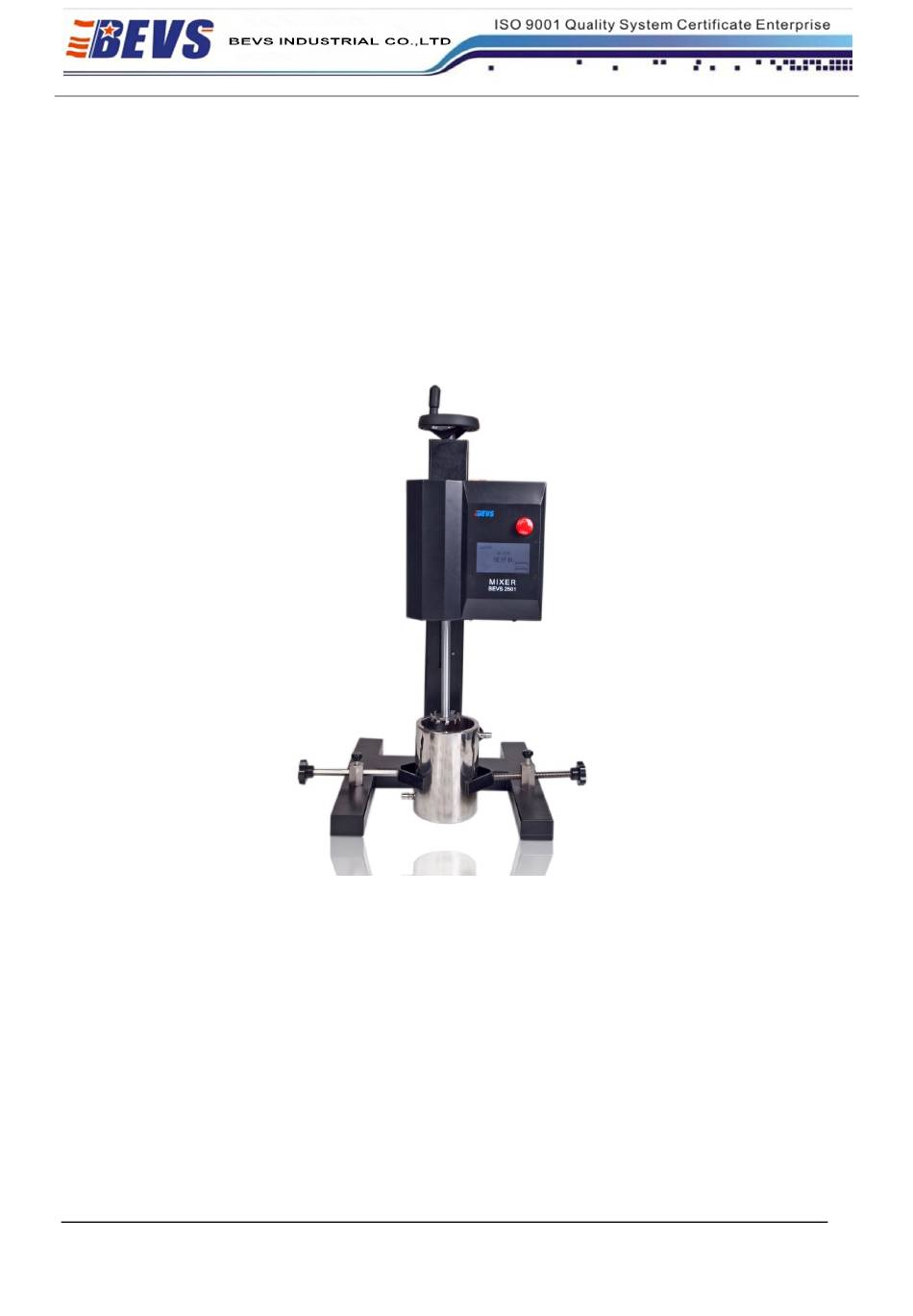

LABORATORY MIXER
BEVS 2501/1
User Manual
PAGE 1
Http://www.bevsinfo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2501/1 Series and is the answer not in the manual?

Questions and answers

Related Manuals for BEVS 2501/1 Series

Summary of Contents for BEVS 2501/1 Series

  • Page 1 LABORATORY MIXER BEVS 2501/1 User Manual Version 201412 This manual shall be read carefully before starting. Directions included in this operation manual shall be strictly followed. PAGE 1 Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...

  • Page 2: Table Of Contents

    Content INTRODUCTION 1.1 DESTINATION 1.2 CONSTRUCTION & DIMENSIONS 1.3 TECHNICAL PARAMETERS 1.4 APPLICATIONS 2 INSTALLATION 3 WORKING. 3.1 OPERATION 3.2 TOUCH SCREEN OPERATING 3.3 SYSTEM SETTING 4 SHORT MANUAL INSTRUCTION 5 SAFETY INSTRUCTIONS 6 GUARANTEE 7 PACKING LIST 8 ORDER INFORMATION PAGE 2 Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China E-mail:sales@bevsinfo.com...

  • Page 3: Introduction

    1 Introduction 1.1 Destination This BEVS2501/1 laboratory mixer has been designed for blending multi – component formulations. It is really helpful device for dispersing small to medium size quantities of varying viscosities. The built in frequencer allows to regulate the RPM of working shaft. The RPM is indicated on touch screen panel.

  • Page 4: Construction&Dimensions

    1.2 Construction&Dimensions manual lifting system emergency switch touch screen control panel working head dispersion disc column working shaft shaft lock pen for touching vessel holders 1.3 Dimension: L 400 x W 430 x H 85 mm PAGE 4 Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China E-mail:sales@bevsinfo.com Http://www.bevsinfo.com...

  • Page 5: Technical Parameters

    Technical parameters Parameter Unit Power of engine P=550W Supply voltage U=220V (one phase). RPM regulated by frequencer n=30 – 9000 Three dispersion discs d=35, 50, 60mm. Steel column with powder coating and wheel Manual lifting. Lifting distance 250mm Volume of working vessel (vessel with cooling V=1.5 liters.
  • Page 6 2．Rotate the wheel to move down the working head till blocking ring. 3．Clockwise lock the working shaft. 4．Turn on the main switch. 5．Enter touch-screen interface to select operation language (Chinese and English). 6．To set up the RMP and mixing time. 7．Click run button to start dispersion.
  • Page 7 ncrease or reduce time button Setting RPM 3.2.5 Enter Runset menu to quickly set up the time and RPM Please note: Max speed and speed relationship In order to protect the machine, the real speed can't excess the max speed, example: when you set the max speed to 7000 rpm that the real speed is less than 7000 rpm Setting Max speed Setting time...

  • Page 8: System Setting

    During working you press Stop button to stop the machine Run button 3.3 System Setting 1）To adjust screen lightness 2）To select the operation language. 3）Turn on or off the Buzz. 4）When turn on the PowerSaving mode, the screen can enter the sleeping mode. 5）When the screen is in sleeping mode, re-switch on the screen under touch the screen several minutes.

  • Page 9: Short Manual Instruction

    4. Short manual instruction 4.1 Dispersion discs changing 4.2 Connector for cooling water 5 Safety Instructions 5.1 Before start always check if the disc is currently fitted to the shaft. 5.2 Always start from 0 RPM. 5.3 Before start always check if the dispersion disc is inside the cup/vessel. 5.4 Always check if cup is currently handled by the holders.

  • Page 10: Order Information

    BEVS 2510/1 Disc（35mm） BEVS 2510/2 Disc（50mm） BEVS 2510/3 Disc（60mm） BEVS 2510/4 Disc（80mm） BEVS 2510/5 Disc（100mm） BEVS 2510/6 Disc（120mm） BEVS 2511/1 Dispersing Vessel（0.5L） BEVS 2511/2 Dispersing Vessel（1.5L） BEVS 2511/3 Dispersing Vessel（3.0L） BEVS 2511/4 Dispersing Vessel（5.0L） PAGE 10 Add: Floor3,Building A,No.257,Junye Road,Huangpu District,Guangzhou,China E-mail:sales@bevsinfo.com...

This manual is also suitable for:

Bevs 2510/1Bevs 2510/3Bevs 2510/4Bevs 2510/5Bevs 2510/6Bevs 2511/2 ... Show all
