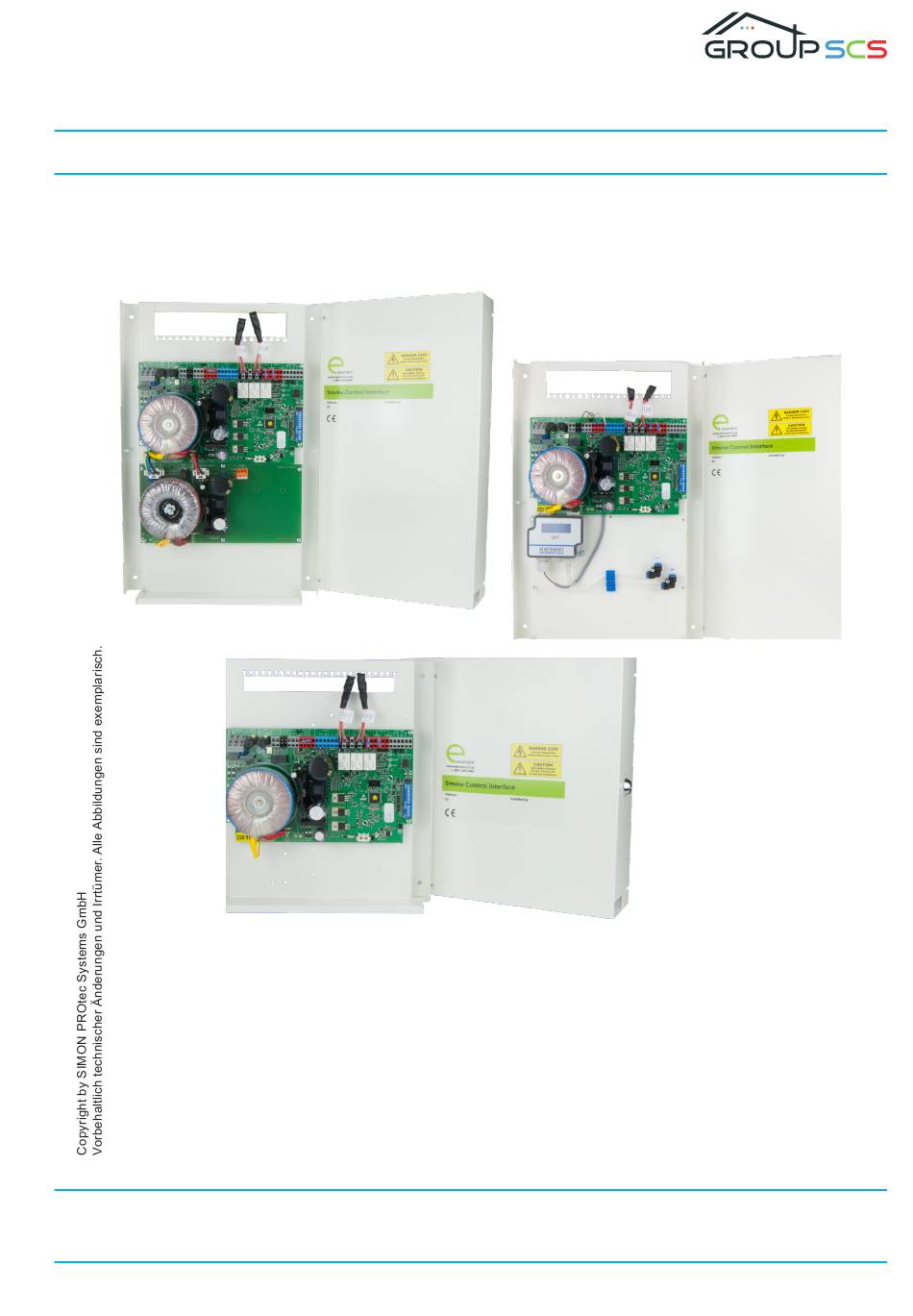

Instruction manual
EV-301 / EV-301-P / EV-601
Smoke Ventilation AOV Control Panel
The supplementary sheet "Safety instructions and Warranty conditions" contains general
SCS_BA_EV-301_601_EN_12
Issue: 1.2 / 0 6.2023
SCS BA EV-301 / EV-301-P / EV-601
and product-specific warnings and the intended use.
This document is invalid without the supplement!
groupscs.co.uk
info@groupscs.co.uk
Date: 31.05.2023
Valid for firmware S1.0.0.12
Advertisement
Table of Contents
Related Manuals for GROUP SCS EV-301
Summary of Contents for GROUP SCS EV-301
- Page 1 Instruction manual EV-301 / EV-301-P / EV-601 Smoke Ventilation AOV Control Panel SCS BA EV-301 / EV-301-P / EV-601 The supplementary sheet “Safety instructions and Warranty conditions” contains general and product-specific warnings and the intended use. This document is invalid without the supplement! groupscs.co.uk...
-
Page 2: Table Of Contents
Control time of the analogue and digital inputs ................... 8 2.16. Technical information for lead acid batteries ....................8 Product description ............................. 9 3.1. Interface panel EV-301 / EV-601 ........................9 3.2. Interface panel EV-301-P ..........................9 Functional specifications ..........................9 4.1. - Page 3 7.9. Gap Ventilation ............................17 Commissioning Instructions ........................18 8.1. Commissioning EV-x01 ..........................18 8.2. Commissioning EV-301-P pressure sensor .................... 19 8.3. Wiring Diagrams ............................20 8.4. Basic Natural Ventilation Topology (SP Mode) ..................21 8.4.1. SP mode data wiring..........................21 8.4.2.
-
Page 4: Dimensions
Dimensions Dimensions 1.1. EV-301 interface panel SCS_BA_EV-301_601_EN_12 groupscs.co.uk Date: 31.05.2023 info@groupscs.co.uk Issue: 1.2 / 0 6.2023 Page 4... -
Page 5: Ev-301-P Interface Panel
Dimensions 1.2. EV-301-P interface panel SCS_BA_EV-301_601_EN_12 groupscs.co.uk Date: 31.05.2023 Issue: 1.2 / 0 6.2023 info@groupscs.co.uk Page 5... -
Page 6: Ev-601 Interface Panel
Dimensions 1.3. EV-601 interface panel SCS_BA_EV-301_601_EN_12 groupscs.co.uk Date: 31.05.2023 info@groupscs.co.uk Issue: 1.2 / 0 6.2023 Page 6... -
Page 7: Technical Information
65 to 70 dB(A) distance 1 m, without housing) Power output 73.5 W (EV-301) (short-term operation) 145 W (EV-601) Type T 3.15 A (EV-301) 2.6. Connection information for Fire Alarm Output fuse for actuators Type T 6.3 A (EV-601) System (FAS) Ripple of the output voltage Vpp ≤... -
Page 8: Connection Information For Wind-, Rain- Detector (Ev-Wrs)
323 × 301 × 85 mm (h × w × d) Size EV-301-MC-P Size EV-301-MC-L 444 × 301 × 85 mm (h × w × d) Size EV-601-MC 4.40 kg (EV-301) 5.30 kg (EV-301-P) Weight (without battery) 6.60 kg (EV-601) 5.20 kg (EV-301-MC-L) -
Page 9: Product Description
2. Emergency power supply 3.2. Interface panel EV-301-P 3. Control electronics The EV-301-P interface panel monitors and powers smoke 4.1. Power supply control ventilators and interface devices. If the EV-x01 is connected to the mains and supplies the... -
Page 10: Control Electronics
Functional specifications 4.3. Control electronics 4.3.5. Operational status indicators (OK, ALARM and FAULT) The complete control of the EV-x01 is by a microcontroller. Three onboard coloured LED’s indicate the status of the panel The control functions consist of: and is repeated on the local EV-HE077 override switches. ●... -
Page 11: General Functions
General Functions General Functions 5.3. FAS Input Signal A fire alarm signal on FAS1 and FAS2 is detected by an open The panel function is configurable by the jumper links JP1. circuit across the terminating resistor. Detecting a fire alarm Jumper Removed Default setting... -
Page 12: List Of Operating Conditions
General Functions 5.7.1. List of Operating Conditions Condition Definition Condition Definition < remote control > Relay controlled by the data bus (mas- Open line 3 Open circuit detected on FAS2 input B2 ter panel). Short circuit line 3 Short circuit detected on FAS2 input B3 Alarm condition on B 1 Override switch input B1 in alarm EV mode... -
Page 13: Sp Mode Functions
SP Mode Functions SP Mode Functions 6.1.3. Lockout The panel enters a lockout mode when a 24V alarm signal 6.1. Alarm Functions is detected on Override Switch A1 terminal from a remote panel when in normal operation with no alarms active. The In the event of a fire alarm or override condition the panel will vent output will automatically lockout CLOSE and ignore all enter an Alarm mode. -
Page 14: Daily Ventilation Mode
SP Mode Functions 6.3. Daily Ventilation Mode 6.3.3. Gap Ventilation function Gap ventilation partially opens the vent by limiting the open The panel will automatically default to Daily Ventilation mode stroke by a timer. The open output power is switched on on start-up or after an alarm reset if all the following condi- only for the programmed time following a daily ventilation tions are met:... -
Page 15: Weather Sensor
SP Mode Functions When all preconditions are met follow this sequence: ¾ Set daily function SW1 to Timed Ventilation Program- ming mode. Ô The onboard FAULT LED will flash to confirm the programming mode is active. ¾ Start the programming time by triggering an open command on input A and the vent opens. -
Page 16: Ev Mode Functions
EV Mode Functions EV Mode Functions 7.5. FAS Alarm An FAS alarm is triggered by a smoke detector or fire alarm 7.1. Start-up input when in normal operation with no other alarms active. For head of stair and head of shaft panels an alarm is On start-up any panel operation is locked out until a valid triggered when a signal is received from a remote panel. -
Page 17: Ev-He077 Commands
EV Mode Functions A manual reset command is triggered by pressing the EV-HE077 override CLOSE (RESET) or the onboard RESET button for > 5 seconds. A reset is also be triggered when a Databus Reset command is received. The automatic reset function can be set by switching on switch SW1 –... -
Page 18: Commissioning Instructions
¾ Connect the cabling as per the relevant diagrams shown in the Wiring Details section. ¾ EV-301-P: Bring the pressure tubing from the top in to the rear of the panel through the cable entry shown in figure 1 (2). Sleeve the tubing to insulate from the PCB board then push in to the fittings (see figure 4 ... -
Page 19: Commissioning Ev-301-P Pressure Sensor
Commissioning Instructions Figure 2: EV-301 fastening points Figure 4: EV-601 fastening points Battery connector X15 Battery connector X15 Figure 3: EV-301-P fastening points 8.2. Commissioning EV-301-P pressure sensor Figure 5 : Pressure sensor Battery connector X15 The pressure sensor is accessible by removing the panel cover and lifting the lid of the pressure sensor. -
Page 20: Wiring Diagrams
Commissioning Instructions 8.3. Wiring Diagrams Figure 6: O verview connectors / DIP-switches / jumpers (simplified representation) DIP Switches SW2 DIP Switches SW1 Addressing (1 – 8) Functions Mains Connection – pole disconnecting main switch on site (L1, N) Head of Shaft / Stair Panel / Shaft Panel SCS_BA_EV-301_601_EN_12 groupscs.co.uk Date: 31.05.2023... -
Page 21: Basic Natural Ventilation Topology (Sp Mode)
Basic Natural Ventilation Topology (SP Mode) LINE LEGEND Power Control Environmental Alarm Link HMI Data EV-WRS Wind Rain Sensor Shaft Stairwell Ventilator Ventilator EV-301 Stair Vent EV-301 Interface Shaft Vent EV-HE077 Panel Interface Stair Panel Override Switch Environmental Environmental Damper... -
Page 22: Wiring Details Sp-Mode
Commissioning Instructions INFORMATION ATTENTION The use of shielded wires is recommended for the detec- For maintenance purposes install an all-pole mains switch tion loops.The insulation resistance must display at least (N, L1) before the panel. 20 MΩ/km. Manufacturer‘s technical information is to be observed when installing the cabling. -
Page 23: Addressable Shaft System Topology (Ev Mode)
Wind Rain Power Control Environmental Sensor EV-ATSB EV-FCB Data Bus HMI Data Sensor Pipe Automatic Master Transfer Control Switch Panel Stairwell Ventilator EV-301 EV-HE077 Stair Vent Stair Interface Override Panel Switch Environmental Environmental Damper Damper Door Opener EV-SD Smoke Ventilator Smoke... -
Page 24: Wiring Details Ev-Mode
Commissioning Instructions 8.5.2. Wiring details EV-Mode Figure 25: AOV / Window Actutator Figure 17: Smoke Detectors AOV Window Actuator EV-SD 24VDC Rev Polarity Motor 1 FAS1 Smoke Detector COM- OUT+ 27KΩ Figure 18: Fire Alarm Interface Closed FAS1 Fire Alarm Interface Figure 26: Head of Stair Vent Head of Stair Vent 27KΩ... -
Page 25: Ev-301-P Pressure Sensor Connections
Notes 8.5.3. EV-301-P Pressure sensor connections The EV-PPMS pressure termination plates are located within the lobby and stairwell measuring differential pressure across the stair access door. 6mm OD copper tubing connects the termination plates to the interface panel via push-fit ports located inside the panel. -
Page 26: Troubleshooting
Troubleshooting Troubleshooting INFORMATION ATTENTION The operational states of the EV-x01 can be visualized Due to the low loop current, the insulation resistance of the with SIMON LINK using a USB300-cable (only during monitored wires (B1, B2 and B3) must be checked! The mains operation). -
Page 27: Appendix
The installer is responsible for the correct assembly or com- Web: www.simon-protec.com missioning, the preparation of the declaration of conformity in 11.5.2. Group SCS accordance with EU regulations and for affixing the CE mar- king. The CE marking must be positioned where it is visible. - Page 28 Notes SCS_BA_EV-301_601_EN_12 groupscs.co.uk Date: 31.05.2023 info@groupscs.co.uk Issue: 1.2 / 0 6.2023 Page 28...
