Summary of Contents for Eskimo ES 605 DW

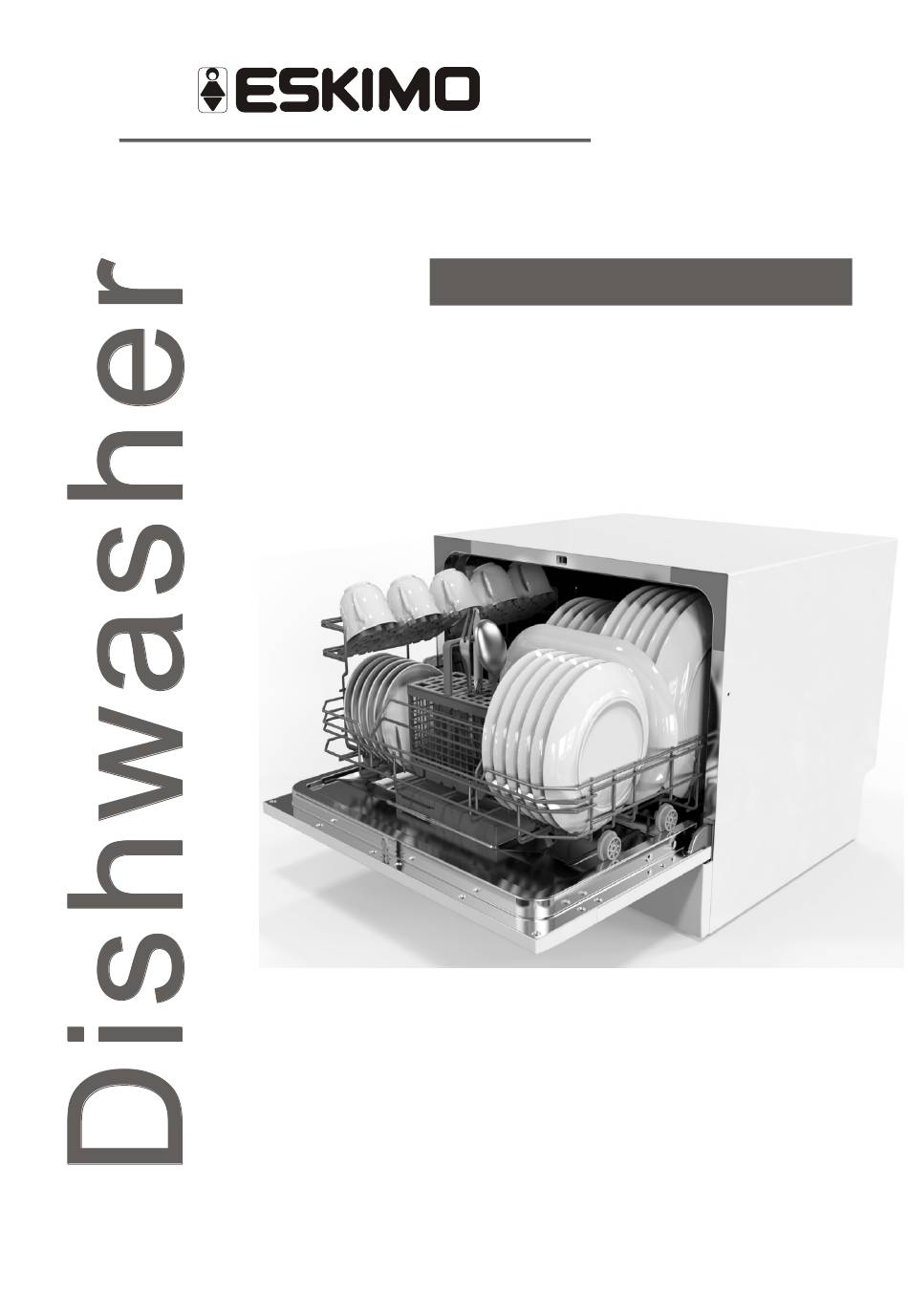

- Page 1 Instruction Manual Instruction Manual ES 605 DW...
-
Page 2: Table Of Contents
Read this Manual 1) Safety Information...........1 1) Safety Information...........1 2) Quick Operation guide...........2 Dear Customer, 3) Operation Instruction........3 3) Operation Instruction........3 Please carefully read this manual before using the dishwasher, it will help you to use and maintain the Control Panel............3 dishwasher properly. -
Page 3: Safety Information
1.IMPORTANT SAFETY INFORMATION 1.IMPORTANT SAFETY INFORMATION When using your dishwasher, WARNING! WARNING! follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses;... - Page 4 EARTHING INSTRUCTIONS This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.
- Page 5 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. Check that the detergent powder is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
- Page 6 Disposal Disposal Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material POM polyoxymethylene, e.g. plastic clips polypropylene, e.g.
-
Page 7: Quick Operation Guide
2.Quick Operation guide 2.Quick Operation guide For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the Power switch button to switch on the appliance, Open the door. Compartment A: Compartment A: For each wash cycle. Compartment B: Fill the detergent dispenser For programs with pre-wash only. -
Page 8: Operation Instruction
3.Operation Instruction 3.Operation Instruction IMPORTANT IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel Control Panel Program indicator lights. Power Button: To turn Power the power supply. Power Light : To be on when the Power Button Washing Program Selector: Press the button is Pressed down. -
Page 9: Prior To Using For The First Time
Prior Prior using for the first time using for the first time NOTE: NOTE: If your model have no water softener, you may skip this section. A. Loading the Salt Into the Softener A. Loading the Salt Into the Softener Always use salt intended for use with dishwasher. -
Page 10: Rinse Aid Dispenser
Step 2: select a certain level of salt consumption Press the button to select the proper set according to your local environment, Start/Reset the sets will change in the following sequence: H1->H2->H3->H4->H5->H6; Step 3: Exit the status of salt adjustment Without any operation in five seconds, the machine will exit from set mode, the machine is into standby status Without any operation in five seconds, the machine will exit from set mode, the machine is into standby status There are 6 levels of salt consumption in all.It is recommended to select the level according to below table:... -
Page 11: Detergent
Function of Rinse Aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. Attention! Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. - Page 12 Normally new pulverised detergent is without phosphate, thus he water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses.
-
Page 13: Loading The Dishwasher Basket
WARNING! WARNING! Dishwasher detergent is corrosive! Take care to keep it out of reach of children. Proper Use of Detergent Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes. Fill in detergent dispenser Fill the detergent dispenser with detergent. -
Page 14: Attention Before Or After Loading The Dishwasher Baskets
Attention before or after loading the Dishwasher Baskets Attention before or after loading the Dishwasher Baskets (For the best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.) Scrape off any large food paritcles. -
Page 15: Cutlery Basket
Cutlery Basket Cutlery Basket Position the dishes and cookware so that they do not get moved by the spray of water. Forks Soup spoons 3 Dessert spoons Teaspoons Knives Serving spoons 7 Gravy ladles Serving forks WARNING! Do not let any item extend through bottom. Always load sharp utensils with the sharp point down! For personal safety and a top quality clean, make sure place the silverware in the basket as follows: For personal safety and a top quality clean, make sure place the silverware in the basket as follows:... -
Page 16: Starting A Washing Programme
6.Starting a washing programme 6.Starting a washing programme Wash Cycle Table Wash Cycle Table Detergent Cycle Selection Running Description Water Energy Rinse Program pre/main Information of Cycle time(min) (Kwh) Pre-wash(50 ) Wash (70 For heaviest soiled crockery, Rinse and normally soiled pots 3/15g Rinse pans dishes etc with dried... -
Page 17: Change The Programme
Change the Programme... Change the Programme... Premise: You can modify the washing program, If the dishwasher just worked for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. in this case, the detergent dispenser must be refilled (see the section entitled "... -
Page 18: Maintenance And Cleaning
7.Maintenance and Cleaning 7.Maintenance and Cleaning Filtering System Filtering System The filter prevent larger remnants of food or other objects from getting inside the pump. The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter). Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain. -
Page 19: Caring For The Dishwasher
Notes: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system.Remove any food remnants and clean the filters under running water. NOTE: NOTE: The entire filter assembly should be cleaned once a week. Cleaning The Filter To clean the coarse filter and the fine filter, use a cleaning brush. -
Page 20: Installation Instruction
Cleaning the Spray Arms The spray arms can be easily removed for periodic cleaning of the nozzles to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded. Grasp the middle of the spray arm, pull it upwards to remove it. -
Page 21: Positioning The Appliance
Positioning the Appliance Positioning the Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. About Power Connection About Power Connection WARNING! -
Page 22: Connection Of Drain Hose
How to Disconnect the safety supply hose Turn off the water. Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severe splashing. Unscrew The safety supply hose from the faucet.. COLD WATER CONNECTION Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. -
Page 23: Start Of Dishwasher
How to Drain Excess Water From Hoses If the sink is more than1000 mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. -
Page 24: Troubleshooting Tips
9.Troubleshooting Tips 9.Troubleshooting Tips Before Calling for Service Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn t Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker tripped. -
Page 25: Error Codes
Problem Possible Causes What To Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. -
Page 26: Technical Information
Technical Information Technical Information... - Page 27 Technical Data Sheet Sheet of household dishwasher according to EU Directive 1059/2010: Manufacturer ESKIMO Type / Description ES 605 DW Standard place settings Energy efficiency class Annual energy consumption 174 kWh Energy consumption of the standard cleaning cycle 0.61 kWh Power consumption of off-mode 0.49 W...
