axing basic-line SPU 54-05 Operation Instructions page 4

Field of application:
The devices are suited only for distributing radio and television signals
in the house! If a device is used for other purposes, no warranty is
given!

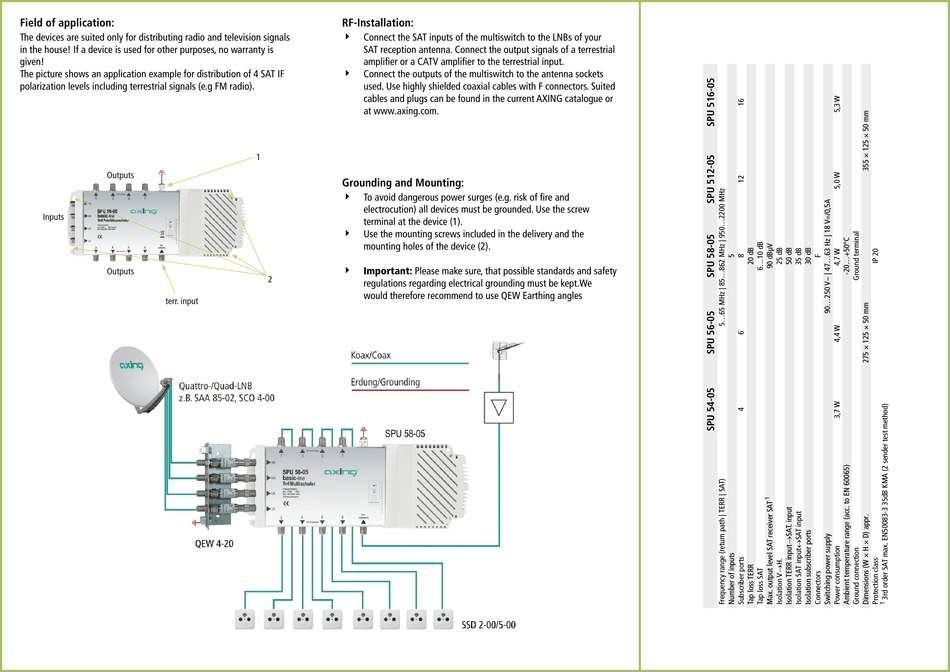

The picture shows an application example for distribution of 4 SAT IF
polarization levels including terrestrial signals (e.g FM radio).
Outputs
Inputs
Outputs
terr. input
RF-Installation:
4
Connect the SAT inputs of the multiswitch to the LNBs of your
SAT reception antenna. Connect the output signals of a terrestrial
amplifier or a CATV amplifier to the terrestrial input.
4
Connect the outputs of the multiswitch to the antenna sockets
used. Use highly shielded coaxial cables with F connectors. Suited
cables and plugs can be found in the current AXING catalogue or
at www.axing.com.
1
Grounding and Mounting:
4
To avoid dangerous power surges (e.g. risk of fire and
electrocution) all devices must be grounded. Use the screw
terminal at the device (1).
4
Use the mounting screws included in the delivery and the
mounting holes of the device (2).
4
Important: Please make sure, that possible standards and safety
2
regulations regarding electrical grounding must be kept.We
would therefore recommend to use QEW Earthing angles
